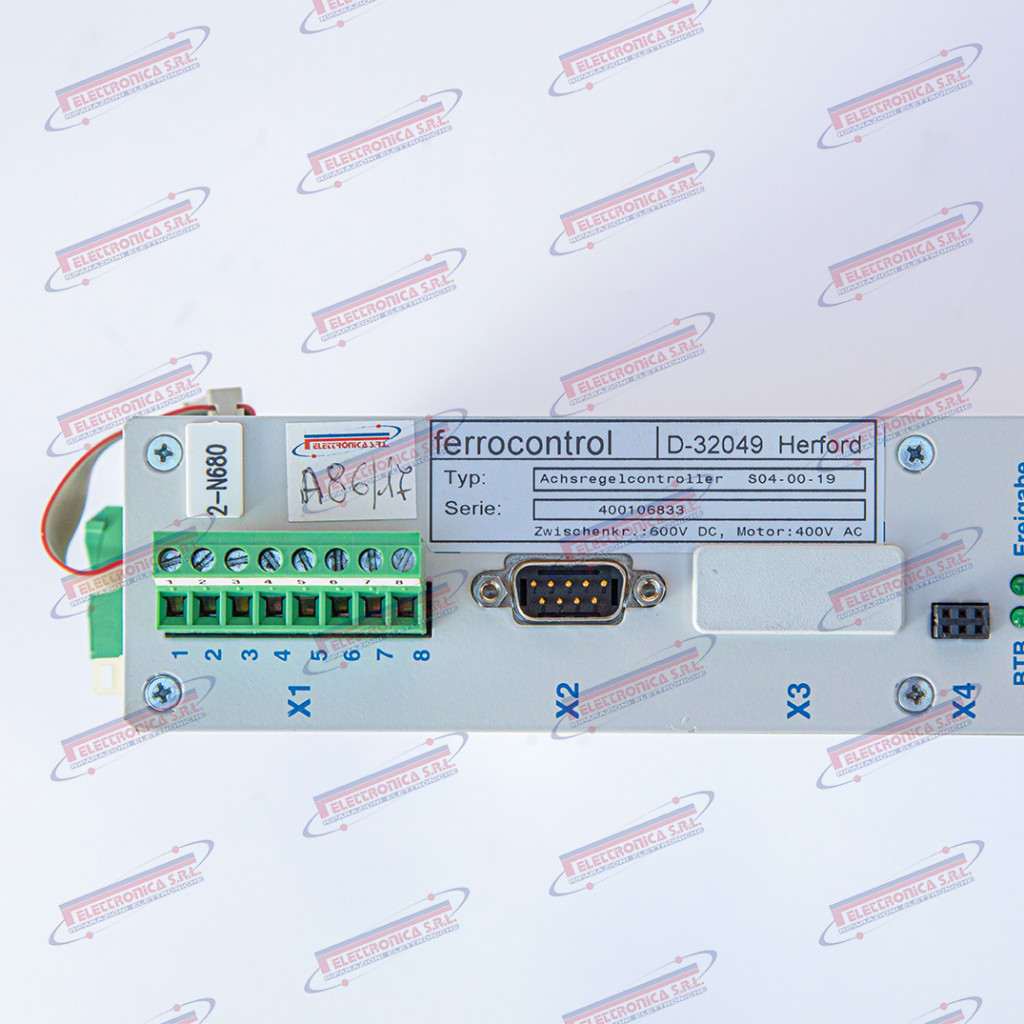

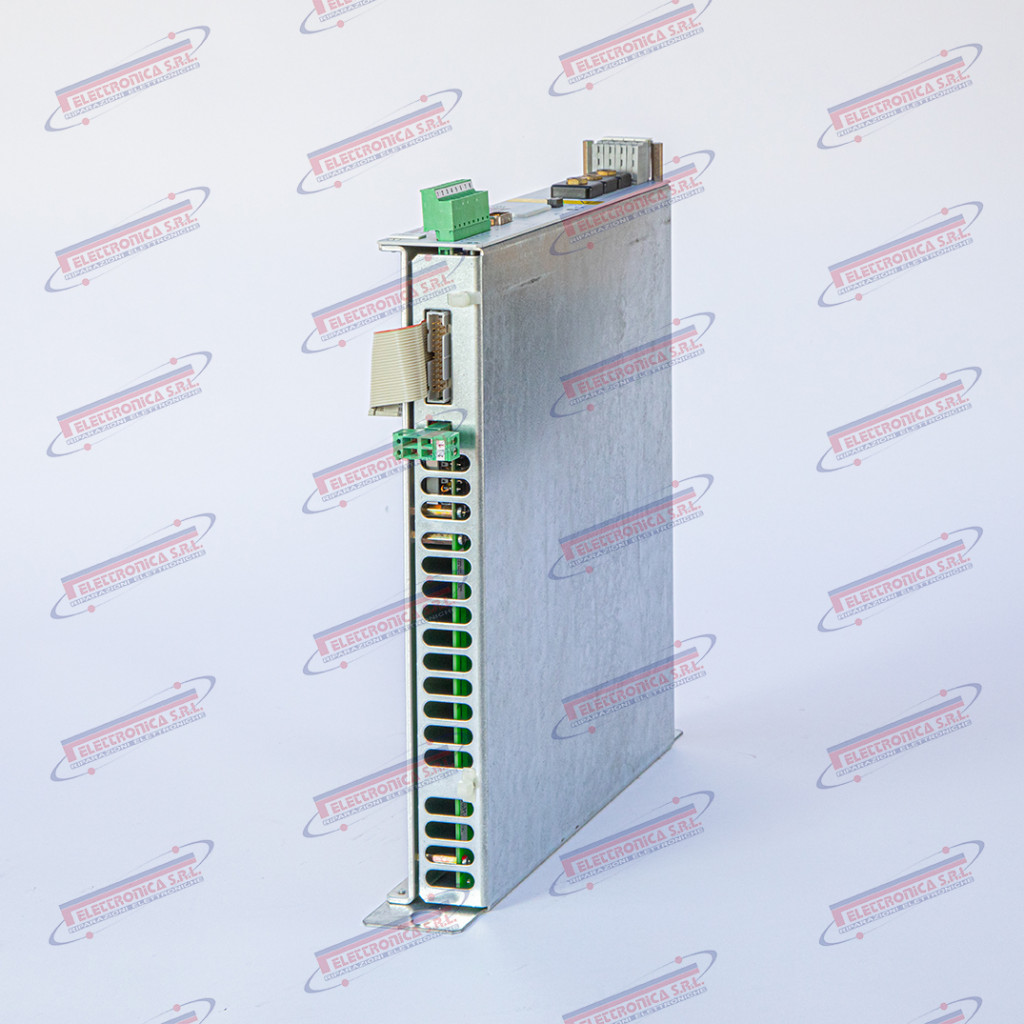

Servo Axis Drive – FERROCONTROL S04-00-19
The S04-00-19 is a servo axis drive module (“Servo Axis Drive”) manufactured by FERROCONTROL, designed for use in FERROCONTROL E°CNC systems fitted to CNC machining centres for wood, panel, glass and stone processing. The module controls servo-driven axes by managing the current and velocity loops of the connected servo motor. The full part reference is S04-00-19 (internal code S040019).
The servo axis drive is the heart of the machine’s positioning system: it converts the CNC controller’s position and velocity commands into motor drive currents, closing the feedback loop via encoder or resolver. A drive failure immediately halts the affected axis, making any machining operation impossible until the module is replaced or repaired.
FERROCONTROL Steuerungssysteme GmbH & Co. KG is a German manufacturer based in Herford, specialising in CNC systems for the wood and panel processing industry. Its E°CNC systems are fitted to machines from many leading sector OEMs including Holzma, Weeke and Brandt. FERROCONTROL is part of the HOMAG Group. Spares for older systems are legacy / discontinued and available only through specialist channels or repair services.
Main Technical Specifications
| Type | Servo axis drive module |
| Part number | S04-00-19 (S040019) |
| Brand | FERROCONTROL (HOMAG Group) |
| Known application | FERROCONTROL E°CNC systems on machining centres for wood, panel and glass processing |
| Function | Servo axis position and velocity control; motor current/speed loop management |
| Supply voltage | 24 V DC (logic); power stage typically 230/400 V AC or DC bus |
| Rated current | To be confirmed from specific datasheet |
| Interfaces | Internal CNC bus (typically CAN or proprietary FERROCONTROL serial); encoder/resolver feedback connectors; power terminals |
| Feedback signals | Incremental encoder or resolver (typical); diagnostic signals to CNC controller |
| Weight | ~0.5–2.0 kg |
| Dimensions | ~100–300 mm |
| Production status | Legacy / discontinued — used/surplus/repair only |
