Monitor

12” LCD OKUMA Replacement Monitor – TOI12LB1-A248

The TOI12LB1-A248 is a 12-inch industrial LCD monitor (“12” LCD CNC Monitor”) designed as a direct replacement for the CRT monitors fitted to OKUMA operator panels and control systems, as well as other CNC machine tools. The unit accepts multiple analogue video formats (RGB, CGA, EGA, VGA, RGBS) to ensure compatibility with legacy CNC controllers from various generations. The CCFL- or LED-backlit LCD panel delivers a sharper, brighter image than the original cathode-ray tube, with a significantly longer service life and no geometric drift. The main part number is TOI12LB1A248; the commercial alternative code is TOI12LB1-A248.

The monitor is the visual interface through which the operator interacts with the numerical control unit: it displays part programs, machine parameters, diagnostic data, active alarms, and axis status. Replacement becomes critical when the original CRT degrades (blurred image, loss of brightness, distorted geometry, or exhausted tube): without a functioning display the operator cannot verify the part program or acknowledge and reset alarms, rendering the machine completely inoperable.

This is a TOI-series LCD retrofit monitor, specifically configured for plug-and-play replacement of obsolete CRTs on OKUMA controls (and compatible with many other CNC systems). This model is considered legacy / discontinued through standard channels; availability is limited to remaining stock, used units, or reconditioned assemblies.

Main Technical Specifications

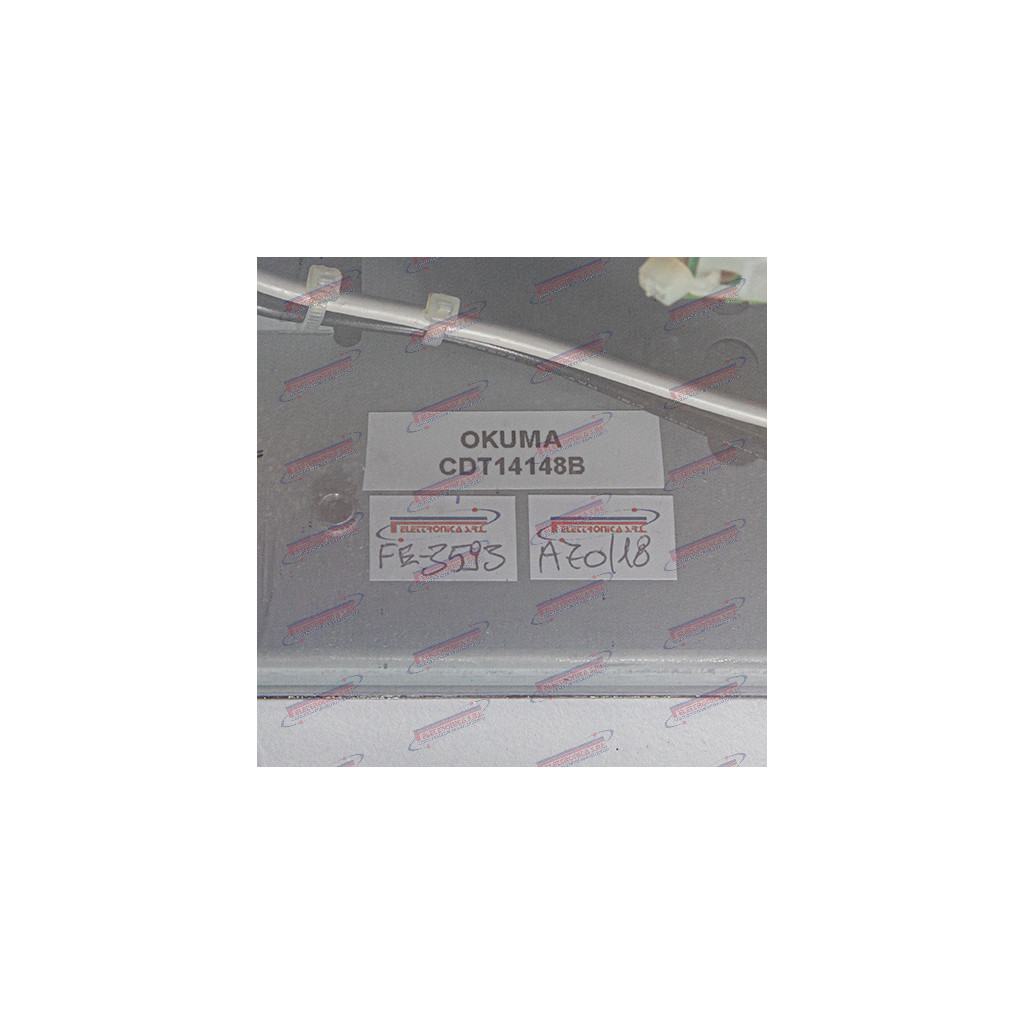

14” Colour CRT Monitor – OKUMA CDT14148B

The CDT14148B is a 14-inch colour CRT monitor (“14-inch Colour CRT Display”) manufactured for OKUMA CNC systems, documented as the operator panel display unit for controls in the OSP (Open System Platform) series. The monitor provides the visual interface between the numeric control and the operator, displaying NC programs, machine parameters, diagnostic screens, and alarm messages. It is a colour cathode-ray tube (CRT) monitor with a 14-inch 4:3 screen, designed for integration into the machine tool operator panel.

The operator panel monitor is the primary interface between the operator and the CNC control: without a working display it is impossible to access machining programs, diagnostic functions, or machine parameters. A monitor failure renders the machine completely inoperable, blocking any interaction with the numeric control, including programming, tool offset verification, and safety alarm monitoring.

OKUMA Corporation is one of the world’s largest and most established Japanese CNC machine tool manufacturers, founded in 1898 in Nagoya; it is among the few builders that develop both the machines and their own proprietary CNC controls (OSP – Open System Platform series) in-house. CRT monitors in the CDT14148B family are legacy / discontinued components: the transition away from CRT technology has made new units unavailable; replacement parts are obtainable only as used, NOS, or through conversion to a compatible LCD monitor.

Main Technical Specifications

10-Inch Monochrome CRT Monitor – OKUMA MDT-1005

The MDT-1005 is a 10-inch monochrome CRT display unit (“Monochrome CRT Display Unit”) manufactured by OKUMA, documented as the operator display for the OKUMA OSP 500 CNC control system. The screen constitutes the human-machine interface (HMI) of the CNC panel, showing machining parameters, programming pages, alarm messages, and machine diagnostics. The tube is a monochrome green-phosphor CRT, typical of 1980s–1990s CNC technology. This component was fitted to OKUMA lathes and machining centres equipped with the OSP 500 control.

The CRT monitor is the display unit that makes the CNC operator interface accessible: without it, the operator cannot read programs, machining parameters, tool offsets, or alarm messages. A faulty monitor renders the machine operationally blind — no cycles can be started, no adjustments made, and no faults diagnosed, resulting in an immediate production stoppage.

OKUMA Corporation is a Japanese manufacturer founded in 1898, a world leader in CNC machine tools (lathes, machining centres, grinders) and proprietary control systems. The OSP 500 control belongs to a legacy generation from the 1980s–1990s; the MDT-1005 monitor is legacy / discontinued: available only as used stock, surplus, or through specialist repair.

Main Technical Specifications

10″ LED Monitor – OKUMA OSP50X0-LED

The OSP50X0-LED is a 10-inch LED display panel for CNC operator panels (“10″ LED Operator Panel Monitor”) manufactured by OKUMA, designed as a replacement display unit for OKUMA OSP-5000 series CNC controls (OSP-5000L, OSP-5000M, OSP-5020L, OSP-5020M and variants). The display uses LED-backlit LCD technology as a modern drop-in replacement for aging original CRT monitors or fluorescent-backlit (CCFL) panels. The designation OSP50X0-LED indicates cross-compatibility with the full OSP-50x0 control family, where “X” covers the different machine variants (OKUMA lathes, machining centres, and grinding machines).

The operator panel monitor is the sole visual interface between the operator and the CNC system: it displays the active NC program, axis position readouts, tool offsets, machining parameters and all machine diagnostic alarms. Without a functional display the operator cannot read machine status, modify parameters or interpret alarms, making the CNC lathe or machining centre effectively unusable in production.

OKUMA Corporation is a Japanese machine tool manufacturer founded in 1898 in Nagoya, specialised in CNC lathes, vertical and horizontal machining centres, grinding machines and entirely in-house developed control systems. The OSP (Open Systems Platform) control platform is well known for its high reliability and long operational life. Components for the now-dated OSP-5000 series are available as spare parts in limited quantities and may require significant lead times to source.

Main Technical Specifications

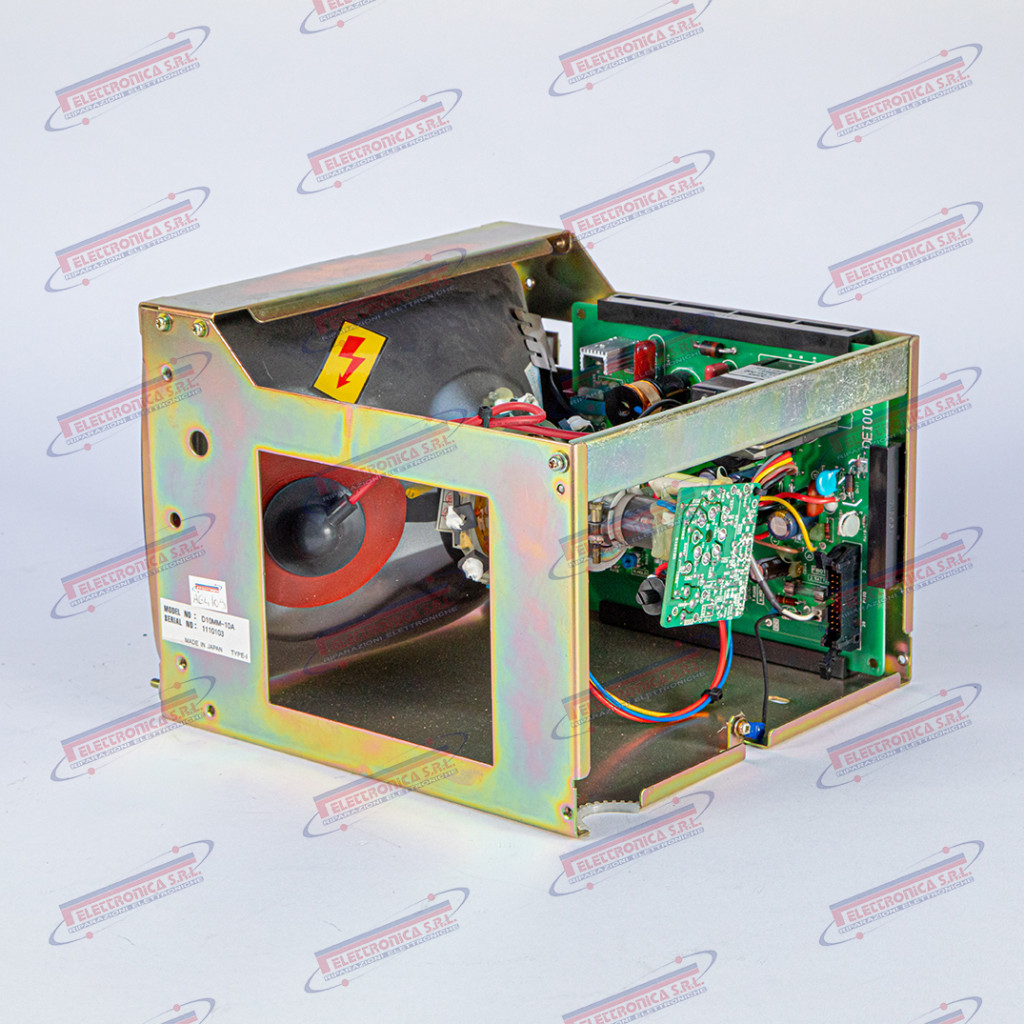

10″ Monochrome Monitor – OKUMA D10MM-10A

The D10MM-10A is a 10″ industrial monochrome CRT display unit (“10-inch Monochrome CRT Display Unit”) manufactured by OKUMA, documented as the operator display for the OSP 500 (Open System Platform 500) CNC control. The unit renders the operator interface, part programs, alarm messages and machine axis coordinates on a monochrome phosphor cathode-ray tube. It is fitted on OKUMA CNC lathes and machining centres equipped with the OSP 500 control; hardware revisions may differ in connector type or internal display controller firmware version.

The monitor is the primary visual interface between the operator and the OSP 500 CNC control: it displays part programs, machining parameters, alarms and real-time axis positions. A failed display makes machine supervision and command entry impossible, effectively halting production; on controls of this generation, replacement with an identical or compatible unit is typically the only practical solution, as proprietary-format industrial CRTs do not accept generic direct substitutes.

OKUMA Corporation is a Japanese CNC machine tool builder founded in 1898, headquartered in Oguchi, Aichi. A pioneer in the vertical integration of its own OSP (Open System Platform) controls, OKUMA remains fully independent and active with the current OSP-P300 generation. The OSP 500 control and all associated peripheral components — including this monitor — are legacy / discontinued: available only as used/surplus (NOS) or through specialist repair services.

Main Technical Specifications

14” LED LCD Monitor for CNC – OKUMA CDT14-LED

The CDT14-LED is a 14-inch LED-backlit flat-panel LCD monitor (“14-inch LED LCD Flat Panel Monitor”) manufactured by OKUMA, designed for installation on OKUMA CNC machining centres and turning centres equipped with the proprietary OSP (Open System Platform) numerical control. The unit is a direct replacement for the older cathode-ray tube (CRT) displays fitted to the same machines, maintaining mechanical and electrical compatibility with the original operator panel. It is available with standard VGA video input and industrial power supply; some variants support composite video input. The alternative part number is listed in the table below.

The monitor is the primary visual interface between the operator and the CNC controller: it displays machining programmes, machine parameters, active alarms, axis positions and cycle status. A faulty display or a degraded backlight makes it impossible to read process information, forcing an immediate machine stoppage; rapid replacement with a compatible unit is often the only alternative to extended downtime.

OKUMA Corporation is a Japanese machine tool manufacturer founded in 1898, one of the world’s leading producers of CNC lathes, vertical and horizontal machining centres and integrated manufacturing systems. OKUMA is one of the very few companies in the sector to develop both its machine tools and its own proprietary CNC controller (OSP) in-house, ensuring complete hardware and software integration. Display spare parts for machines with older-generation OSP controls are legacy / no longer in current catalogue and are available primarily as surplus, used, or through suppliers specialising in display retrofit and conversion.

Main Technical Specifications
