MITSUBISHI Servo Drive
Brand: MITSUBISHI -
Cat: Servo Drive

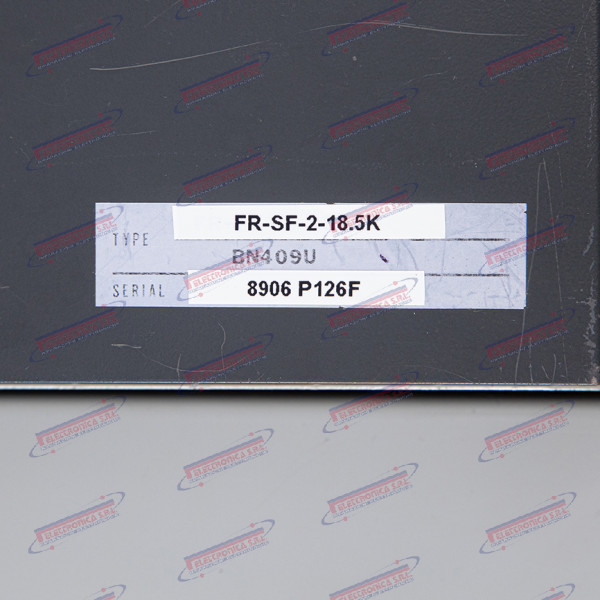

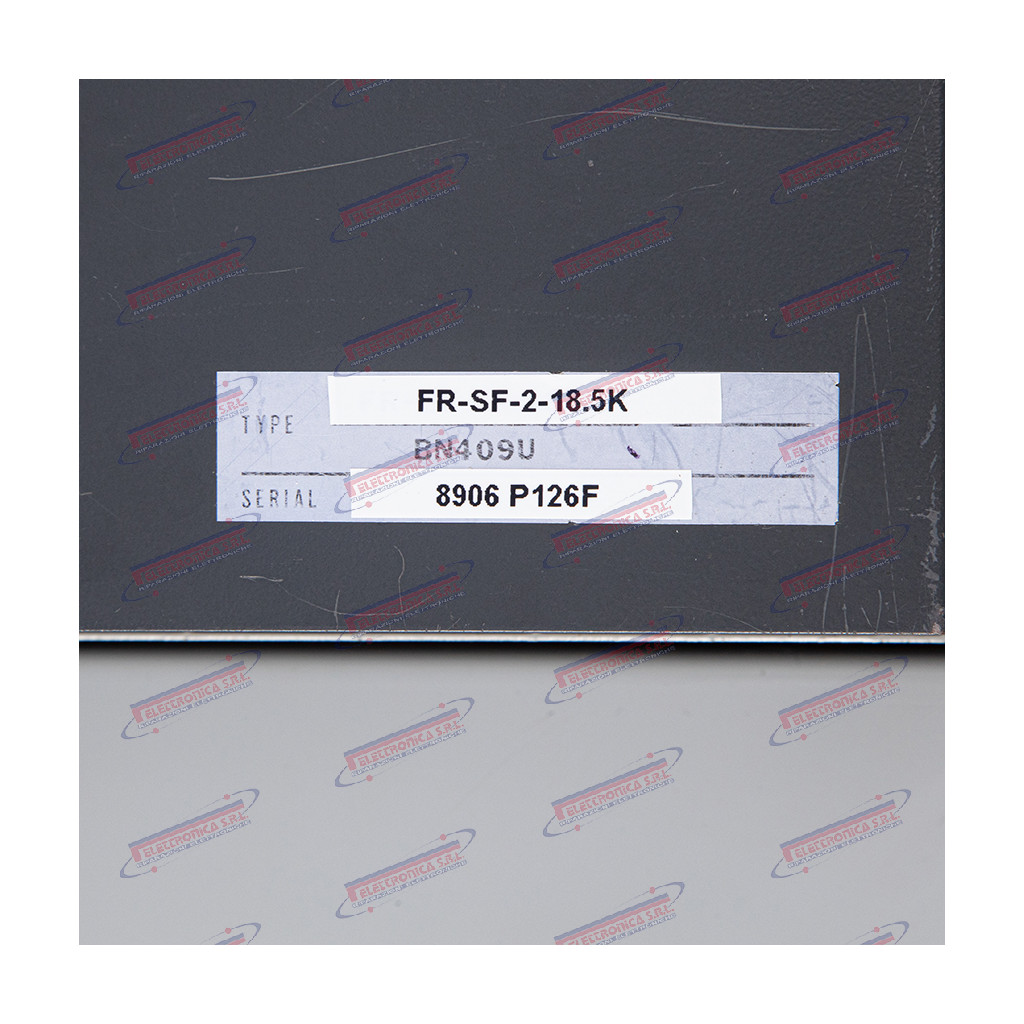

Code:FR-SF-2-18.5K
| Combination name | Availability | Price |
|---|---|---|

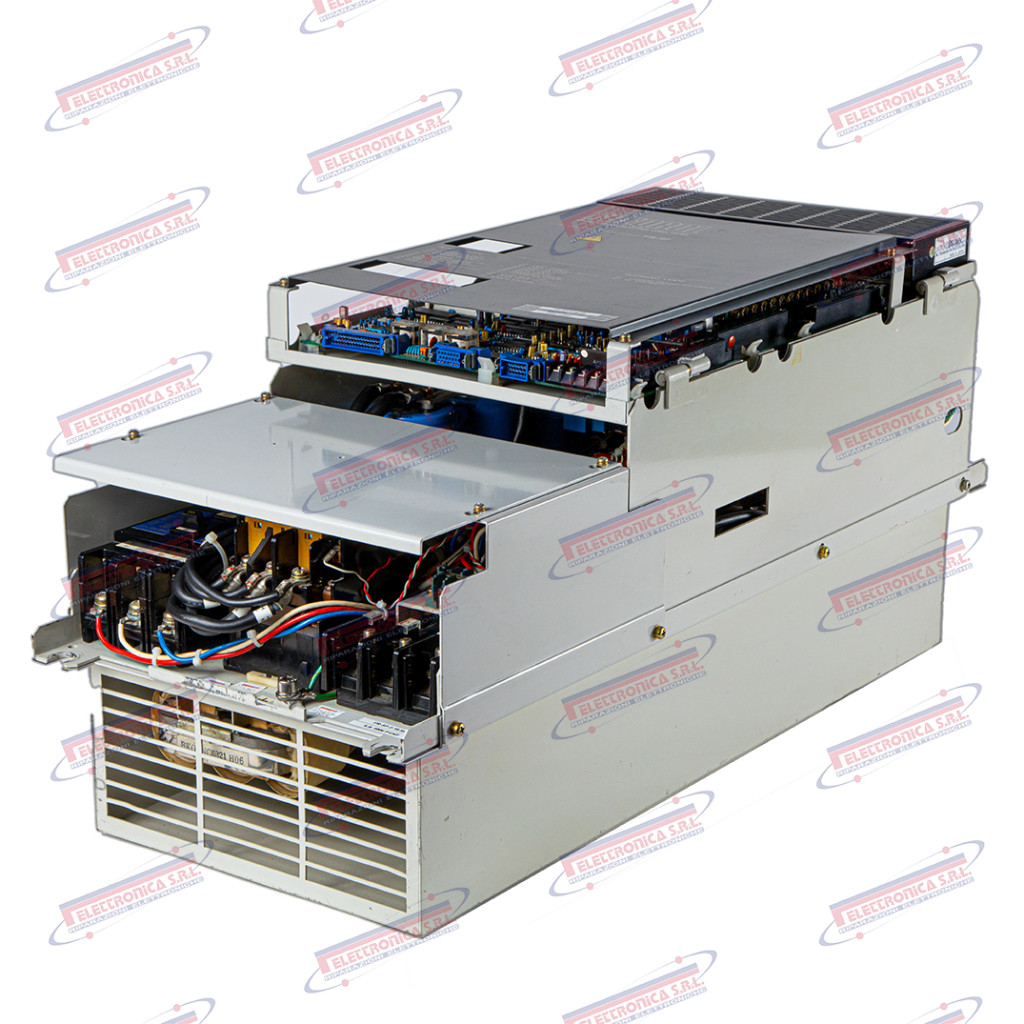

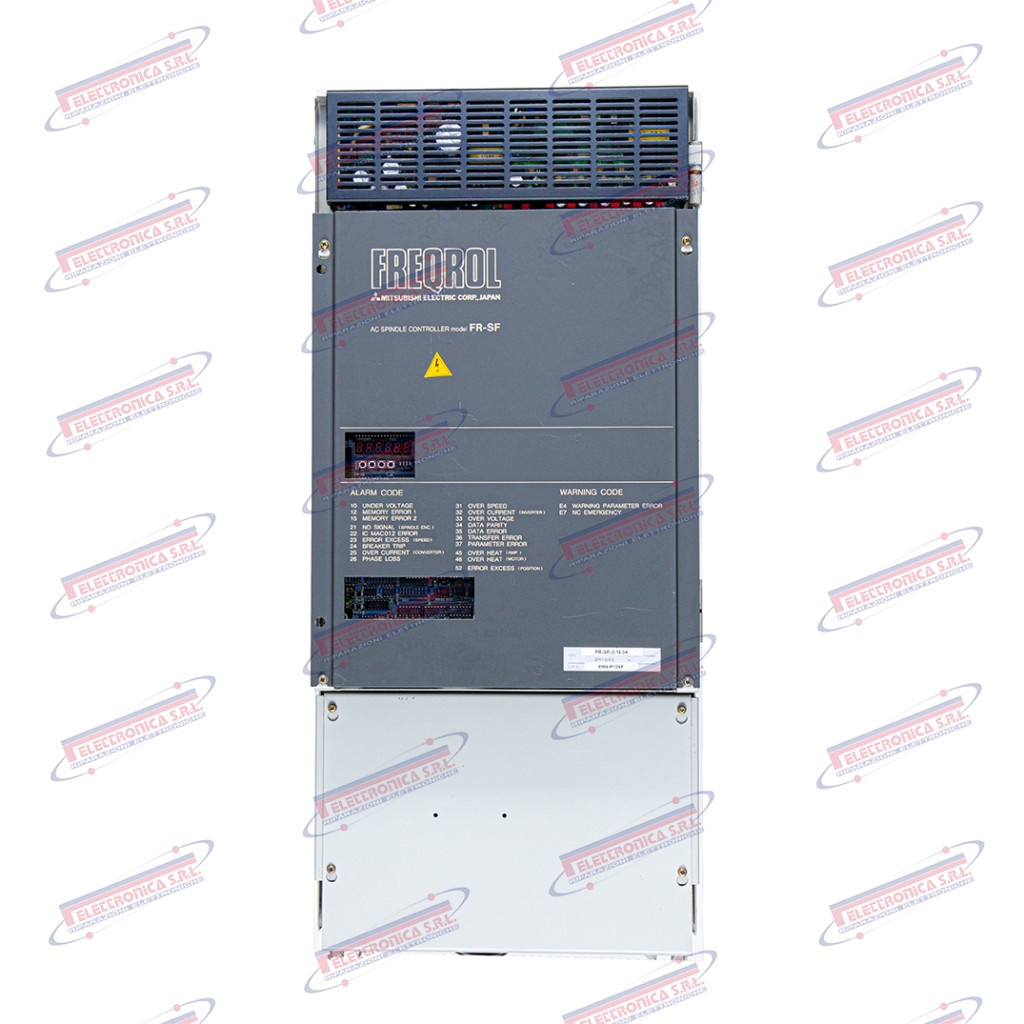

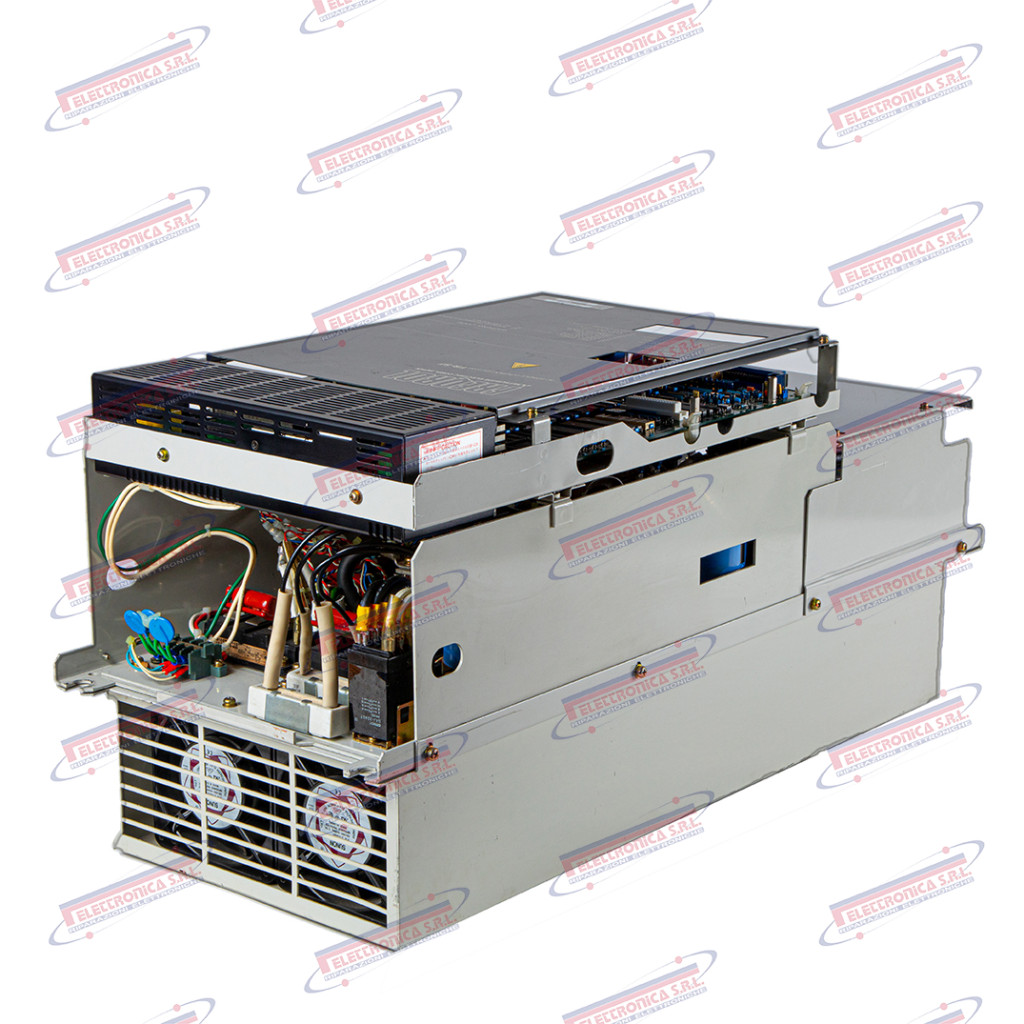

AC Spindle Drive 18.5 kW – Mitsubishi FR-SF-2-18.5K
The FR-SF-2-18.5K is an AC spindle drive (“AC Spindle Drive”) rated at 18.5 kW, 200 V class, manufactured by Mitsubishi Electric in the FR-SF series (FREQROL-SF). Designed specifically for AC spindle motor control in CNC machine tools — machining centres, CNC lathes, milling machines — it handles spindle speed and torque regulation over a wide speed range with high precision. The unit is compatible with Mitsubishi MELDAS CNC systems and third-party controllers via analogue (±10 V) and serial interfaces; it also supports spindle orientation for automatic tool changes and drilling cycles.
The spindle drive converts fixed-frequency three-phase mains power into variable voltage and frequency to drive the spindle motor at the speed commanded by the CNC: it interprets the analogue or digital speed reference and maintains stable, precise rotation under varying cutting loads. If the unit fails, the spindle stops or loses speed control, making any cutting operation impossible and risking damage to the workpiece or the machine itself.
Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation systems, inverters and CNC controllers, with roots in the Mitsubishi group dating back to 1921; the FREQROL inverter line is globally distributed and is a recognised standard in machine tool automation. The FR-SF series is legacy / discontinued: superseded by newer series (FR-SF-4R, FR-A800 etc.), it is available on the market only as used, NOS surplus or through specialist repair services.
Main Technical Specifications
| Type | AC spindle drive (AC Spindle Drive) |
| Part number | FR-SF-2-18.5K (FRSF2185K) |
| Brand | Mitsubishi Electric – FREQROL FR-SF series |
| Known application | CNC machine tools: machining centres, CNC lathes, milling machines with AC spindle motor; compatible with Mitsubishi MELDAS CNC |
| Function | AC spindle motor speed and torque regulation; spindle orientation |
| Rated power | 18.5 kW |
| Input voltage | Three-phase 200–230 V AC, 50/60 Hz (±10%) |
| Output voltage | 0–230 V AC three-phase (proportional to input) |
| Rated output current | ~58–70 A |
| Output frequency range | 0–400 Hz (typical FR-SF series) |
| Interfaces / connectors | Power terminal block; signal terminal strip; analogue input ±10 V; serial RS-422/RS-485; encoder/resolver feedback from motor |
| Weight | ~10–16 kg |
| Dimensions (W×H×D) | ~220–260 × 450–550 × 180–220 mm |
| Production status | Legacy / discontinued — used, NOS surplus or specialist repair only |
