FANUC Color Monitor 14"
Brand: FANUC -
Cat: Monitor
Code:A61L-0001-0096
| Combination name | Availability | Price |
|---|---|---|
14″ Colour CNC Monitor – FANUC A61L-0001-0096
The A61L-0001-0096 is a 14″ colour CRT monitor (“14-inch Colour CRT Monitor”) manufactured by FANUC, documented as a display component for FANUC CNC Series 0, 15, 16, 18 and 21 systems installed on machining centres, CNC lathes and milling machines. The monitor handles the display of the operator interface: part programs, machine parameters, alarm messages and system diagnostics. Display technology is CRT (Cathode Ray Tube) colour; the video signal is supplied directly from the CNC unit via a dedicated connection. Variants may exist with different internal revisions of the deflection circuit or connector configurations.
The operator monitor is the primary visual interface of the CNC system: it displays in real time the machining programs, machine parameters, active alarms and axis status. Without a working monitor the operator cannot program, modify parameters, read alarms or carry out any diagnostic operation, making the machine completely inoperable regardless of the condition of all other components.
FANUC (Fuji Automatic NUmerical Control) is the world’s leading manufacturer of CNC systems, servo motors, industrial robots and factory automation, founded in Japan in 1956. The A61L series monitors belong to a generation of CNC peripherals now legacy / discontinued, replaced in modern installations by LCD flat panel displays; availability is limited to the used market and specialist repair services.
Main Technical Specifications
| Type | 14″ colour CRT monitor for CNC systems |

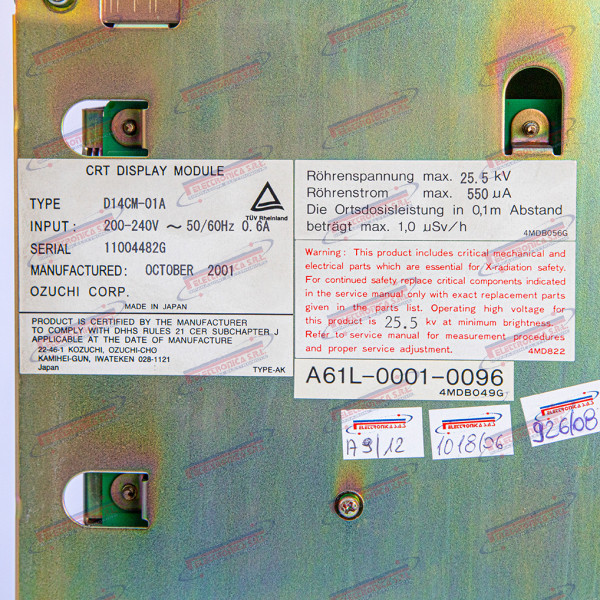

| Part number | A61L-0001-0096 (A61L00010096) |
| Brand | FANUC |
| Known application | FANUC CNC Series 0, 15, 16, 18, 21 — machining centres, CNC lathes, milling machines |
| Function | Operator visual interface (HMI): display of part programs, machine parameters, alarms, diagnostics |
| Display technology | CRT (Cathode Ray Tube) colour |
| Screen diagonal | 14″ (approx. 355 mm) |
| Resolution | ~640 × 480 pixels |
| Power supply | ~100–240 V AC, 50/60 Hz |
| Video interface | Dedicated FANUC video connector; TTL RGB or analogue signal |
| Weight | ~12–18 kg |
| Dimensions (W × H × D) | ~370–420 × 340–380 × 400–450 mm |
| Production status | Legacy / discontinued — used/surplus/repair only |
