FANUC

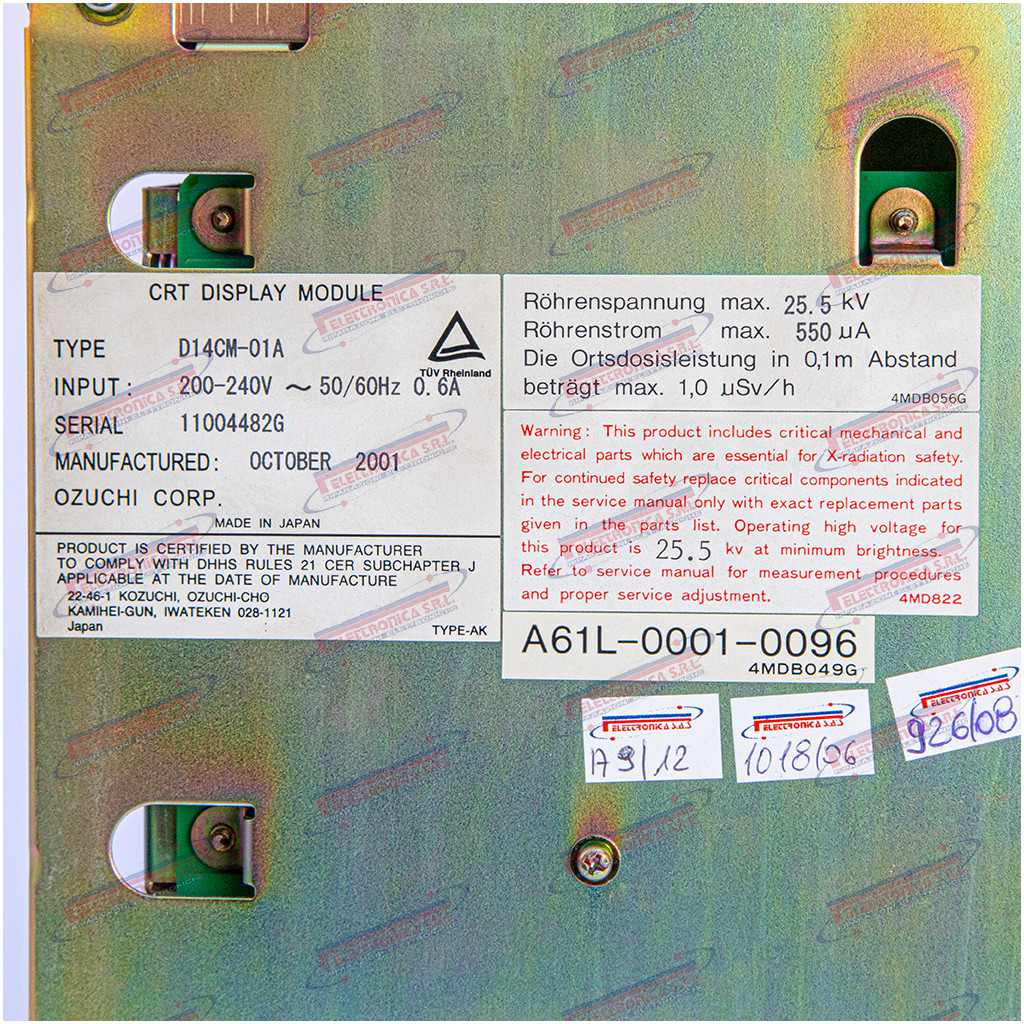

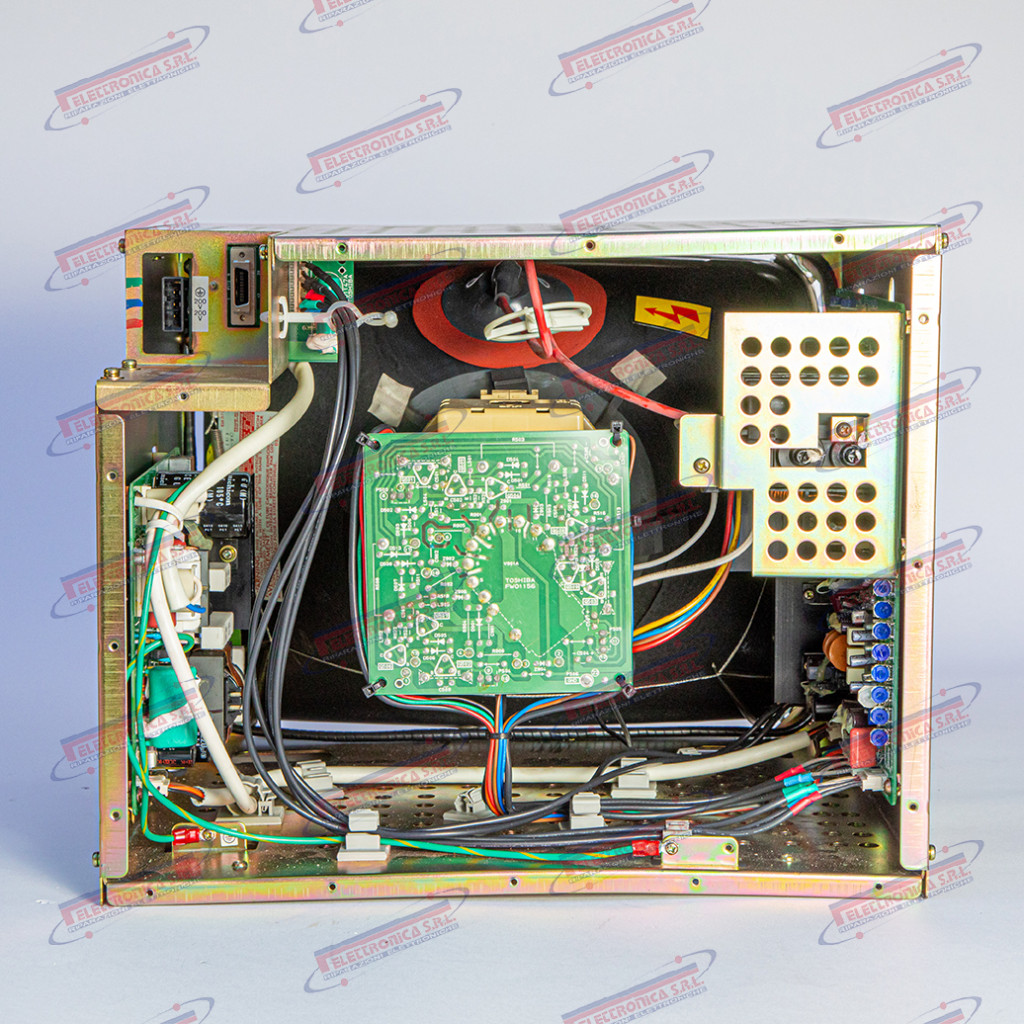

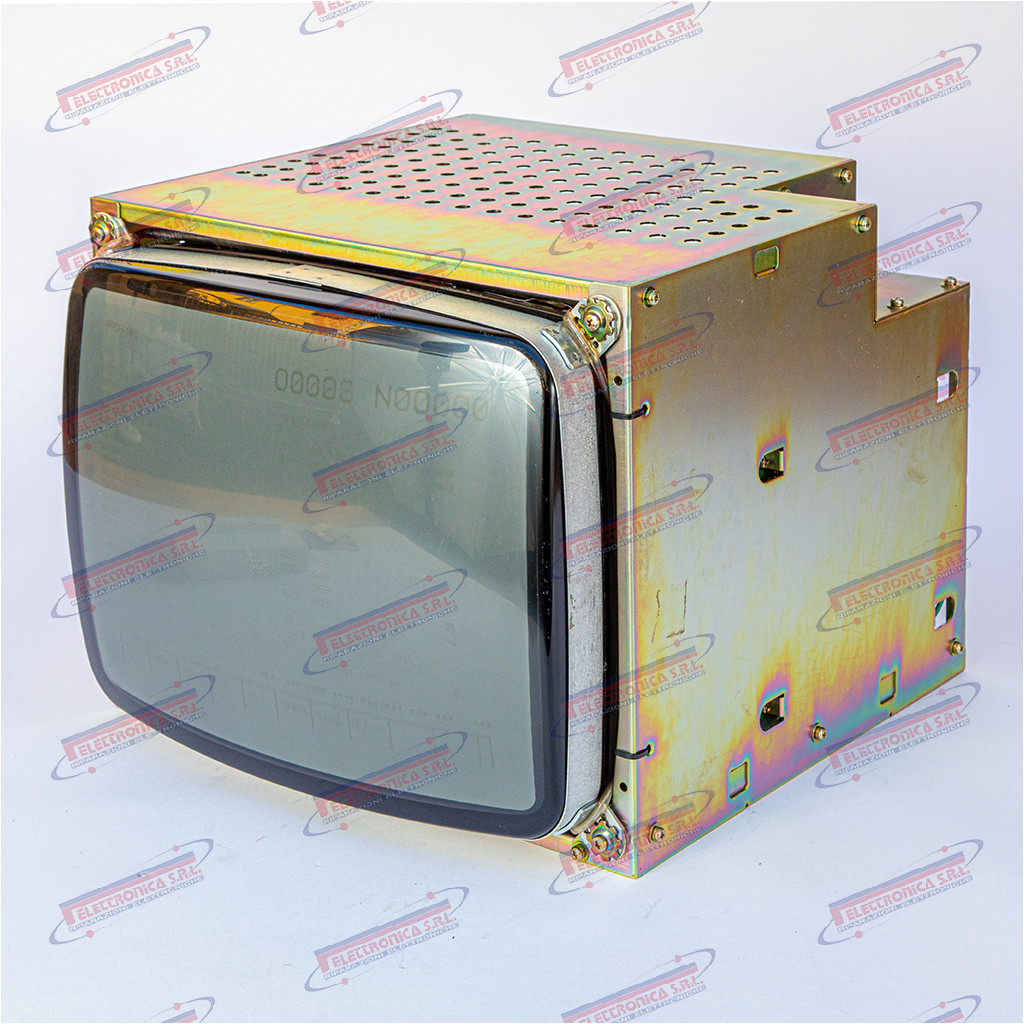

14″ Colour CNC Monitor – FANUC A61L-0001-0096

The A61L-0001-0096 is a 14″ colour CRT monitor (“14-inch Colour CRT Monitor”) manufactured by FANUC, documented as a display component for FANUC CNC Series 0, 15, 16, 18 and 21 systems installed on machining centres, CNC lathes and milling machines. The monitor handles the display of the operator interface: part programs, machine parameters, alarm messages and system diagnostics. Display technology is CRT (Cathode Ray Tube) colour; the video signal is supplied directly from the CNC unit via a dedicated connection. Variants may exist with different internal revisions of the deflection circuit or connector configurations.

The operator monitor is the primary visual interface of the CNC system: it displays in real time the machining programs, machine parameters, active alarms and axis status. Without a working monitor the operator cannot program, modify parameters, read alarms or carry out any diagnostic operation, making the machine completely inoperable regardless of the condition of all other components.

FANUC (Fuji Automatic NUmerical Control) is the world’s leading manufacturer of CNC systems, servo motors, industrial robots and factory automation, founded in Japan in 1956. The A61L series monitors belong to a generation of CNC peripherals now legacy / discontinued, replaced in modern installations by LCD flat panel displays; availability is limited to the used market and specialist repair services.

Main Technical Specifications

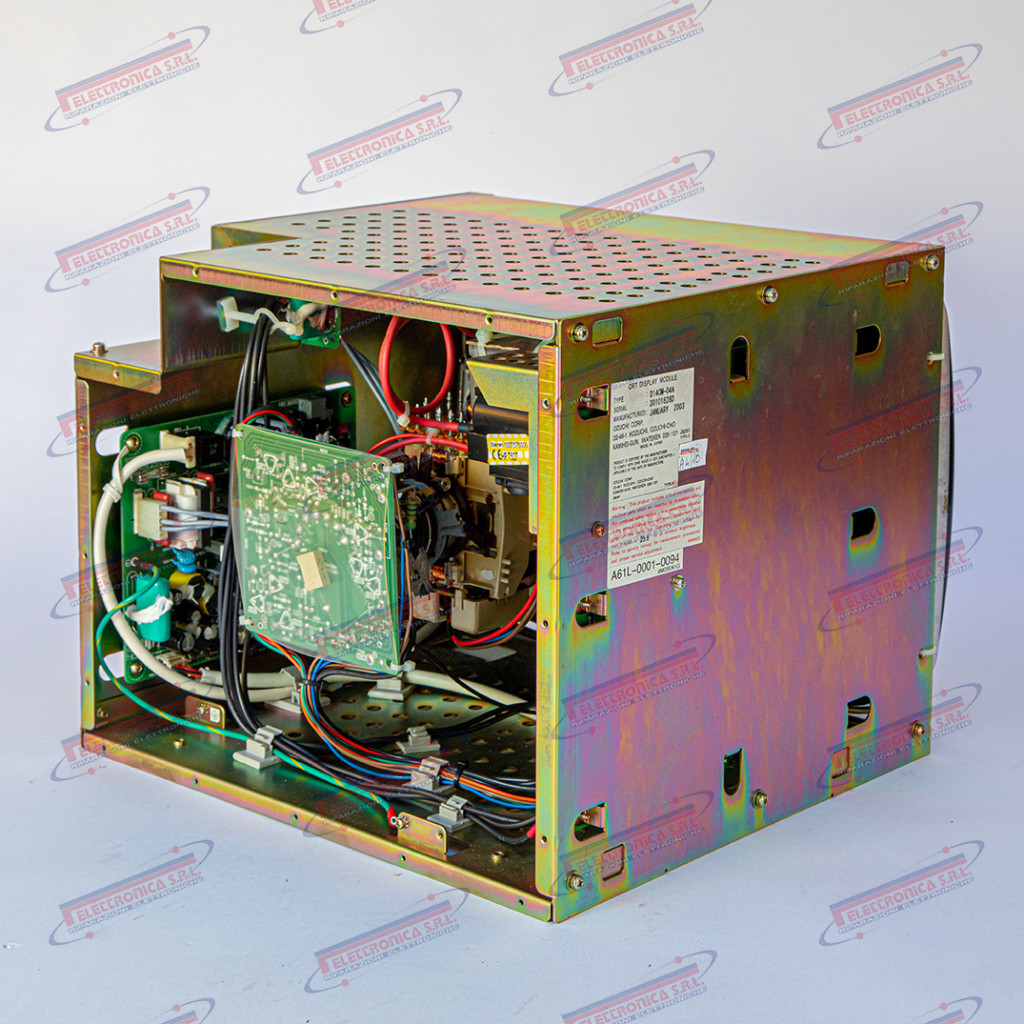

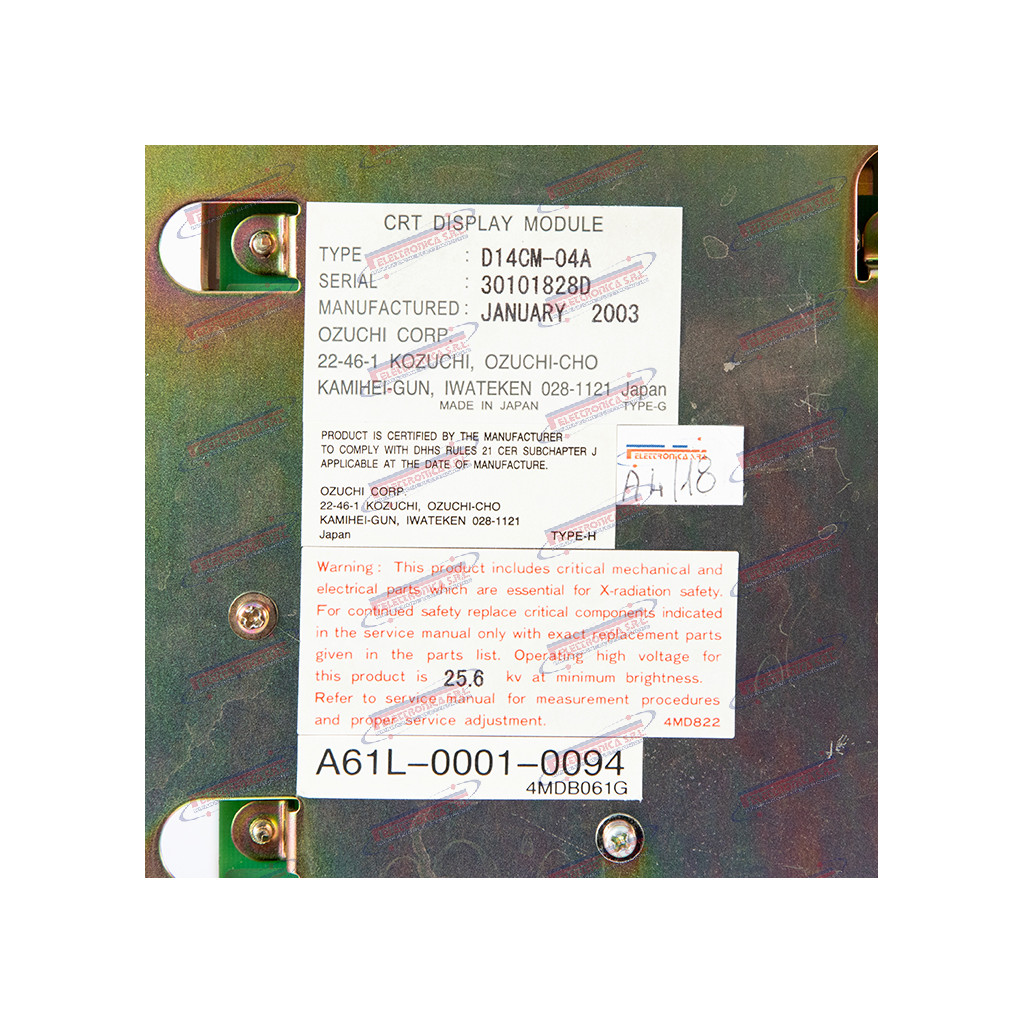

14-Inch Colour CRT Monitor – FANUC A61L-0001-0094

The A61L-0001-0094 is a 14″ colour CRT monitor (“14-inch Colour CRT Monitor”) manufactured by FANUC, designed for use with FANUC Series 0, 15, 16, 18 and 21 CNC control systems. The cathode ray tube display provides graphic and text rendering for the operator interface (HMI) on CNC control panels. The unit supports analogue RGB video with composite sync or separate H/V sync signals and is available in variants for 100–120 V and 200–240 V AC, 50/60 Hz supply.

The monitor is the central visual component of the CNC operator panel: without it, the operator cannot view machine status, part programs, alarms or machining parameters. A monitor failure effectively stops the machine because the HMI becomes completely inaccessible, preventing any production cycle from being started or managed.

FANUC (Fuji Automatic NUmerical Control) is the world’s leading manufacturer of CNC systems, industrial robots and factory automation, founded in Japan in 1956 by Seiuemon Inaba as a division of Fujitsu and independent since 1972. CRT monitors in the A61L series are legacy / discontinued: LCD drop-in retrofit units are now the most widely adopted replacement solution in the industrial spare-parts market.

Main Technical Specifications

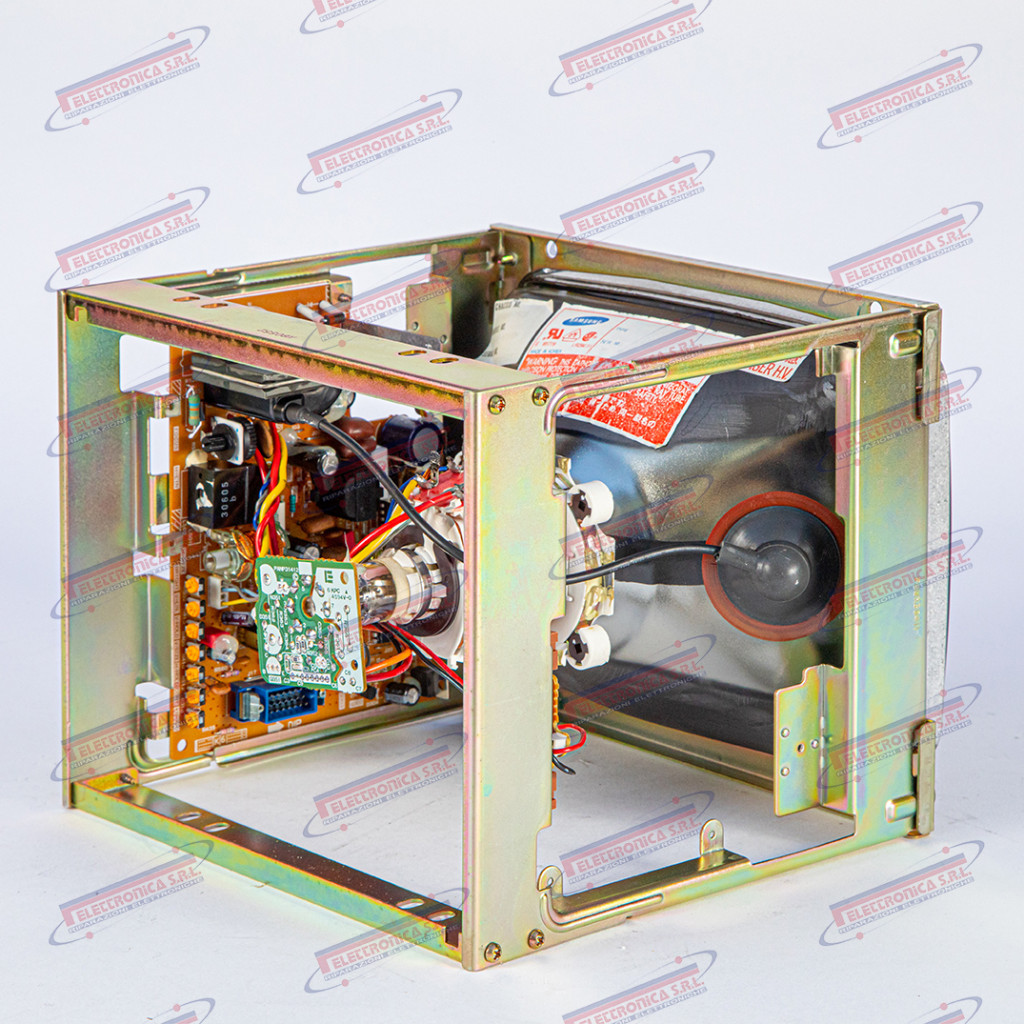

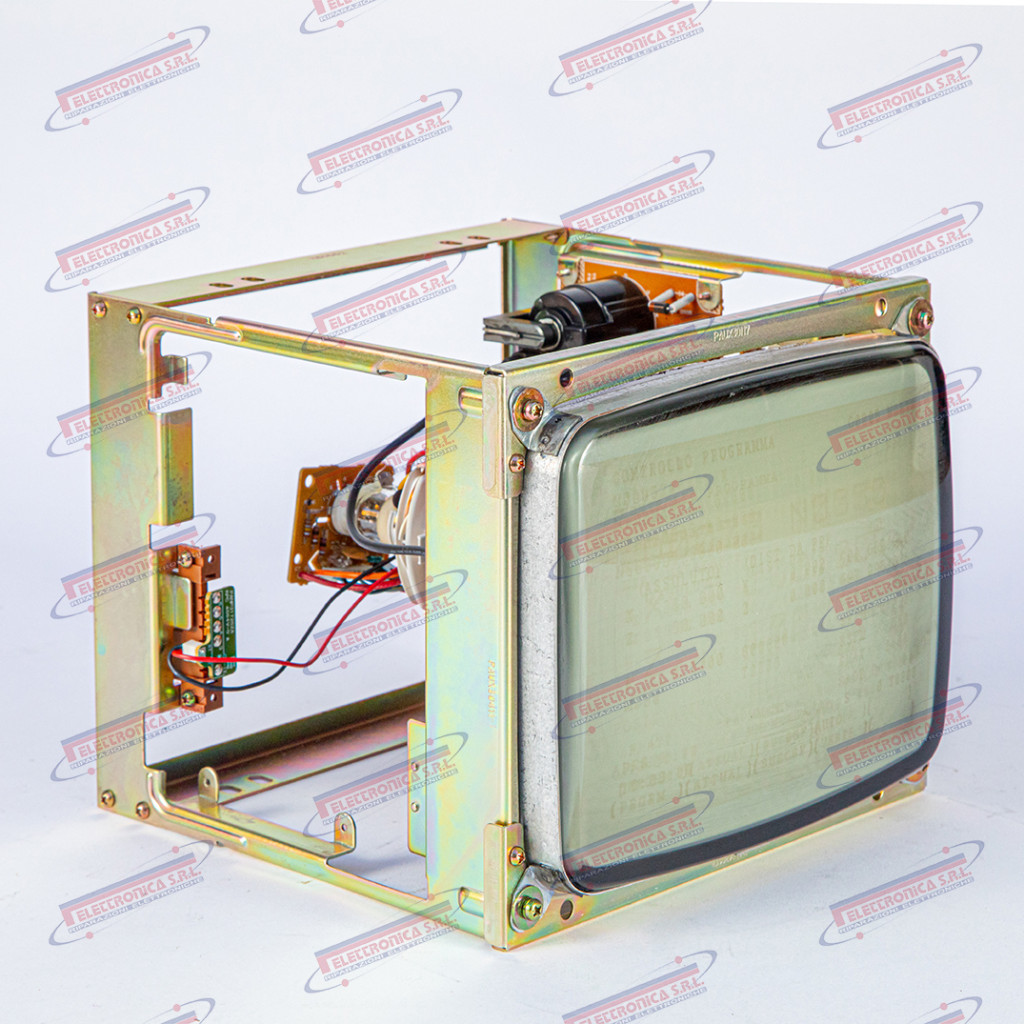

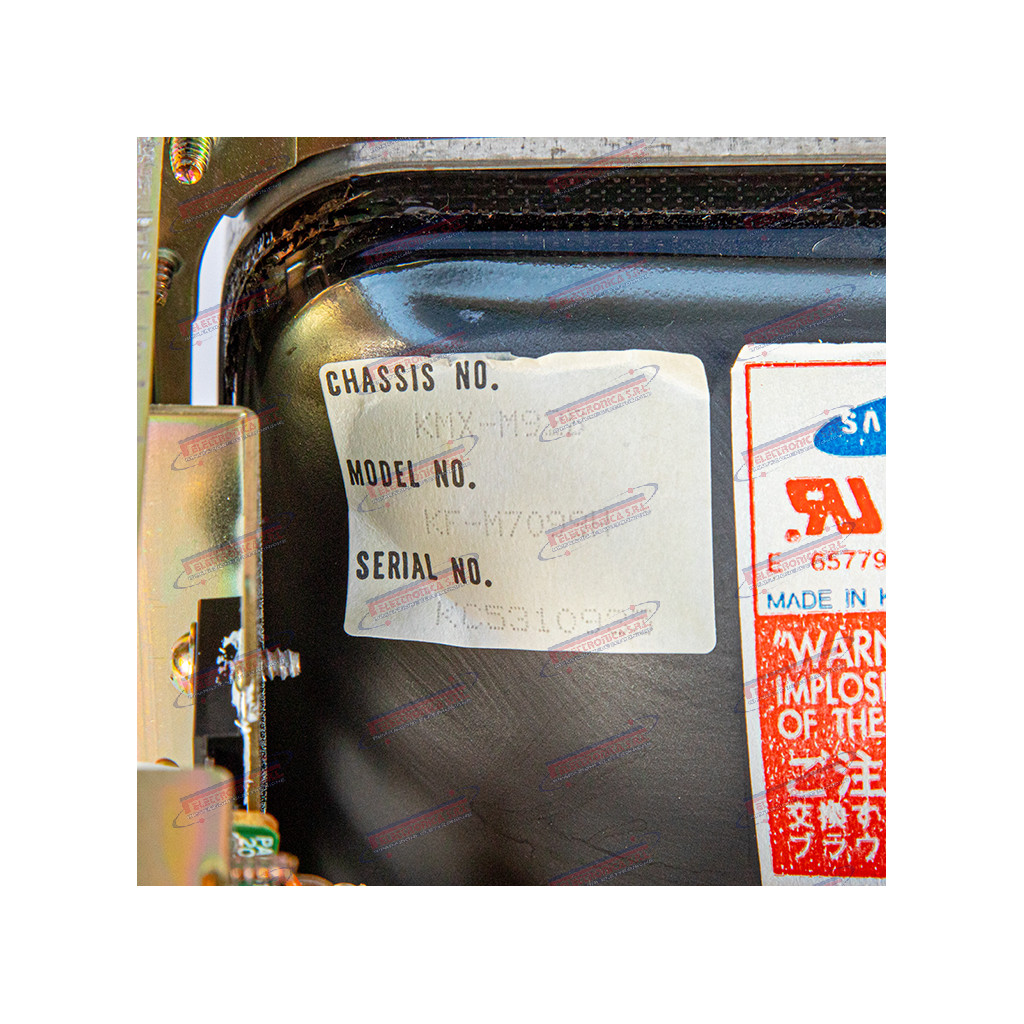

9″ Monochrome CRT Monitor – FANUC A61L-0001-0093

The A61L-0001-0093 is a 9″ monochrome CRT monitor (“9-inch Monochrome CRT Display”) manufactured by FANUC, used as the standard operator display unit in FANUC CNC Series 0, Series 6, Series 10/11/12 and Series 15 control systems. The monochrome phosphor cathode ray tube display (typically green P31 or amber P39) renders the CNC operator interface: active programs, machine status, alarm messages and axis coordinates. It connects to the control unit via the dedicated video board housed in the FANUC cabinet. It carries no independent CNC logic and is a pure display peripheral.

The CRT monitor is the primary operator interface of the numerical control: without it the operator cannot view the running program, read alarm messages, check axis coordinates or interact with the CNC through the keypad. A failed monitor renders the machine operationally unusable, blocking all production, diagnostic and setup activities and causing an immediate production stoppage.

FANUC is the world leader in CNC systems, industrial robots and factory automation, founded in Japan in 1956 as a Fujitsu division and independent since 1972. This monitor belongs to the classic display line for CNC systems of the 1980s–1990s and is legacy / discontinued: available only as used, surplus stock or through specialist CRT repair services and LCD retrofit kits.

Main Technical Specifications

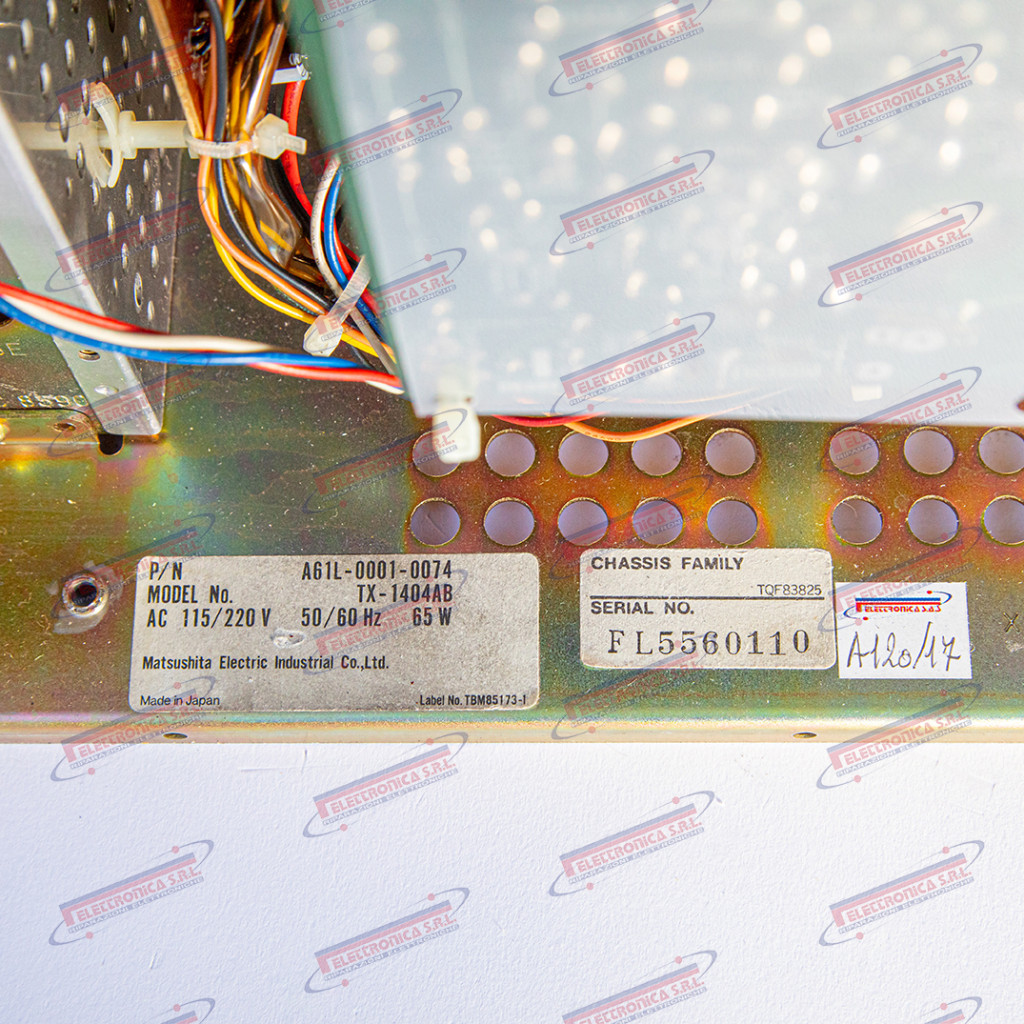

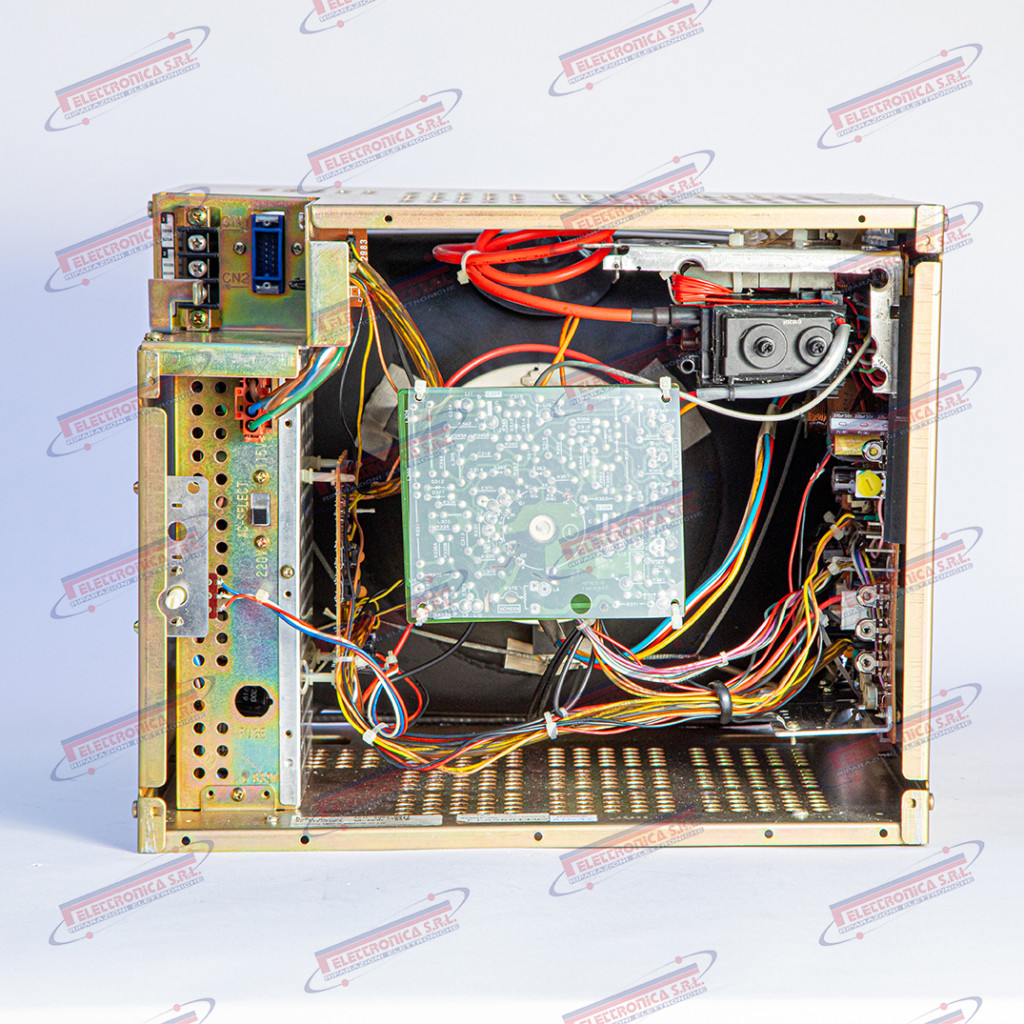

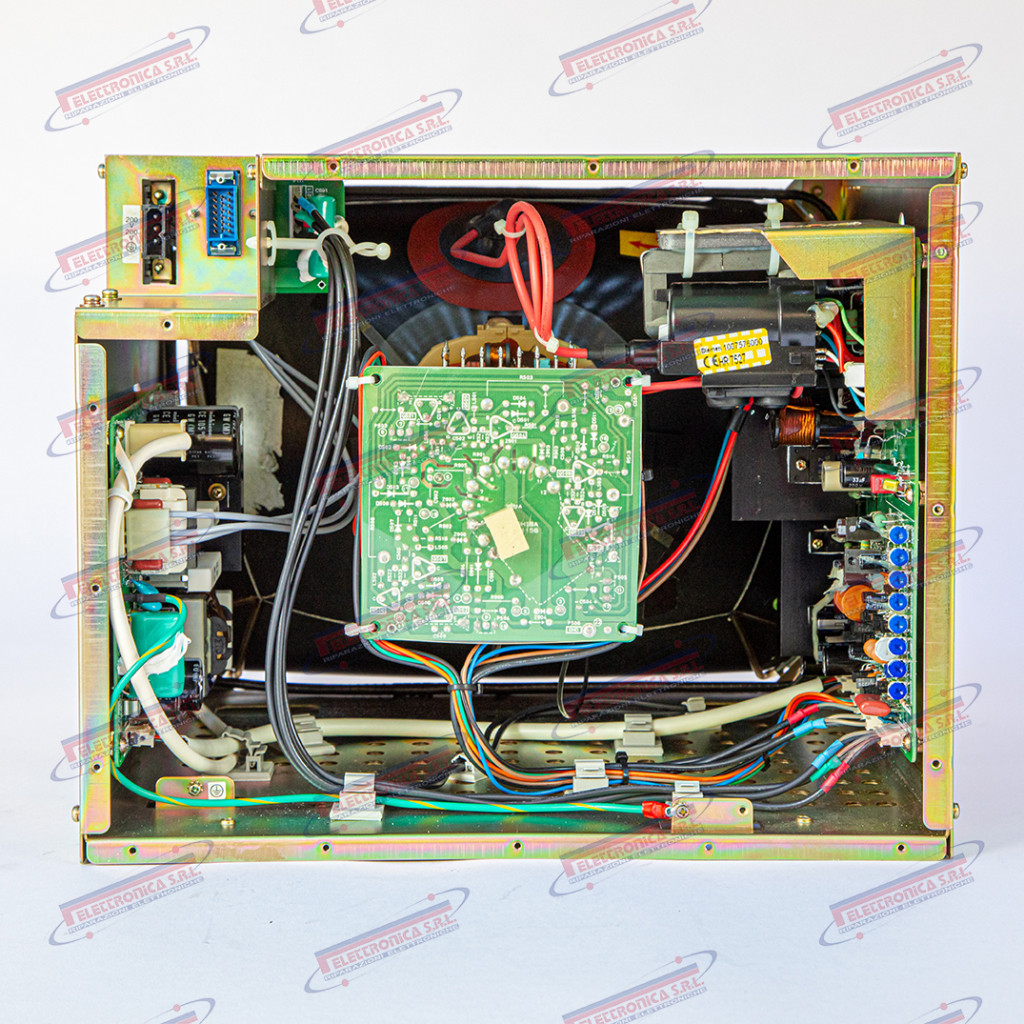

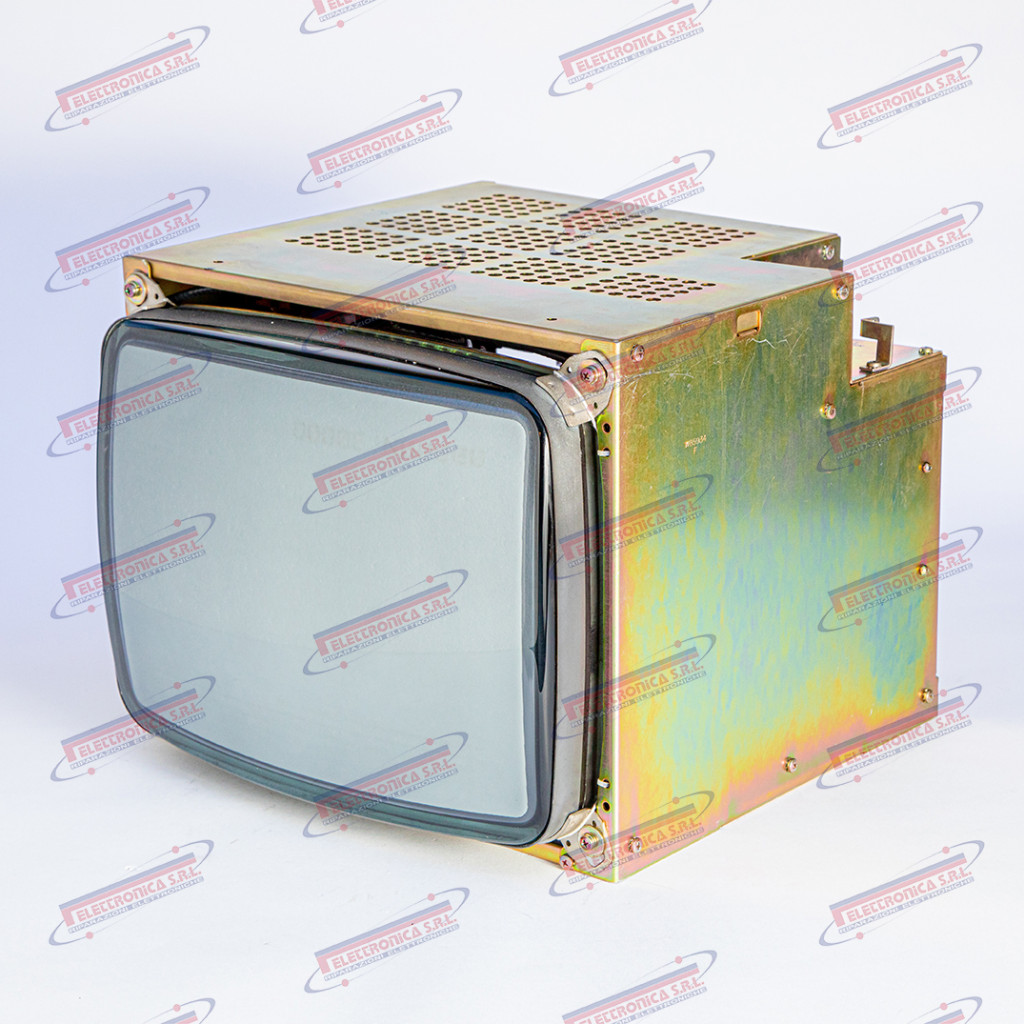

14″ Colour CRT Monitor – FANUC A61L-0001-0074

The A61L-0001-0074 is a 14″ colour cathode-ray tube (CRT) monitor (“14″ Colour CRT Monitor”) manufactured by FANUC, used as the integrated display unit in MDI/CRT operator consoles of FANUC Series 0, Series 6, Series 10/11/12, Series 15 and Series 16/18/21 CNC systems, as well as selected FANUC robot cells of the same era. The unit receives the video signal from the control unit via dedicated cabling and a proprietary connector, rendering all CNC operator screens in colour CRT technology. No distinct hardware revisions with separate part numbers are documented; production batches may differ only in minor internal components.

The monitor is the primary visual interface between the operator and the CNC system: without it, it is impossible to view part programmes, machine parameters, diagnostics, or alarm messages. A monitor fault effectively halts machine operation even when the control electronics are fully intact, making it impossible to interact with menus, reset alarms, or modify critical parameters.

FANUC (Fuji Automatic NUmerical Control) is the world’s leading manufacturer of CNC systems and industrial robotics, headquartered in Oshino, Yamanashi, Japan. Founded in 1956 as a division of Fujitsu and independent since 1972, FANUC holds the highest global market share in the CNC sector. CRT monitors of the A61L family are legacy / discontinued: CRT technology is no longer manufactured industrially and these components are available exclusively as used, surplus, or via replacement with compatible LCD retrofit kits.

Main Technical Specifications
