Analog-to-Digital Converter Module – MITSUBISHI ADC-04D

The ADC-04D is an analog-to-digital converter module (“Analog-to-Digital Converter Module”) manufactured by Mitsubishi Electric, designed for CNC and industrial automation control systems of the MELDAS series and compatible architectures. The unit acquires analog voltage or current signals from sensors, transducers, or potentiometers and converts them into digital values that can be processed by the CNC controller. The designation ADC-04D identifies a converter with 4 independent analog input channels; the trailing letter “D” denotes the hardware variant or revision. Depending on the host system architecture, it may be installed as a plug-in board on a backplane or as a standalone module.

The A/D converter module performs an essential role in bridging the physical world of analog signals and the digital logic of the numerical controller: without it the CNC cannot read continuous quantities such as positions, temperatures, pressures, or speeds. A failure in the converter manifests as incorrect or missing feedback channel readings, feedback alarms, and immediate machine stops, making any machining cycle impossible.

Mitsubishi Electric is one of Japan’s largest multinational electronics and industrial automation conglomerates, with over a century of history. Its FA (Factory Automation) division produces the world-class MELDAS / M700 / M800 CNC controller series, MELSERVO servo drives, and MELSEC PLCs. Products in the ADC-04D family belong to earlier-generation control architectures and are to be considered legacy / discontinued: availability is limited to the used market and specialist repair services.

Main Technical Specifications

Transistor Drive Unit – Mitsubishi TRS 75B

The TRS 75B is an electronic transistor drive unit for servo/spindle motors (“Transistor Drive Unit”) manufactured by Mitsubishi Electric, belonging to the TRS series of transistorised drive amplifiers. It is documented as a drive control unit in CNC systems based on Mitsubishi MELDAS controllers and Japanese machining centres / lathes from the 1980s–1990s. It manages the motor speed and current regulation loops, interfacing with the power module and the numerical controller. The suffix 75B identifies the current/power size variant and the board revision within the series.

The transistor drive unit is the core of the axis or spindle control system: it receives the speed reference from the CNC, closes the feedback loop with the motor encoder or tachogenerator, and drives the power transistors to deliver the current required for the demanded torque. A failure of this unit results in complete loss of control of the connected motor, causing immediate axis or spindle shutdown and making any further machining impossible.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, servo drives, and servo motors for machine tools, with over 50 years of experience in the industry. The TRS series belongs to the legacy generation of Mitsubishi’s product range; these products are legacy / discontinued and available exclusively as used, NOS surplus, or through specialist repair.

Main Technical Specifications

CNC Power Supply Unit – MITSUBISHI SF-PWH

The SF-PWH (internal part number SFPWH) is a switching power supply module for CNC control systems (“CNC Power Supply Unit”) manufactured by Mitsubishi Electric. The unit belongs to the family of power supply modules designed for the control boards of MELDAS-series and related Mitsubishi numerical control systems. It delivers the regulated DC voltages required by the control logic, axis modules, and operator panel interfaces; the PWH suffix identifies the specific power rating and mechanical form factor variant. Verify the installed hardware revision before replacement, as connector configurations may differ between variants.

The power supply unit is the energy core of the CNC rack: it converts mains voltage (or DC bus) into multiple stabilised outputs that are essential for the operation of the CPU, I/O boards, axis drives, and display. Even a partial failure on a single output rail can trigger unpredictable system faults, undiagnosable errors, or secondary damage to downstream boards; its condition directly determines the overall availability of the machine tool.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation systems, motion control, and numerical controllers. The FA (Factory Automation) division has produced the MELDAS, MELDASMAGIC, and more recent M70/M80 CNC series for decades. Components in the SF-PWH series belong to earlier generations of CNC controls and are to be considered legacy / discontinued: availability is limited to the used, surplus, and specialist repair channels.

Main Technical Specifications

CNC Power Supply Unit – MITSUBISHI SF-PW30

The SF-PW30 is a switching power supply module (“Power Supply Unit”) manufactured by Mitsubishi Electric, belonging to the SF series of CNC system components and servo drive accessories. The internal part number is SFPW30. The unit provides the stabilised DC supply voltages required by logic boards and control modules within the CNC rack, interfacing with the main system or drive chassis. It is documented on MELDAS CNC systems and SF-series Mitsubishi Electric drives; the suffix “30” presumably denotes the nominal power rating in watts or a size variant.

The power supply is the energy backbone of the CNC system: it converts and regulates mains voltage into precise DC rails (+5 V, ±15 V, +24 V) that power the CPU, axis control boards and logic circuits throughout the controller. A power supply failure causes the immediate shutdown of the entire machine: without stable supply voltages no CNC module can operate correctly, making this component critical for production continuity and system safety.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, servo drives and industrial automation equipment, with over a century of history in electrical and electronic engineering. The FA (Factory Automation) division produces the MELDAS and MELSERVO systems, widely deployed across global manufacturing. SF-series products in their older versions are considered legacy / discontinued: availability must be verified through specialist CNC spare-parts distributors.

Main Technical Specifications

CNC Power Supply Module – MITSUBISHI SE-PW

The SE-PW is an electronic power supply module for CNC control units (“CNC Power Supply Module”) manufactured by Mitsubishi Electric, documented as a component of Mitsubishi MELDAS series CNC systems. The module converts mains voltage into regulated, filtered DC voltages distributed to the CNC control boards (digital logic, analogue interfaces, I/O). It is not a regulation board or servo drive, but a dedicated power supply unit serving the entire control electronics of the machine.

The CNC power supply module is the component that converts and distributes electrical power to all circuits of the numerical control unit: without stable, filtered output voltages the CNC cannot start up or operate. A power supply failure causes an immediate and total machine shutdown; out-of-tolerance output voltages can also damage connected boards, making replacement an urgent, high-priority intervention above any other electronic fault.

Mitsubishi Electric is one of Japan’s leading industrial automation manufacturers, active in the CNC sector with the MELDAS line since 1970. The FA (Factory Automation) division produces numerical controls, servo motors and drives used worldwide in the metalworking industry. Components of the SE series are to be considered legacy / discontinued: sourced primarily as used, surplus or through specialist repair services.

Main Technical Specifications

CNC Power Supply Unit – MITSUBISHI SF-PW

The SF-PW is a CNC power supply unit (“CNC Power Supply Unit”) manufactured by Mitsubishi Electric, designed to provide regulated DC supply voltages to the internal boards of MELDAS-series and related CNC numerical control systems. The unit converts mains AC voltage into multiple regulated DC outputs (+5 V, ±12 V, ±15 V, +24 V typically) required by control logic, interfaces and axis boards. The commercial part number is SF-PW (internal article code: SFPW).

The power supply is the energy core of the CNC system: without stable, well-regulated voltages the entire control unit cannot operate. A failure typically manifests as inability to power on, voltage-out-of-range alarms, spontaneous resets, or secondary damage to downstream boards. Replacement or repair of this unit is often the first diagnostic step in the event of complete machine downtime.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, servo and spindle drives, and industrial automation. The FA (Factory Automation) division produces numerical controllers from the MELDAS series up to the modern M800/M80 platforms. Products from legacy series such as MELDAS are to be considered legacy / discontinued as new parts: available primarily as used, surplus or through specialist repair.

Main Technical Specifications

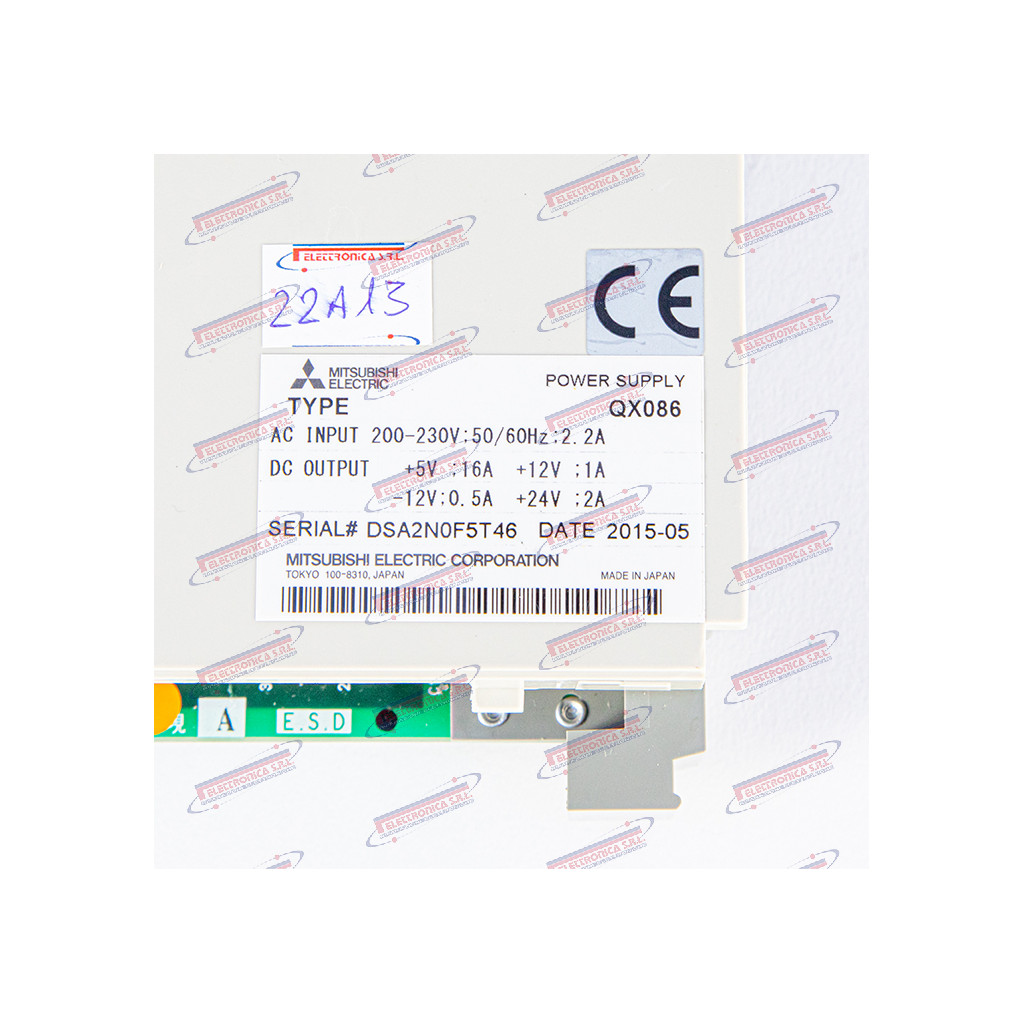

CNC Power Supply Unit – MITSUBISHI QX086

The QX086 is a switching power supply module (“Power Supply Unit”) manufactured by Mitsubishi Electric, a component of CNC systems in the MELDAS or M-series family. It provides the regulated DC voltages required by the logic, control and communication boards of the CNC system. The part number QX086 uniquely identifies the module within the Mitsubishi Electric catalogue; it is compatible with CNC control cabinets using the proprietary Mitsubishi power bus standard. Compatibility with the specific machine should be verified before installation.

The power supply unit converts mains voltage into regulated DC voltages essential for the operation of all electronic boards in the CNC system. A failure in the power supply causes the immediate shutdown of the entire control unit: the machine is unable to execute any programme or move any axis. Unstable or missing supply voltages can also damage downstream logic boards through transient over- or under-voltage conditions, making this component absolutely critical for production continuity and for protecting the other modules in the system.

Mitsubishi Electric is one of the main divisions of the Japanese industrial group Mitsubishi, active in industrial automation, CNC numerical controls (MELDAS line and M-series, M70, M700, M800) and servo drive technology. CNC products from the MELDAS series of the 1980s–1990s and early M-series versions are now legacy / discontinued: availability is limited to used parts, NOS (new old stock) and specialist repair.

Main Technical Specifications

CNC Power Supply Unit – MITSUBISHI PD23A

The PD23A is a CNC power supply unit (“CNC Power Supply Unit”) manufactured by Mitsubishi Electric, documented as a component of the MELDAS series CNC controllers. The module converts the mains supply into multiple regulated DC outputs distributed to the logic boards, interface modules and servo drives of the CNC system. It is not a power drive module for axes or spindle, but the primary power source for the control electronics.

The CNC power supply is the component that delivers regulated power to all boards and modules in the control system: without it the CNC cannot start up or perform any function. A power supply failure results in complete loss of the operator panel, no communication with the axes and an immediate machine stop; it is therefore one of the most critical components for production continuity.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, servo drives and industrial automation, with a long-standing presence in the machine tool sector since the 1970s. The Mitsubishi CNC division produces the MELDAS, M70, M700 and M800 controller series. Components from older series such as the PD23A are legacy / discontinued and available only as used stock, NOS surplus, or through specialist repair.

Main Technical Specifications

CNC Power Supply Unit – MITSUBISHI PD21B

The PD21B is a power supply module (“Power Supply Unit”) manufactured by Mitsubishi Electric, used in CNC control units of the MELDAS series. The module receives AC mains voltage and converts it into regulated and filtered DC voltages required to power the control boards, processors, and interface modules of the CNC system. It is not a drive or CPU board: it is a dedicated power conversion module for the entire control electronics.

The power supply is the fundamental element of the CNC electrical system: it provides the regulated voltages (typically +5 V, ±15 V, +24 V DC) essential for the operation of all control boards, axis modules, and I/O interfaces. A failure of this module causes an immediate shutdown of the entire CNC unit, rendering the machine completely inoperative until the component is replaced or repaired.

Mitsubishi Electric is one of the leading Japanese manufacturers of industrial electronics, CNC systems, inverters, servo systems, and factory automation. The CNC division — historically known under the MELDAS brand — has been producing controllers for machine tools since the 1970s. Products in the PD series are legacy / discontinued: available exclusively as used, surplus, or through specialist repair services.

Main Technical Specifications

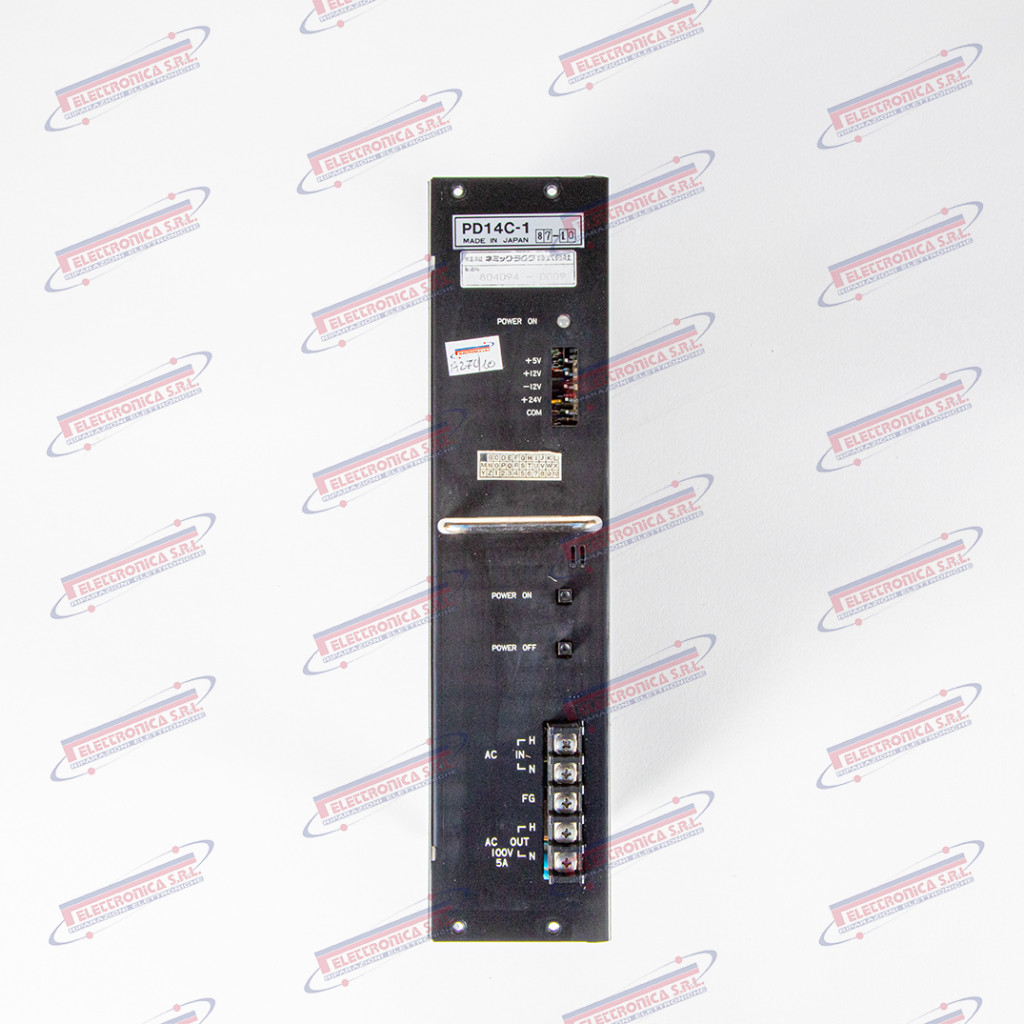

CNC Power Supply Unit – Mitsubishi PD14C-1

The PD14C-1 is a CNC control power supply module (“CNC Power Supply Unit”) manufactured by Mitsubishi Electric, belonging to the component family for the MELDAS series CNC control systems. The module generates and distributes the regulated DC voltages required by logic boards, I/O modules, and axis drive circuits within the CNC controller. The commercial alternate part number is PD14C-1 (internal item code: PD14C1). The unit is designed for rack or panel mounting inside the machine tool electrical cabinet.

The power supply is the component that converts the AC mains voltage into the regulated DC rails that all CNC electronic boards depend on. A failure — even partial, on a single output rail — can cause loss of safety logic, axis lockout, or a complete failure to boot, taking the machine entirely out of service. Output stability directly affects the accuracy of the analogue references sent to the drives and, consequently, the dimensional accuracy of machined parts.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, industrial inverters, and servo drives, with over 50 years of presence in motion control. The MELDAS division has equipped tens of thousands of machine tools worldwide; components from older series are legacy / discontinued and available only as used spare parts, NOS surplus, or through specialist repair services.

Main Technical Specifications

CNC Power Supply Unit – MITSUBISHI PD14-A

The PD14-A is a switching power supply for CNC systems (“CNC Power Supply Unit”) manufactured by Mitsubishi Electric, documented as the power supply module for MELDAS M5xx/M6xx series CNC controllers. It provides the regulated DC voltages required by the CNC rack logic circuits: CPU boards, I/O modules, and axis interfaces. Available under the designation PD14-A; some variants may differ in current rating or hardware revision.

The power supply is the energy backbone of the CNC system: it converts AC mains voltage into multiple regulated DC outputs that power the CPU board, I/O modules, servo drive interfaces, and auxiliary circuits. A power supply failure causes immediate and complete shutdown of the numerical control, rendering the machine inoperable; the quality and stability of its outputs directly affect the reliability of the entire system.

Mitsubishi Electric is a leading Japanese manufacturer of industrial automation systems, including the MELDAS CNC line (now evolved into the M800/M80 series). Products in the PD14 family are legacy / discontinued: no longer available as new, obtainable only as used, surplus, or through specialist repair services.

Main Technical Specifications

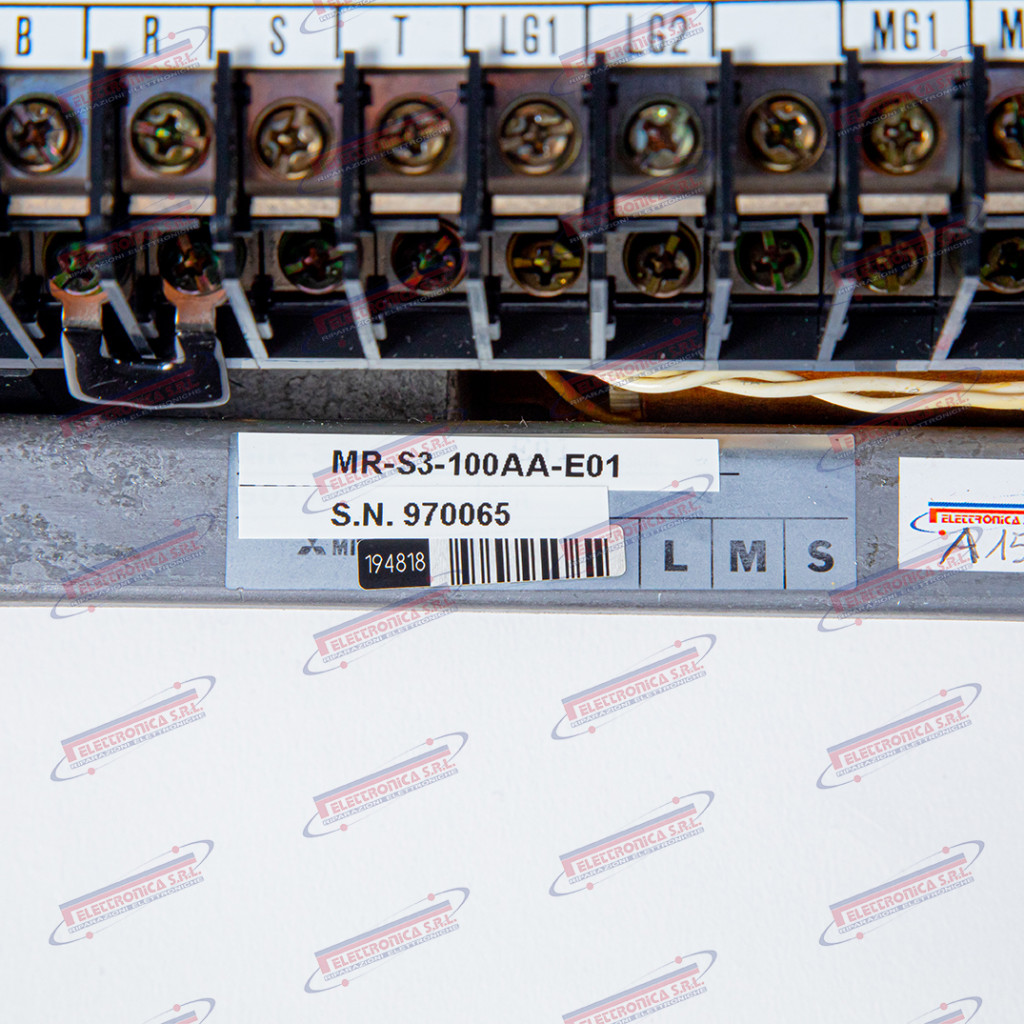

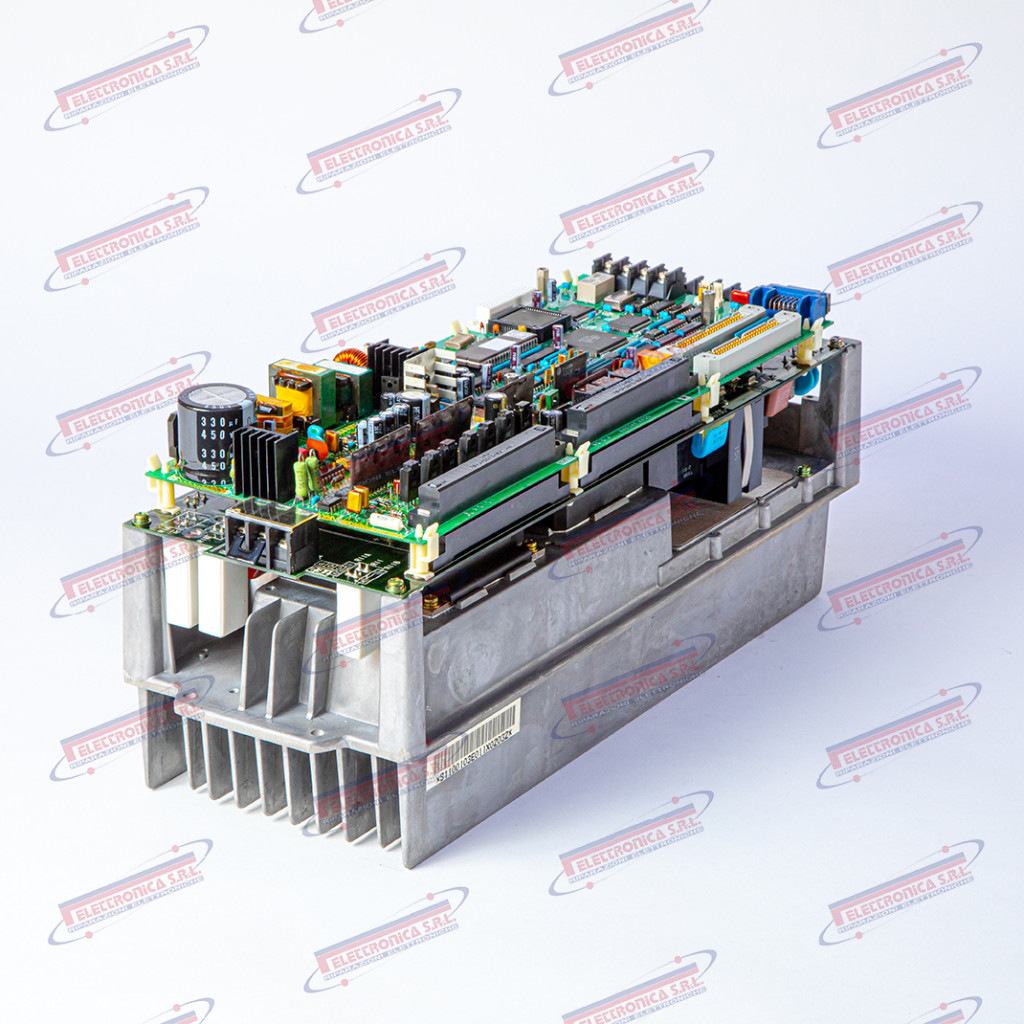

AC Servo Amplifier – MITSUBISHI MR-S3-100AA-E01

The MR-S3-100AA-E01 is a digital AC servo amplifier (“AC Servo Amplifier”) manufactured by Mitsubishi Electric under the MELSERVO® product line, European variant (E01 suffix). The internal stock code is MRS3100AAE01. This unit belongs to the MR-S3 series, designed for digital control of AC brushless servo motors, typically paired with Mitsubishi MELDAS CNC systems and other numerically controlled machine tools of the 1990s and 2000s. It regulates speed, torque, and position of the connected servo motor via encoder feedback; the “AA” variant identifies a specific output and supply configuration within the series, while “E01” confirms European directive compliance.

The servo amplifier is the core of the machine tool’s axis system: it receives position or speed references from the CNC, closes the control loop by comparing the motor encoder signal, and generates the output current required to maintain the programmed trajectory with the specified accuracy. Without a functioning servo amplifier, the controlled axis becomes inert or enters a fault state: the machine cannot perform any machining operation and the CNC immediately raises a position error or drive communication fault, halting production.

Mitsubishi Electric is a Japanese multinational active in industrial automation since the post-war era, with the MELSERVO® line as one of the historic references in motion control for CNC machine tools. The MR-S3 series is legacy / discontinued: Mitsubishi progressively replaced these units with the MR-J2, MR-J3, and MR-J4 generations, which remain supported today. This part is available exclusively as used, NOS (new old stock), or through specialist repair services.

Main Technical Specifications

AC Servo Amplifier – MITSUBISHI MR-S2-40A-E01

The MR-S2-40A-E01 is an AC servo amplifier (“AC Servo Amplifier”) from the MR-S2 series manufactured by Mitsubishi Electric, belonging to the MELSERVO family. It is designed for three-phase AC servo motor control in CNC machine tool applications and is documented as a component of Mitsubishi MELDAS CNC systems. The 40A designation indicates a continuous output current rating of 40 A; the E01 suffix identifies a specific product variant or revision. The unit manages the current and speed regulation loops of the servo motor, receiving reference commands from the CNC controller via serial bus or digital interface.

The servo amplifier is the core of the motion control system: it converts position and speed commands from the CNC into controlled three-phase currents that drive the servo motor with precision. Without it, the machine axes cannot move in a controlled manner; any fault causes an immediate machining stop, with consequent risk of damage to the workpiece and tooling.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation systems, motion control, and CNC technology, with over a century of history in the sector. The MR-S2 series belongs to the generation of servo drives developed in the 1990s for MELDAS systems; these products are currently legacy / discontinued and available exclusively as used, surplus or through specialist repair services.

Main Technical Specifications

AC Servo Drive – MITSUBISHI MR-S12-40A-Z33

The MR-S12-40A-Z33 is an AC servo amplifier (“AC Servo Amplifier”) manufactured by Mitsubishi Electric, belonging to the MELSERVO-S1 family, designed for high-dynamic control of AC servo motors in CNC machine tools and industrial positioning systems. The module, also identified by part number MRS1240AZ33, delivers a rated output current of 40 A to the associated servo motor. The Z33 variant designates a specific hardware revision of the module; the unit is typically paired with Mitsubishi Electric HC and HF series servo motors used on the linear and rotary axes of machines equipped with MELDAS CNC controllers.

The servo drive is the electronic core of the machine axis: it receives position and speed references from the CNC controller and regulates in real time the current delivered to the servo motor, simultaneously closing the position, speed, and current loops. A failure of the servo drive immediately halts the controlled axis, rendering the machine inoperable and potentially causing serious production downtime; its replacement or repair is therefore critical for restoring machine operation.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation, motion control, and CNC systems. The MELSERVO-S1 family is a legacy / discontinued product line that equipped machining centres, milling machines, and CNC lathes paired with Mitsubishi MELDAS controllers for decades. Products from this family are now available exclusively as used, surplus, or through specialist repair services.

Main Technical Specifications

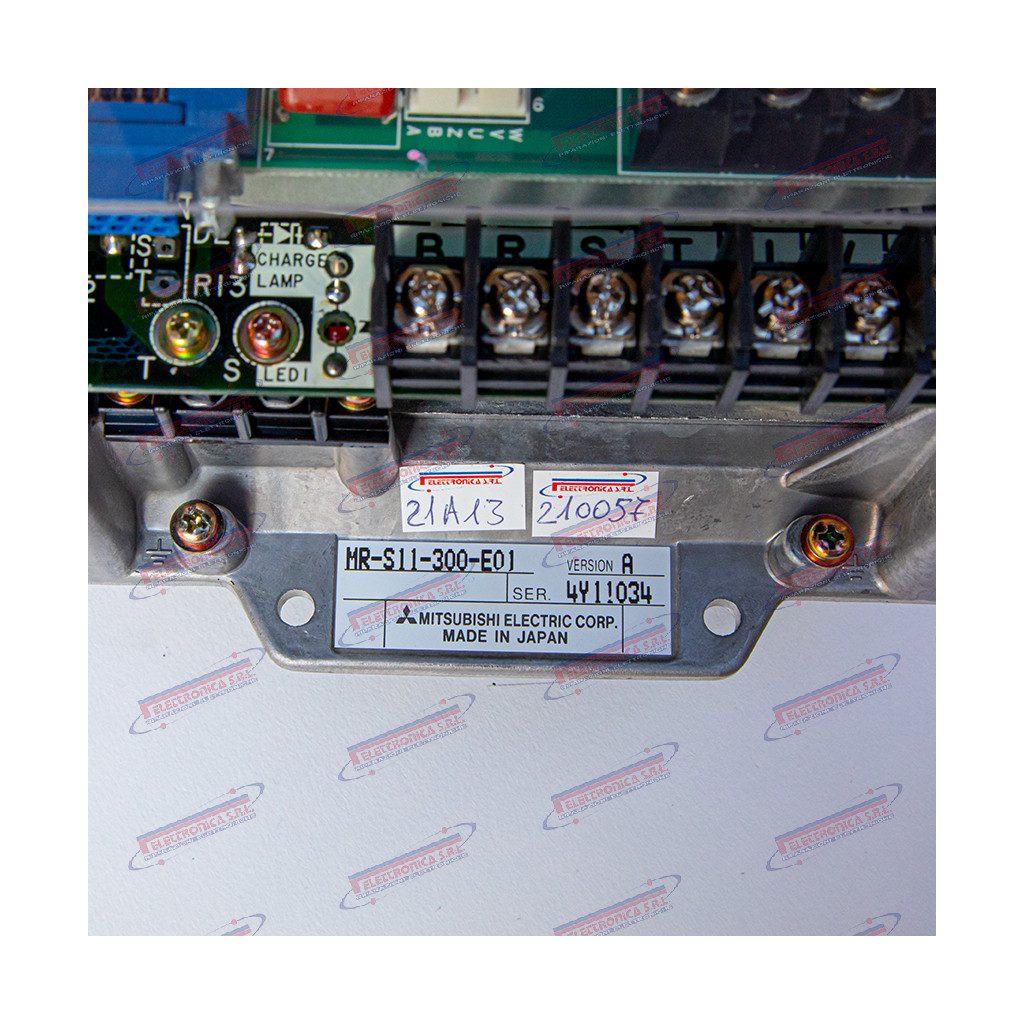

AC Servo Drive 300 W – MITSUBISHI MR-S11-300-E01

The MR-S11-300-E01 is a 300 W AC servo amplifier / servo drive (“AC Servo Amplifier”) manufactured by Mitsubishi Electric, belonging to the MR-S11 series. It is designed to control AC brushless servo motors on the axes of CNC machine tools, particularly systems using MELDAS control or equivalent Mitsubishi architectures. The unit manages the complete axis regulation chain: it receives the position/speed reference from the CNC and drives the servo motor via PWM modulation. The suffix “E01” identifies the variant/revision of the base model.

The servo drive is the electronic component that closes the position, speed and current loops on the machine axis: it converts the numerical commands from the CNC into precise motor movements, ensuring positioning accuracy and cycle repeatability. If it fails, the controlled axis becomes inoperative and the CNC typically signals a servo alarm, halting all machining operations; a servo drive failure results in an immediate machine stoppage with no possibility of continuing the production cycle.

Mitsubishi Electric is a Japanese multinational leader in industrial automation, motion control and CNC systems. The MR-S11 series belongs to the servo drive generation of the 1990s–2000s, now superseded by the MR-J2S, MR-J3, MR-J4 and MR-J5 series. All products in the MR-S11 family are legacy / discontinued: available only as used, surplus or through specialist repair.

Main Technical Specifications

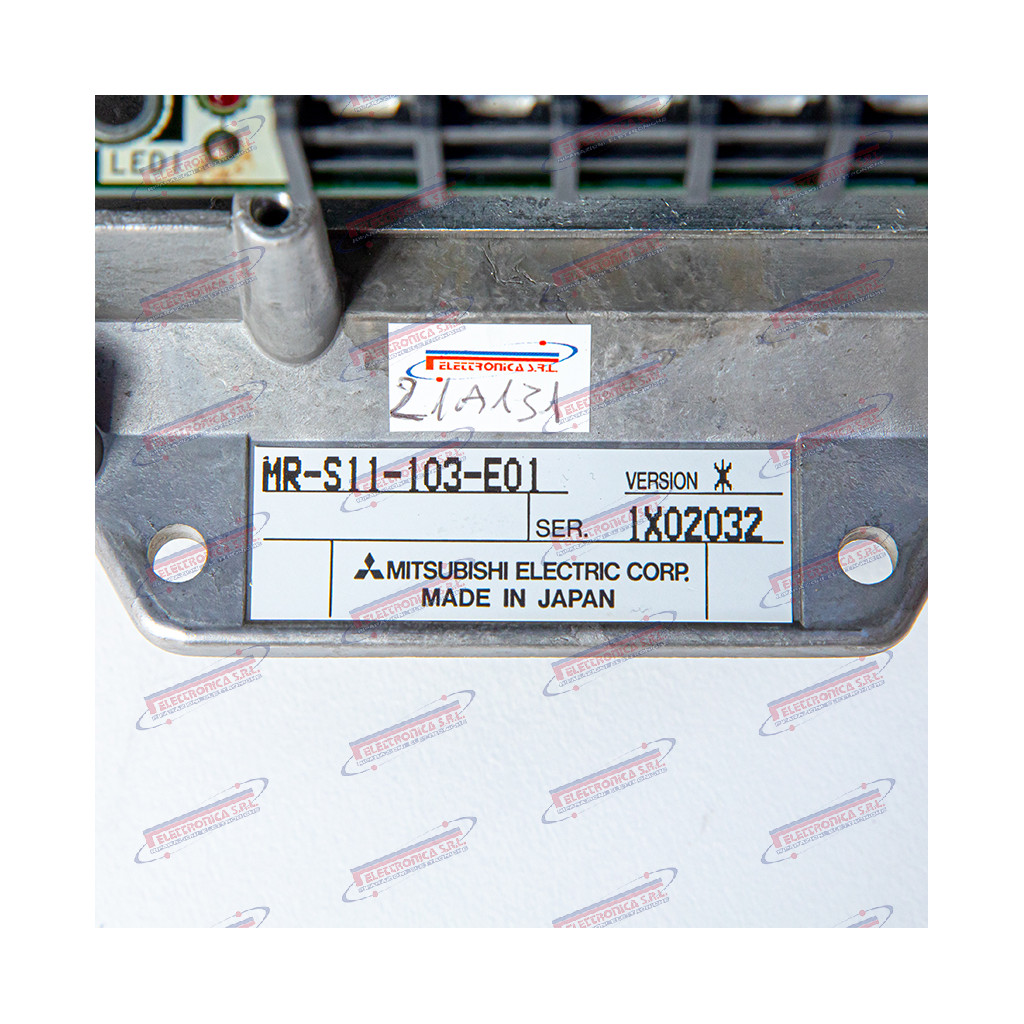

MELSERVO Servo Amplifier – Mitsubishi MR-S11-103-E01

The MR-S11-103-E01 is a compact digital servo amplifier (“Compact Servo Amplifier”) manufactured by Mitsubishi Electric, belonging to the MELSERVO MR-S11 series. Designed for speed and torque control of AC brushless servo motors (HA-SE series and compatible), it is typically used in CNC machine tools equipped with Mitsubishi Electric MELDAS control systems. The suffix E01 identifies the European supply variant (200–230 V AC) at hardware revision 01; the internal stock code is MRS11103E01. The number 103 denotes the power class of the unit.

The servo amplifier closes the speed and current loops on the axis motor: it receives the reference from the CNC controller (±10 V analogue signal or pulse train) and maintains stable, precise rotation by adapting in real time to load variations. If it fails, the controlled axis becomes completely inoperative, causing an immediate machine stop and the inability to perform any CNC machining operation.

Mitsubishi Electric is one of the world’s leading manufacturers of motion control, CNC and industrial automation systems, with the MELSERVO line active since the late 1980s and continuously updated through to the current MR-J5 series. All products in the MR-S11 series are now legacy / discontinued: available only as used parts, NOS surplus, or through specialist repair centres.

Main Technical Specifications

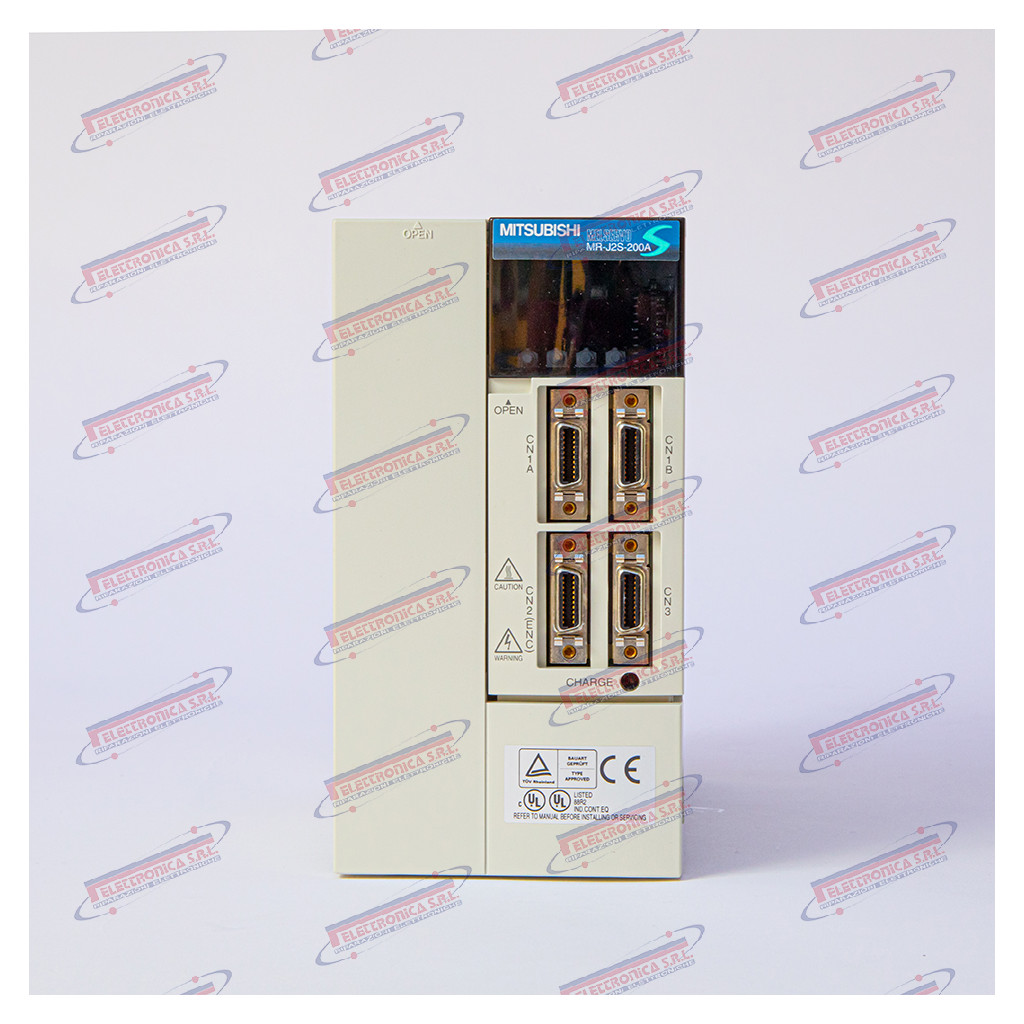

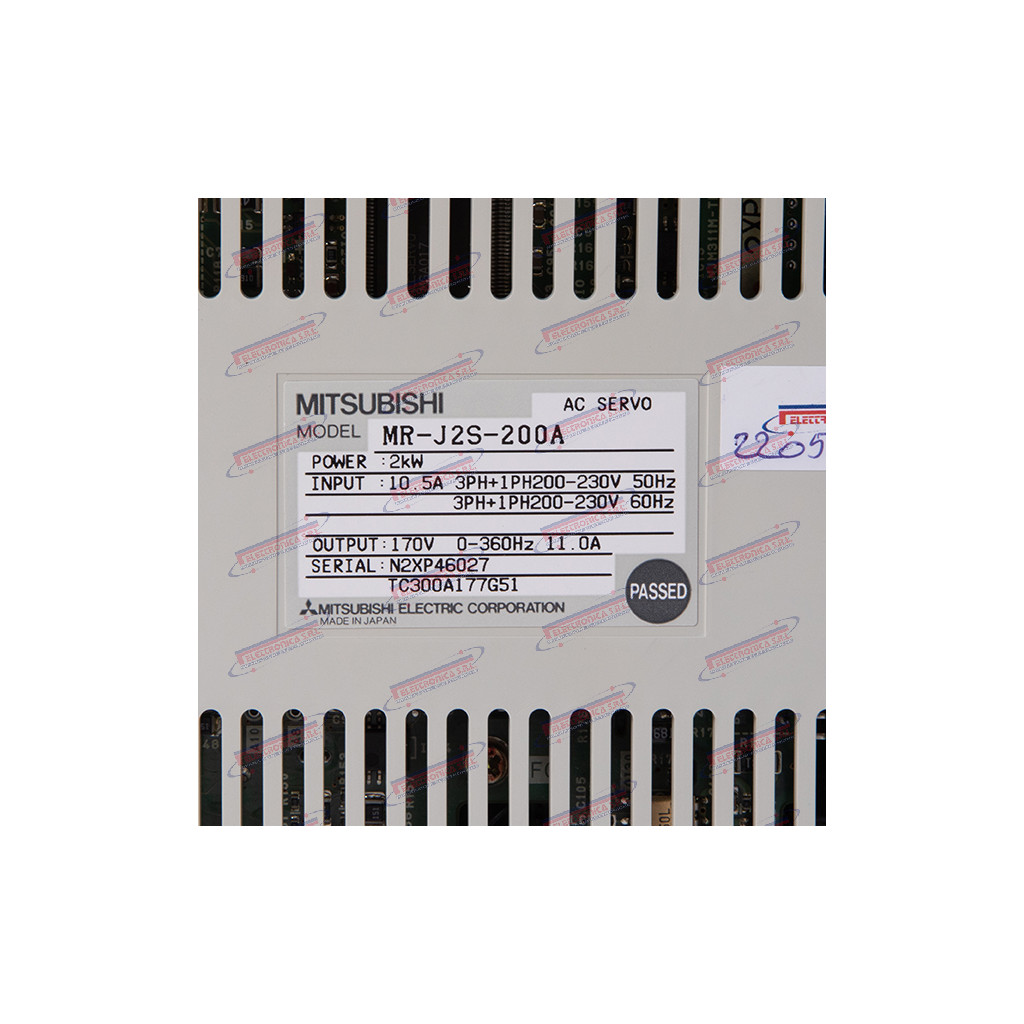

Servo Amplifier 2 kW – MITSUBISHI MR-J2S-200A

The MR-J2S-200A is a 2 kW digital servo amplifier (“Servo Amplifier”) belonging to the MELSERVO-J2-Super series by Mitsubishi Electric. Designed for CNC and industrial automation applications, it accepts pulse train or analogue commands and is compatible with brushless servo motors of the HC-KFS, HC-SFS and HF-SE families. The “A” suffix identifies the general-purpose variant (pulse/analogue interface), as opposed to the “B” version with SSCNET network. The drive integrates position, speed, and torque control modes in a single compact unit, with 17-bit serial incremental encoder feedback (131 072 p/rev).

The servo amplifier regulates in real time the position, speed, and torque of the CNC axis servo motor: it receives references from the numerical controller and closes the feedback loop via the motor encoder, ensuring precision and repeatability in machining movements. In the event of failure, the controlled axis becomes unmanageable — the machine enters alarm state and production halts until the drive is replaced or repaired.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation and CNC systems. The MELSERVO line has covered the high-performance servo drive segment for decades. The J2-Super series has been superseded by the MR-J4 and subsequently MR-J5 series; this product is therefore legacy / discontinued, still available as used, NOS (new old stock), or through specialist repair centres.

Main Technical Specifications

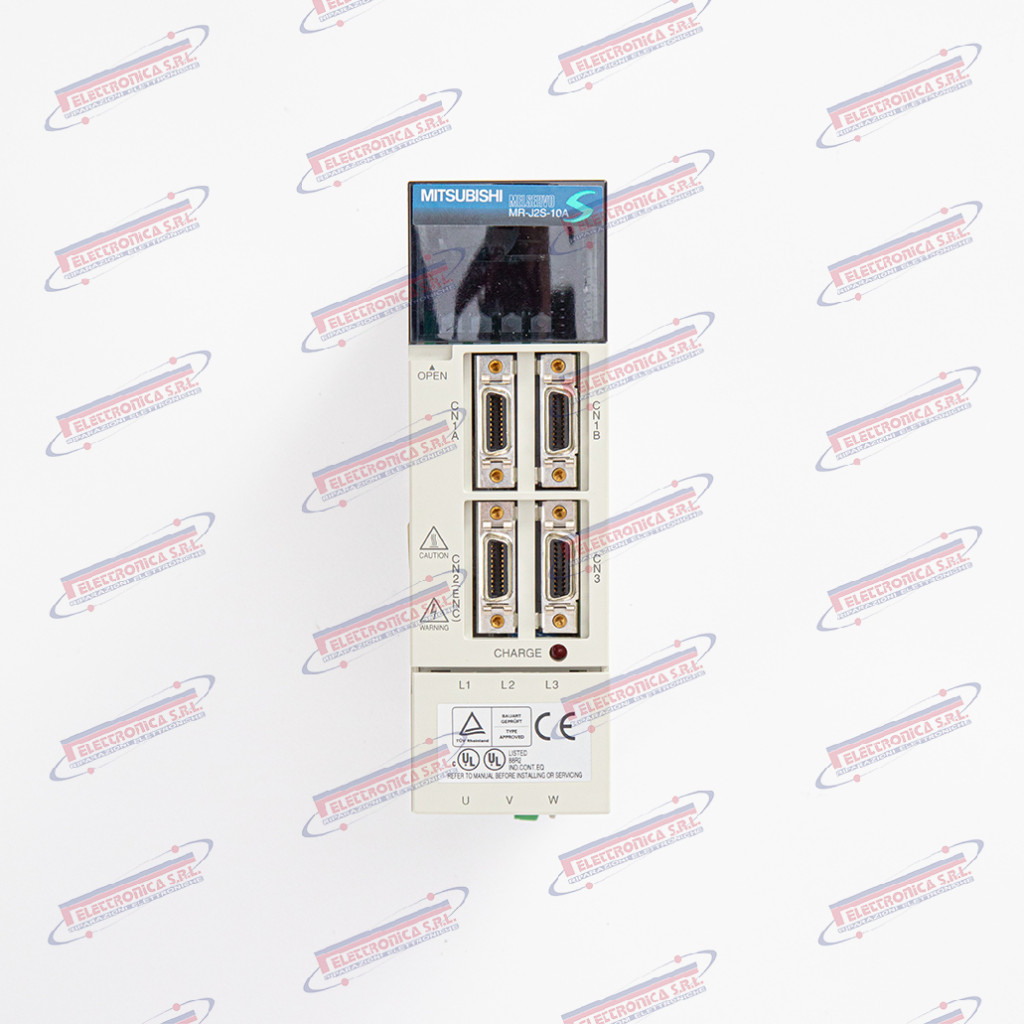

AC Servo Drive 100 W – MITSUBISHI MR-J2S-10A

The MR-J2S-10A is a 100 W AC servo amplifier (“Servo Amplifier”) from the MELSERVO-J2S series (J2 Super), manufactured by Mitsubishi Electric. It is designed for position, speed, and torque control in CNC machine tools, industrial robots, and general automation systems. The suffix A denotes a General-Purpose analog/pulse-train interface, compatible with HC-KFS and HC-MFS series 100 W brushless servo motors. It supports a high-resolution 17-bit encoder (131,072 pulses/rev) and RS-232C serial communication for setup via the MR Configurator software.

The servo amplifier is the power and control unit that regulates in real time the position, speed, and torque of the connected servo motor: it interprets commands from the CNC or PLC as a pulse train or analogue signal and closes the regulation loops to ensure precise, repeatable motion. A failure of the MR-J2S-10A completely stops the controlled axis, rendering the machine inoperable until the unit is replaced or repaired.

Mitsubishi Electric is one of Japan’s leading companies in industrial automation and motion control, part of the Mitsubishi Group. The MELSERVO-J2S line was widely adopted worldwide throughout the 1990s and 2000s; the entire series is now legacy / discontinued, officially superseded by the MR-J4 and MR-J5 series. Used spare units and specialist repair services remain available on the secondary market.

Main Technical Specifications

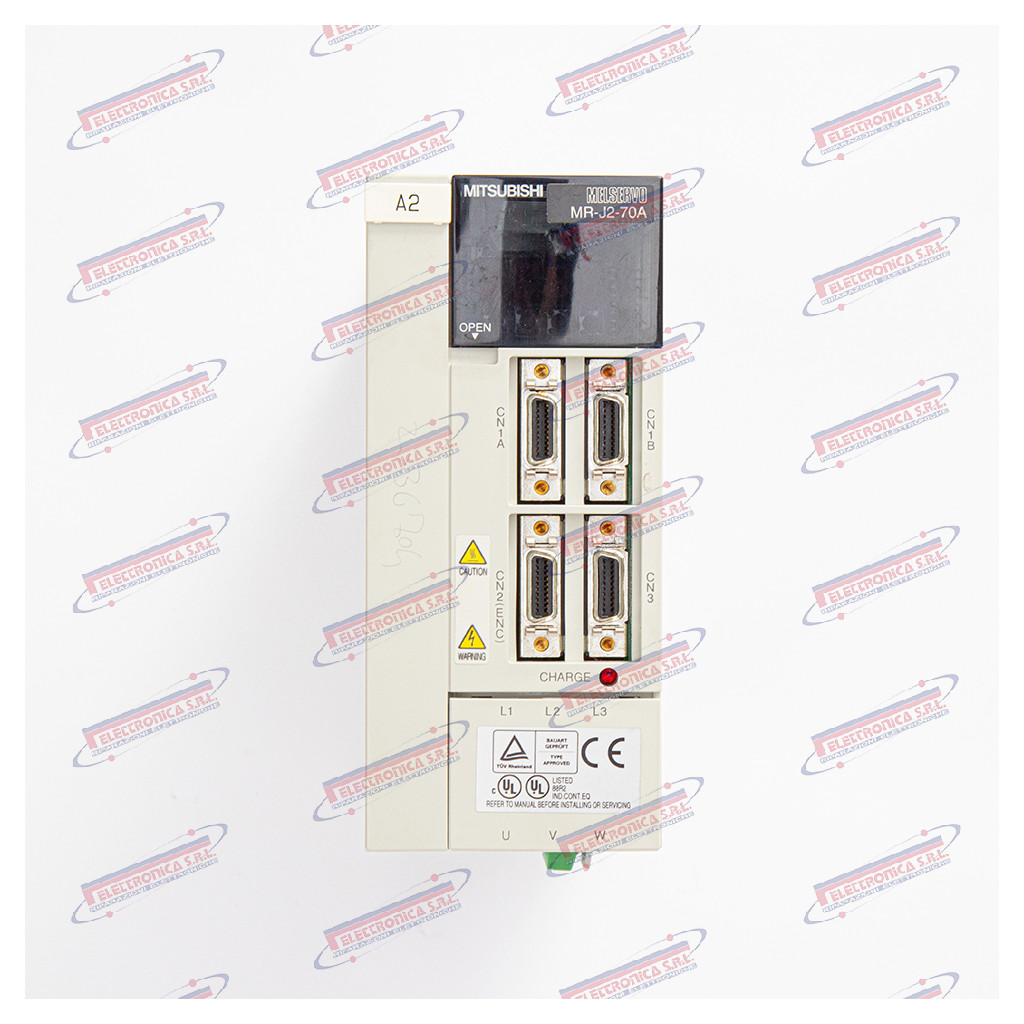

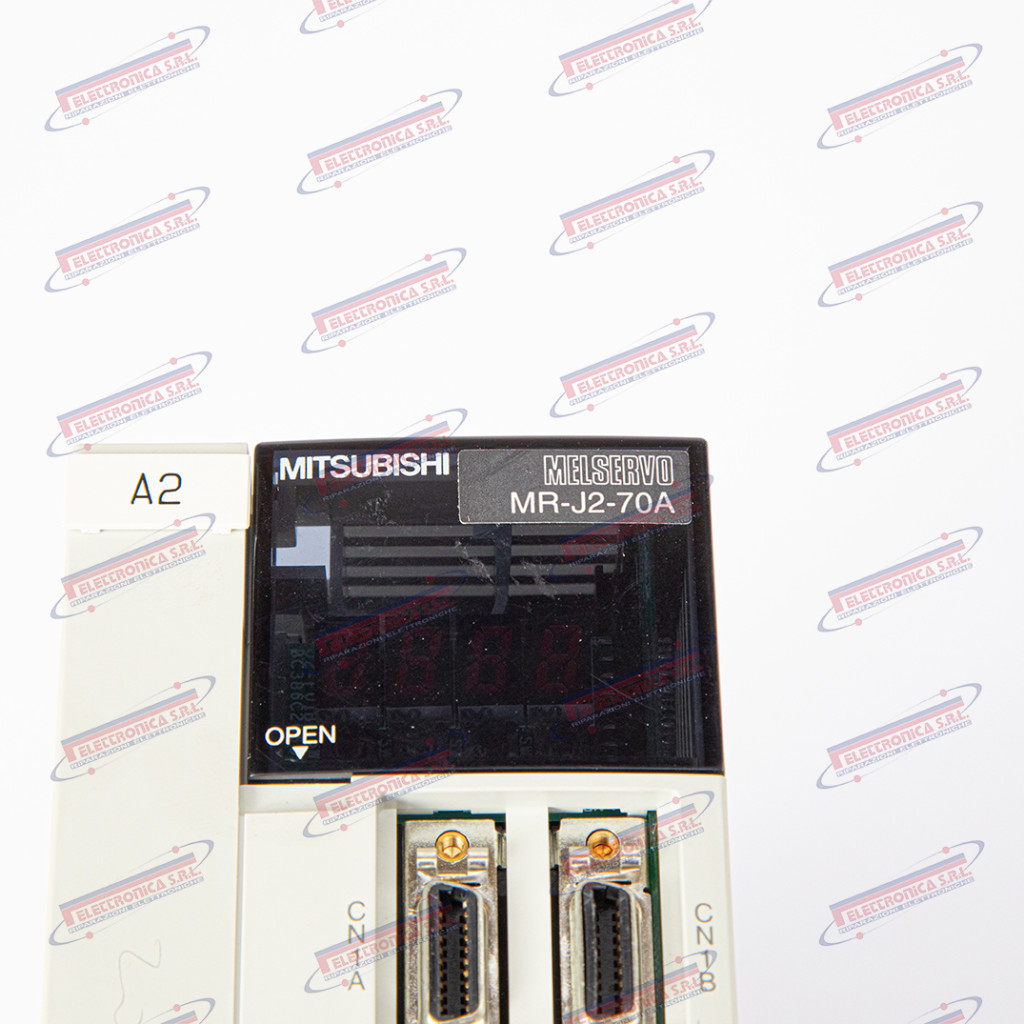

700 W AC Servo Drive – MITSUBISHI MR-J2-70A

The MR-J2-70A is a 700 W AC servo amplifier (“AC Servo Amplifier”) from the MELSERVO-J2 series manufactured by Mitsubishi Electric. It provides position, speed, and torque control of AC servo motors, accepting pulse train input for positioning mode and a ±10 V analogue reference for speed/torque modes. It is compatible with HC-KFS and HC-MFS family servo motors of the J2 series. The CN3 connector enables parameter configuration via RS-232C or RS-422 and real-time status monitoring.

The servo drive is the component that closes the control loop between the CNC controller and the servo motor: it receives the position or speed reference, reads the encoder feedback, and generates the current required to move the machine axis with precision. A failure of the MR-J2-70A results in the immediate stop of the controlled axis, rendering the machine inoperable: no motion can be performed without a functioning drive.

Mitsubishi Electric is a Japanese company with over a century of history in industrial automation and motion control. The MELSERVO-J2 series was one of the most widely deployed servo platforms of the 1990s and 2000s on CNC machines, robots, and automation systems worldwide. The J2 family is now legacy / discontinued, progressively replaced by the J2S, J3, J4, and J5 series: availability is limited to the used, surplus, and specialist repair market.

Main Technical Specifications

Servo Amplifier 3.5 kW – MITSUBISHI MR-J2-350CT

The MR-J2-350CT is a servo amplifier (“Servo Amplifier”) from the MELSERVO-J2 series by Mitsubishi Electric, with a rated output of 3.5 kW. The CT suffix identifies a specific configuration variant of the base MR-J2-350 model, documented on CNC machine tools equipped with Mitsubishi servo motors on feed axes. The unit manages position, speed, and torque regulation loops, interfacing between the CNC controller and the servo motor via encoder feedback; it supports combined command modes (position/speed/torque). It belongs to the MELSERVO-J2 generation, predecessor to the MR-J2S, MR-J3, MR-J4, and MR-J5 lines.

The servo amplifier is the electronic power controller that converts motion commands from the CNC — position, speed, and torque references — into the three-phase current required to drive the axis servo motor. It closes the regulation loop at high frequency to ensure positioning accuracy and dynamic response. A fault in this component causes immediate axis shutdown: the machine cannot execute machining operations or positioning moves, and an alarm is triggered on the CNC unit.

Mitsubishi Electric is one of Japan’s leading industrial electronics manufacturers, with a leading position in factory automation, motion control, and CNC systems (MELDAS and MELSERVO lines). The MELSERVO-J2 series has been progressively superseded by the J2S, J3, J4, and J5 families; all MR-J2 products are currently legacy / discontinued: available only as used, NOS (new-old-stock), or through specialist repair services.

Main Technical Specifications

AC Servo Drive 2 kW – MITSUBISHI MR-J2-200CT

The MR-J2-200CT is a 2.0 kW AC servo amplifier (“AC Servo Amplifier”) manufactured by Mitsubishi Electric, belonging to the MELSERVO-J2 series. The “CT” suffix identifies the specific command interface variant. The drive is designed to control AC servo motors from the HC-SF and HC-RF families by Mitsubishi, and is typically integrated in CNC machining centres, transfer machines, and industrial automation systems using MELDASMAGIC or compatible CNC controllers. It manages the three regulation loops (position, speed, current) and supports high-resolution serial encoders. Hardware variants and revisions exist; motor compatibility must be verified before replacement.

The servo drive is the core of the motion system in a CNC machine: it receives the position or speed command from the numerical control, compares the signal with the feedback from the motor encoder, and generates the current required to instantly correct any deviation. On the MR-J2-200CT at 2 kW, a failure results in the complete inability to control the driven axis: the machine triggers an alarm, the axis is disabled, and production halts until the unit is replaced or repaired.

Mitsubishi Electric is one of Japan’s leading electronics and industrial automation companies, founded in 1921. The MELSERVO division has been producing servo drives since the late 1980s; the J2 series was introduced in the 1990s and has since been succeeded by MR-J2S, MR-J3, MR-J4, and MR-J5. The MR-J2-200CT is legacy / discontinued: available only as used, NOS surplus, or through specialist repair services.

Main Technical Specifications

CNC Spindle Drive Amplifier – Mitsubishi MDS-CH-SPH-260

The MDS-CH-SPH-260 is a digital spindle drive amplifier (“Spindle Drive Amplifier”) from the MDS-CH series by MITSUBISHI ELECTRIC, designed for MELDAS CNC systems (e.g. MELDAS 64, MELDAS 700, MELDAS 720/730). The part number identifies the SPH family (Spindle High-performance) with power class 260, corresponding to a nominal output of approximately 26 kW. The unit integrates a PWM converter, digital speed and torque regulation loops, and communicates with the CNC controller via a high-speed fibre-optic link.

The MDS-CH-SPH-260 is the power and control module that converts the CNC’s digital references into actual speed and torque at the spindle motor, managing acceleration, steady-state speed during machining, and regenerative braking. A failure in this unit makes the spindle completely unusable with an immediate machine stoppage; typical symptoms include overcurrent, overtemperature, or encoder feedback loss alarms.

MITSUBISHI ELECTRIC is one of the world’s leading manufacturers of industrial automation and CNC systems: its FA division has produced MELDAS controllers and the MDS drive family (servo and spindle) for over forty years. The MDS-CH series represents a generation of compact, highly integrated drives; models in this family are to be considered legacy / discontinued, available only as used, NOS, or through specialist reconditioning.

Main Technical Specifications

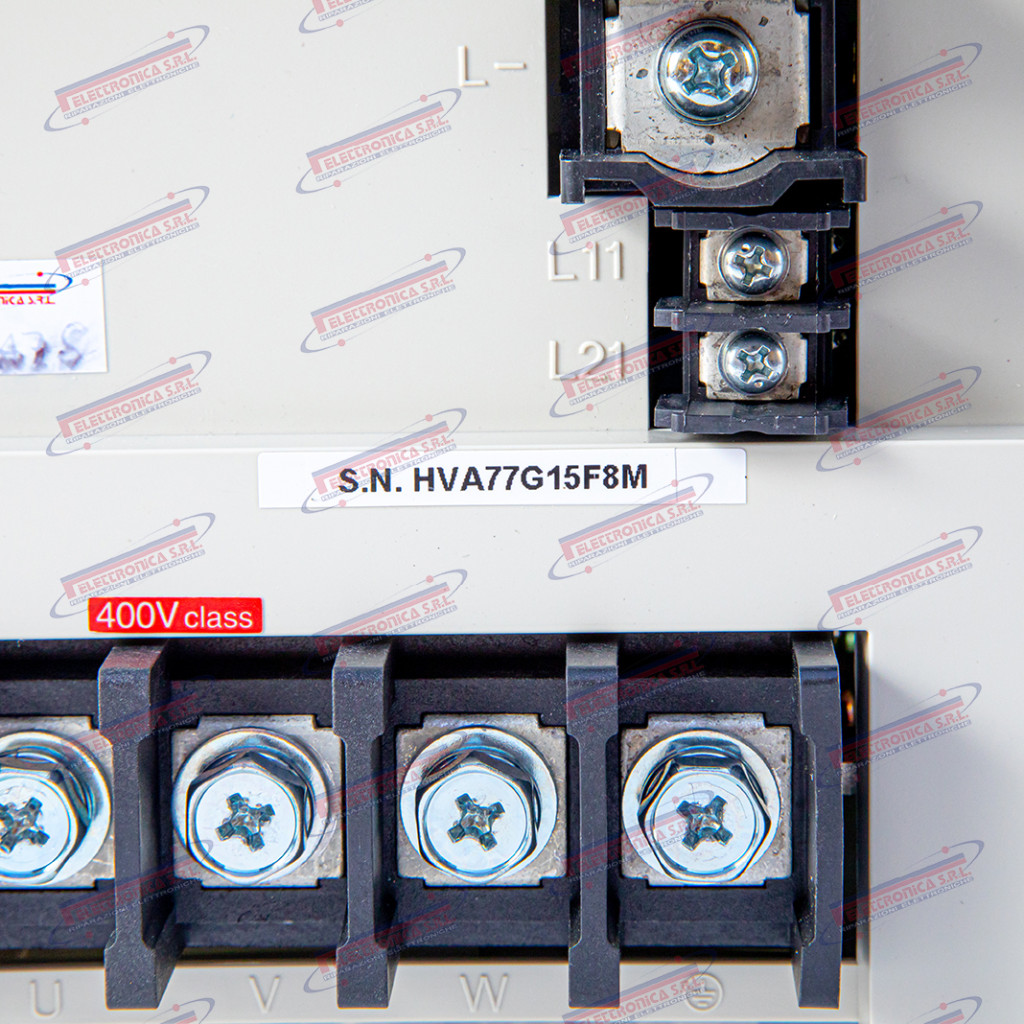

AC Spindle Drive – MITSUBISHI MDS-C1-V2-3520

The MDS-C1-V2-3520 is an AC spindle drive unit (“AC Spindle Drive”) manufactured by Mitsubishi Electric, belonging to the MDS-C1 series for MELDAS CNC systems. Designed for vector control of the AC spindle motor, the module integrates speed and torque regulation loops and interfaces the CNC controller with the motor stage via SSCNET (Serial Servo Control Network) bus or analogue reference ±10 V. The suffix V2-3520 identifies the variant with rated power in the 35 kVA range, intended for medium-to-high power applications on machining centres and CNC lathes. The module may feature hardware variants (revisions) and requires parameter configuration through the paired CNC controller.

The spindle drive is the core of spindle motor control: it receives the speed reference from the CNC, closes the regulation loop in feedback, and generates the three-phase currents needed to maintain stable and precise rotation during machining. A failure of the unit makes the spindle completely uncontrollable, with immediate loss of production capability; even partial anomalies result in speed instability, torque variations, and dimensional defects on the workpiece.

Mitsubishi Electric is one of the world’s leading industrial automation equipment manufacturers, headquartered in Tokyo, founded in 1921. The FA (Factory Automation) division produces MELDAS CNC systems, servo drives, motors, and PLCs widely adopted in the global machining industry. The MDS-C1 series is legacy / discontinued: superseded by the MDS-D1, MDS-DH2, and MDS-EX generations, it is today available exclusively as used parts, NOS surplus, or through specialist repair centres.

Main Technical Specifications

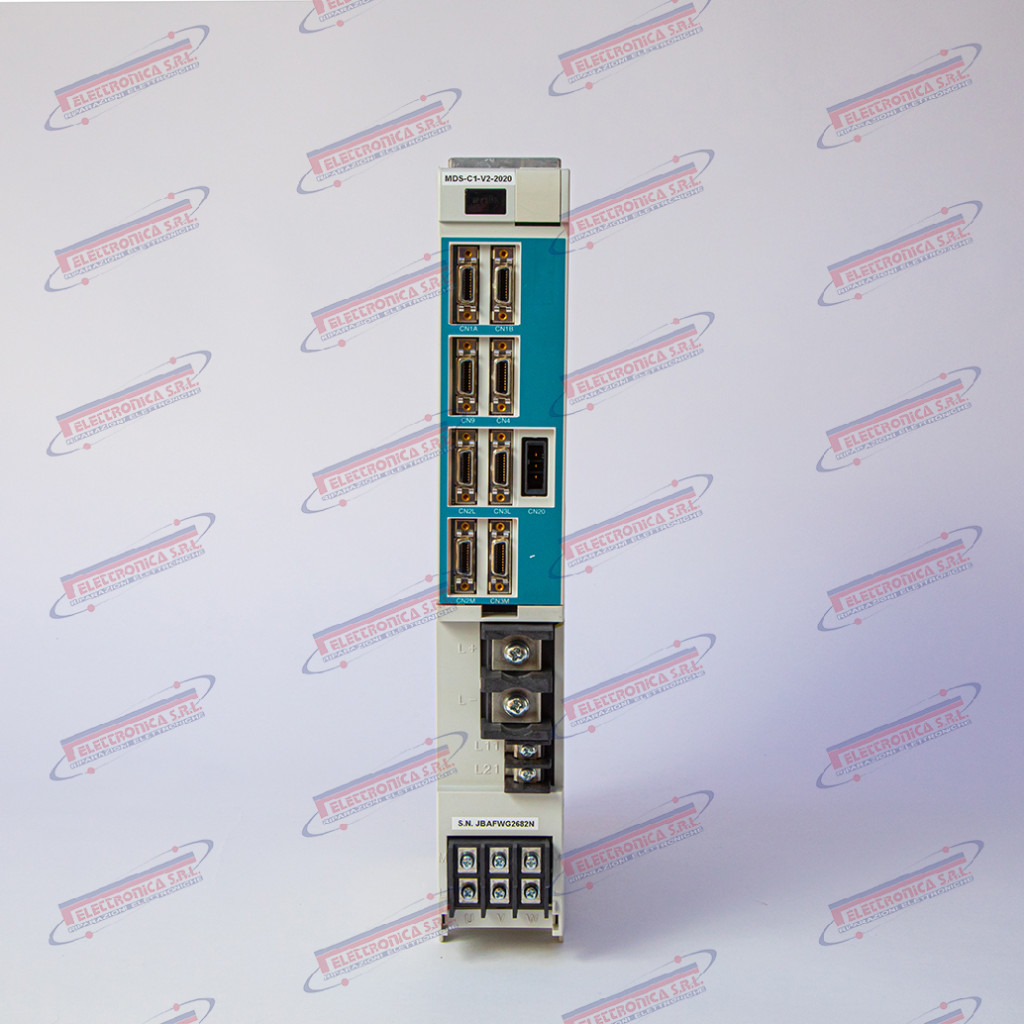

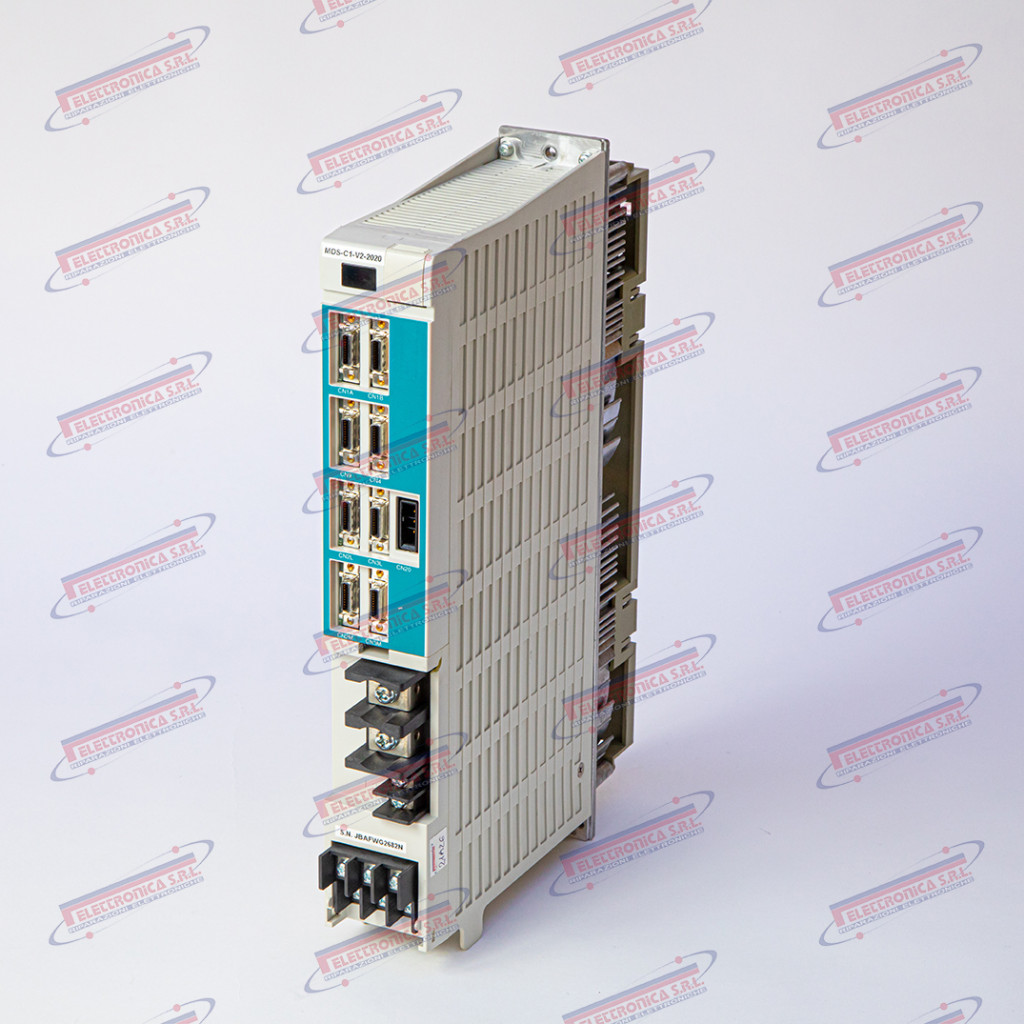

Dual-Axis Servo Drive – Mitsubishi MDS-C1-V2-2020

The MDS-C1-V2-2020 is a dual-axis servo amplifier (“Dual-Axis Servo Amplifier”) manufactured by Mitsubishi Electric, belonging to the MDS-C1 series. It is documented as a component of Mitsubishi CNC systems including MELDAS 600, M64, M65 and related series. The V2 suffix denotes dual-axis configuration (two servo motors driven by a single module), while 2020 identifies the rated output current of 20 A per axis. Communication with the CNC controller is via the SSCNET optical serial bus (Servo System Controller NETwork), providing high immunity to electromagnetic interference. The module is compatible with Mitsubishi servo motors of the HF and HA series.

The MDS-C1-V2-2020 servo drive closes the position, speed, and current loops on two servo axes simultaneously: it receives position references from the CNC via SSCNET and generates the drive current required by the motors to execute interpolated axis movements with high precision. A failure of this module causes the immediate shutdown of both controlled axes, making any machining operation impossible until the unit is repaired or replaced.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, industrial drives, and factory automation, with over a century of history in the electronics industry. The MDS-C1 series has been progressively replaced by the MDS-D and MDS-E/EX series; all MDS-C1 family products are therefore legacy / discontinued and available only as used, NOS (New Old Stock), or through specialist repair services.

Main Technical Specifications

Single-Axis Servo Drive – MITSUBISHI MDS-C1-V1-90

The MDS-C1-V1-90 is a single-axis servo amplifier (“Single Axis Servo Amplifier”) from the MDS-C1 series by Mitsubishi Electric, a core component of the axis drive architecture for Mitsubishi M64, M65, and M66 CNC systems. The suffix V1 identifies the single-axis variant, while the value 90 denotes the rated output current (90 A), intended to drive medium-to-high-power servo motors. The unit operates together with the MDS-C1-CV bus power supply and interfaces directly with the CNC control CPU via a dedicated serial bus (SHJ / SSCNET). No publicly documented revision variants are known, though units with updated firmware may exist.

The servo drive is the module that receives position and speed references from the CNC CPU and closes the regulation loop on the axis servo motor: it continuously compares the encoder-detected position with the target, supplying the current required to track the commanded trajectory and torque. A drive failure completely disables the associated axis, bringing the machine to a standstill; at startup it typically triggers position alarms, trajectory deviations, or emergency stops.

Mitsubishi Electric is one of Japan’s largest industrial automation groups, headquartered in Tokyo; its Mitsubishi CNC division has designed numerical control systems and drives since the 1970s. The MDS-C1 series dates from the late 1990s and is now legacy / discontinued: available exclusively as used/surplus or through specialist repair services.

Main Technical Specifications

Spindle Drive Amplifier CNC – MITSUBISHI MDS-C1-V1-70

The MDS-C1-V1-70 is a spindle drive amplifier (“Spindle Drive Amplifier”) from the MDS-C1 series by Mitsubishi Electric, designed for MELDAS CNC systems (M60, M64, M65, M68, M700). The unit controls the AC spindle motor in speed and torque, receiving references from the CNC via the proprietary MDS serial bus. The designation V1 identifies the vector-controlled spindle drive family within the C1 series; the suffix 70 indicates the power rating (nominally ~7.0 kW continuous output). Compatible with Mitsubishi spindle motors of the SJ and HF series; can be integrated in multi-axis configurations with a common power supply unit MDS-C1-CV.

The MDS-C1-V1-70 spindle drive amplifier is the power and regulation unit that translates the MELDAS CNC speed commands into phase current on the spindle motor, keeping the speed loop stable under variable load. It is a critical process component: a failure causes immediate spindle shutdown and total loss of speed control, rendering the machine unusable for any machining operation.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems and drives for machine tools, with the MELDAS line active since 1970. The MDS-C1 series was produced between the 1990s and early 2000s, subsequently replaced by the MDS-D/DH series. All MDS-C1 products are legacy / discontinued: no longer available new through official channels, obtainable only as used, surplus or through specialist repair.

Main Technical Specifications

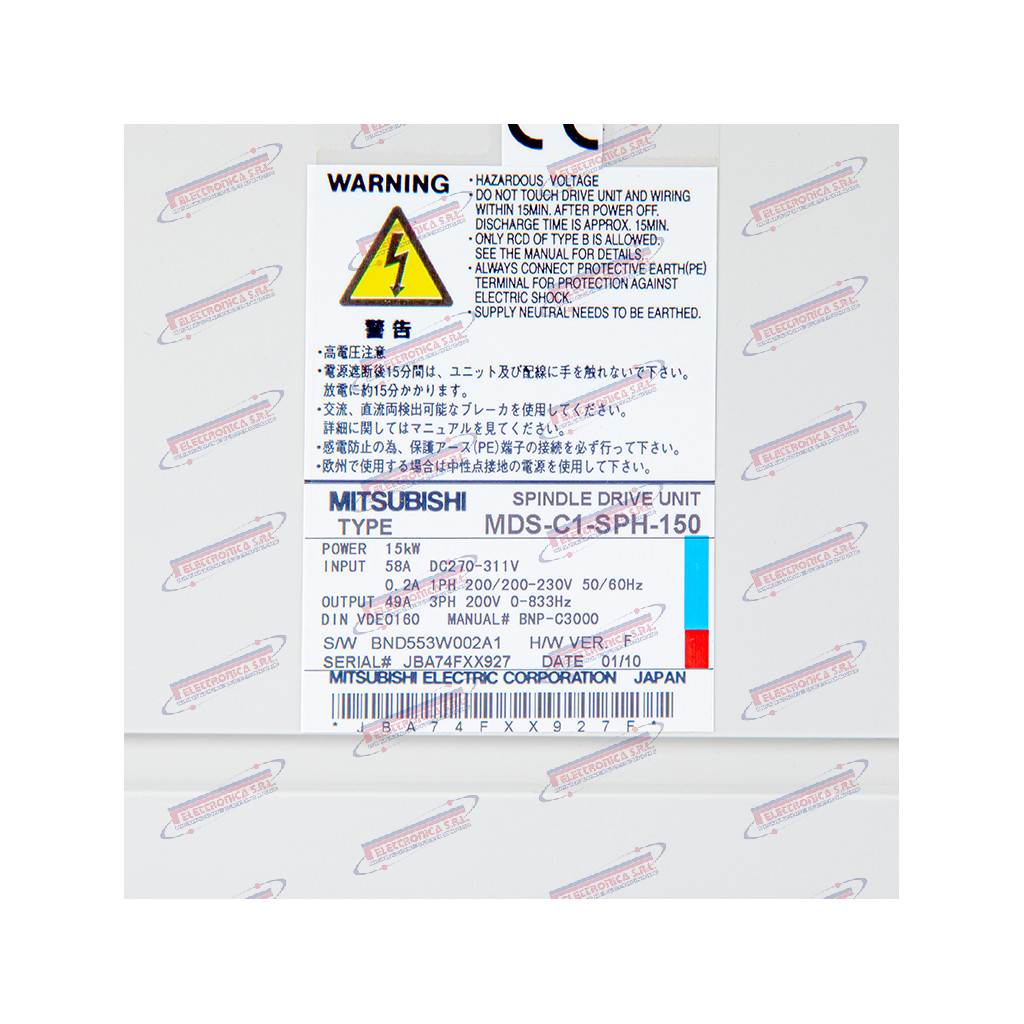

AC Spindle Drive Amplifier – MITSUBISHI MDS-C1-SPH-150

The MDS-C1-SPH-150 is an AC spindle drive amplifier (“AC Spindle Drive Amplifier”) from the MDS-C1 series by Mitsubishi Electric, designed for MELDAS CNC systems (series M60, M64, M65, M70, C64). The designation SPH identifies the high-power variant of the spindle drive, while the suffix 150 indicates a nominal output of approximately 15 kW. The module belongs to a family of fiber-optic serial communication drives that integrate directly with the CNC unit without separate analogue feedback wiring.

The MDS-C1-SPH-150 spindle drive amplifier converts fixed-frequency mains AC power into variable-frequency, variable-voltage three-phase output to drive the spindle motor at the speed reference commanded by the CNC. It manages both the speed and current control loops, ensuring stable torque and rotation throughout the machining process. A failure of this module causes complete loss of spindle control, making it impossible to start any machining cycle and causing an immediate machine stop.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation and CNC systems, with over a century of history in the electrical and automation sector. The MDS-C1 series was widely deployed in CNC machining centres and lathes from the late 1990s through the 2000s, and is now legacy / discontinued: official support is limited and components are available only as used/surplus or through specialist repair services.

Main Technical Specifications

Spindle Drive Amplifier – MITSUBISHI MDS-C1-SP-300

The MDS-C1-SP-300 is a spindle amplifier (“Spindle Drive Amplifier”) from the MDS-C1 series manufactured by Mitsubishi Electric, designed for vector control of spindle motors in industrial CNC systems. With a rated output of 30 kW, it belongs to the high-power range of the MDS-C1-SP family and is documented as a component of Mitsubishi MELDAS M60/M64 CNC systems. The module manages the current and speed regulation loops of the spindle motor via the proprietary SSCNET (Serial Servo Communication Network) serial bus, interfacing directly with the CNC unit. The internal part number is MDSC1SP300.

The MDS-C1-SP-300 spindle amplifier is the electronic core of spindle control: it receives speed and torque references from the CNC via the SSCNET bus and precisely regulates the current delivered to the motor, ensuring rapid acceleration, stable cutting speed maintenance, and controlled braking. If the unit fails, the spindle becomes uncontrollable: the machine triggers an emergency stop and production halts completely, with a critical impact on downtime.

Mitsubishi Electric is one of the world’s leading manufacturers of drives and CNC systems for machine tools, with decades of experience in industrial motion control. The MDS-C1 series was introduced in the 1990s and is widely fitted on machining centers, milling machines, and lathes from numerous OEM builders. This series is legacy / discontinued: it has been progressively superseded by the MDS-D, MDS-D2, and subsequently MDS-EX series; spare parts are available only as used, surplus, or through specialist repair.

Main Technical Specifications

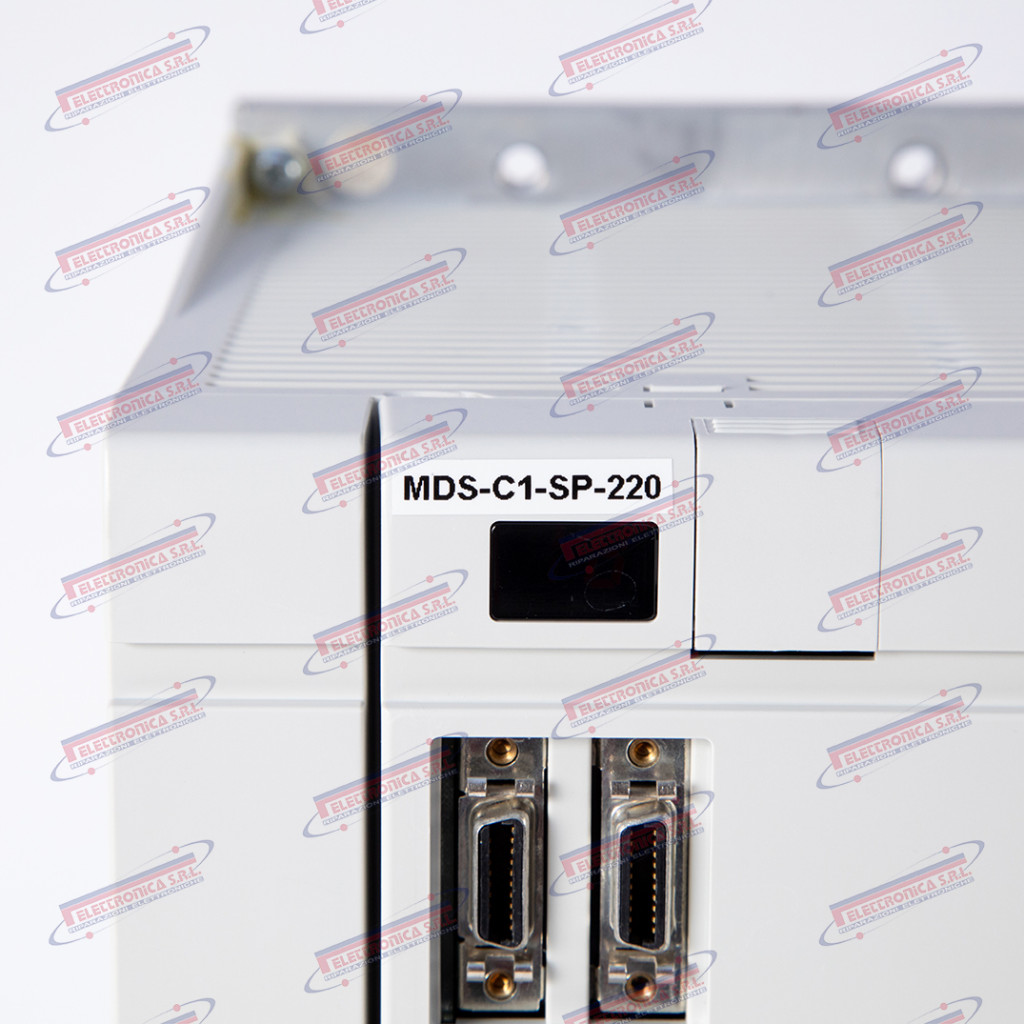

AC Digital Spindle Drive Amplifier – MITSUBISHI MDS-C1-SP-220

The MDS-C1-SP-220 is an AC digital spindle drive amplifier (“AC Digital Spindle Drive Amplifier”) manufactured by Mitsubishi Electric, belonging to the MDS-C1-SP series. It is documented as a component of CNC systems equipped with MELDAS controllers (series M64, M700, M720 and related) on machining centres, CNC lathes, and milling centres. The unit manages vector control of speed and torque of the AC spindle motor, receiving commands from the CNC unit via a serial fiber-optic link. The suffix SP identifies the spindle family (“Spindle”), while the number 220 indicates the rated current class; variants in the series include SP-80, SP-150, SP-220, and SP-300.

The spindle drive amplifier converts the speed reference sent by the CNC unit into variable-frequency AC power delivered to the spindle motor, maintaining stable and precise speed and torque throughout machining. It is the critical component in the spindle control loop: a failure causes immediate spindle shutdown and complete machine downtime, making any machining operation impossible until the unit is replaced or repaired by a specialist.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation systems, CNC controllers (MELDAS / MELDASMAGIC range) and MDS-series drives. The MDS-C1 series has been progressively replaced by the MDS-C2, MDS-D, and MDS-E series; products in the C1 family are therefore legacy / discontinued and available only as used, NOS/surplus, or through specialist repair.

Main Technical Specifications

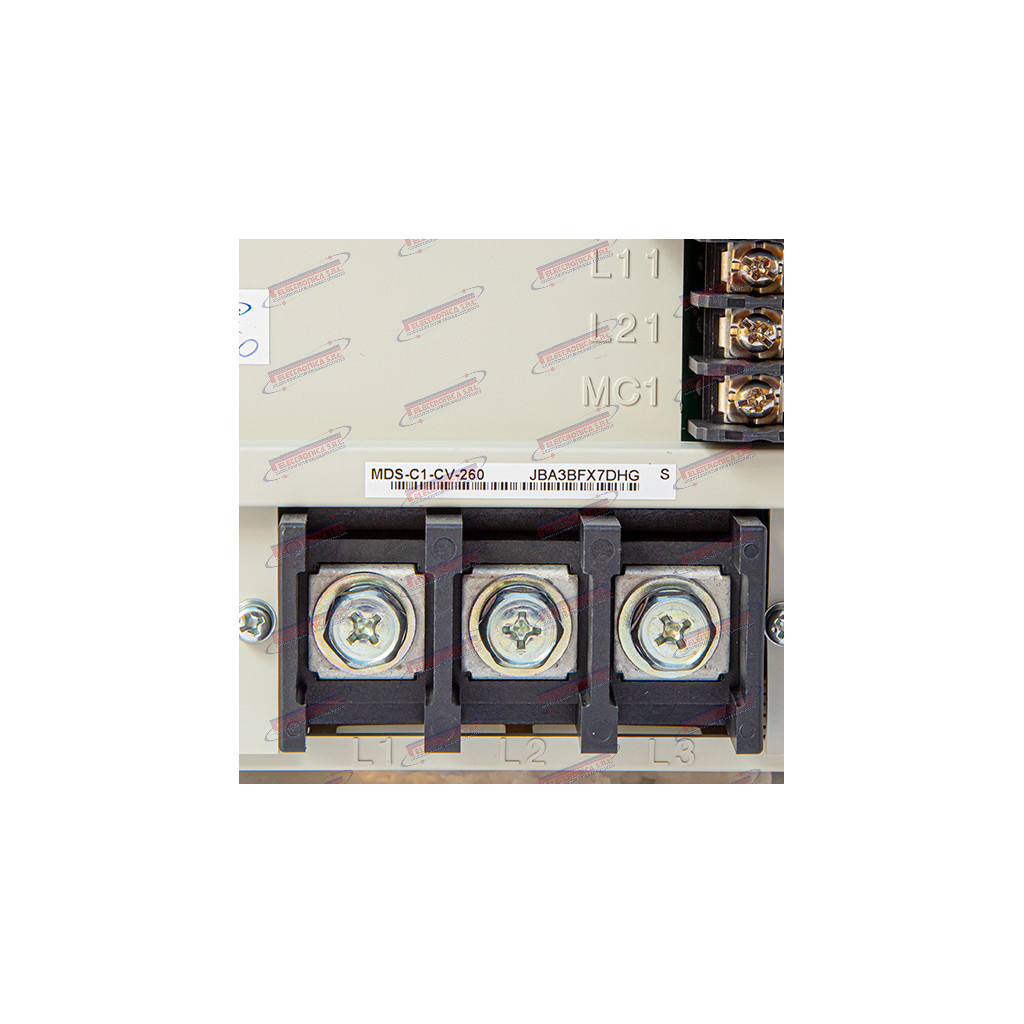

DC Bus Converter Unit – Mitsubishi MDS-C1-CV-260

The MDS-C1-CV-260 is a DC bus converter unit (“DC Bus Converter Unit”) from the MDS-C1 series, manufactured by Mitsubishi Electric. It is part of the MELSERVO MDS-C1 drive system, designed for Mitsubishi CNC controllers of the M640, M64 and compatible series, used on machining centres, lathes and CNC milling machines. The unit converts three-phase AC mains voltage into a stabilised DC bus voltage, which in turn powers the servo (SV) and spindle (SP) amplifier units connected in parallel on the same internal bus. The suffix 260 denotes the nominal capacity; other ratings are available within the MDS-C1-CV family.

The MDS-C1-CV-260 converter is the heart of the drive system power plant: without it, neither the servo axes nor the spindle can receive power, leaving the machine completely inoperable. In addition to supplying the DC bus to the connected amplifiers, the unit manages regenerative braking, returning to the mains the kinetic energy generated by the axes during deceleration and reducing overall energy consumption. A fault in the CV unit immediately triggers a DC bus alarm and a total loss of motion across all machine axes.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, drives and industrial automation, active in the machine tool sector with the MELDAS / MELDASMAGIC line and the MDS drives. The MDS-C1 series has been superseded by the MDS-D2 and MDS-EJ / EX families; all C1 series products are therefore legacy / discontinued and available exclusively as used, surplus or through specialist repair services.

Main Technical Specifications

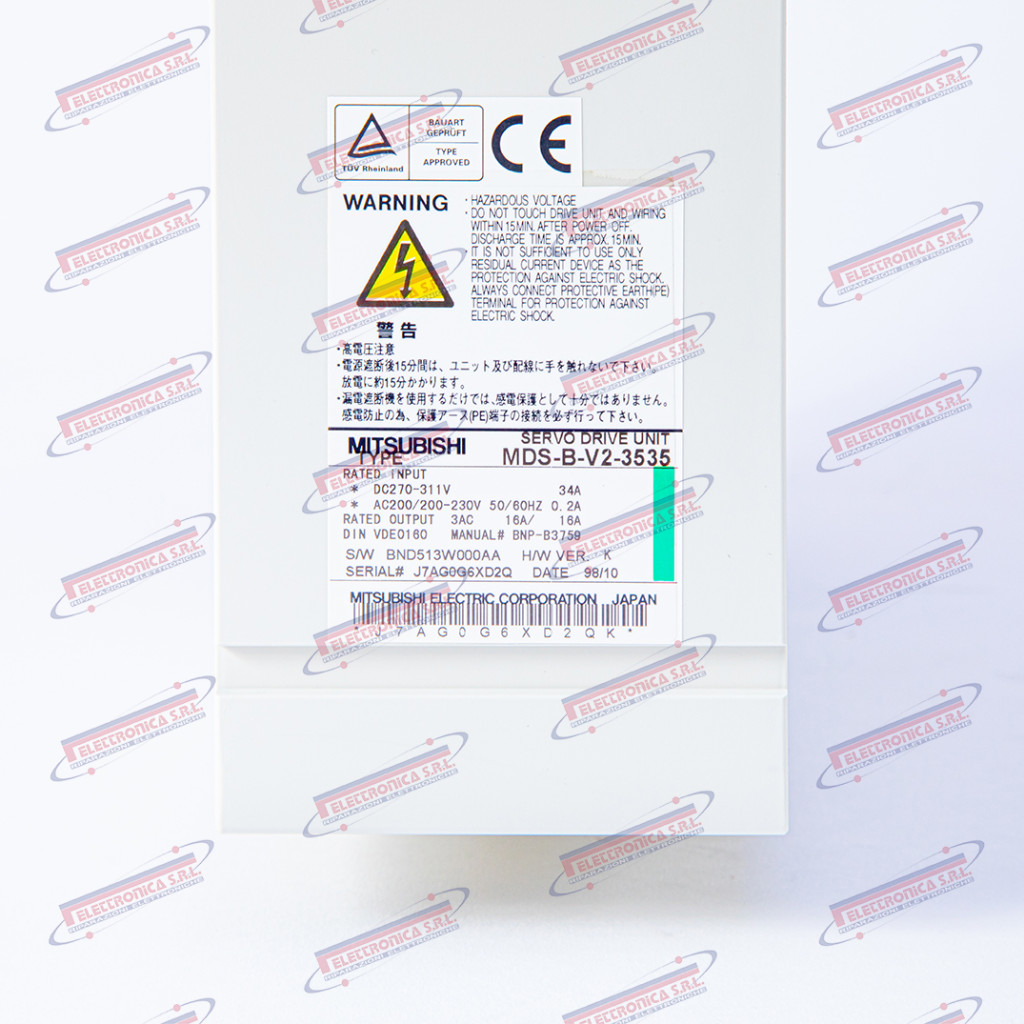

Dual-Axis Servo Amplifier – MITSUBISHI MDS-B-V2-3535

The MDS-B-V2-3535 is a dual-axis AC servo amplifier (“Dual-Axis Servo Amplifier”) from the MDS-B family by Mitsubishi Electric, designed to drive two servo motor axes independently and simultaneously. The designation V2 identifies the dual-channel variant, while 3535 indicates a rated continuous current of 35 A per axis. The drive integrates into Mitsubishi CNC systems (M60, M64, M65, M70, M700 series) via the high-speed fibre-optic serial bus SSCNET (Serial Servo Communication NETwork), providing high-bandwidth communication and immunity to the electromagnetic interference typical of the machine tool environment.

The servo amplifier is the component that converts position, speed and torque references generated by the CNC into current delivered to the axis motors, closing the position, speed and current loops in real time. A failure of the MDS-B-V2-3535 immediately disables control of one or both managed axes: the machine raises an alarm and cannot continue machining, with consequent risk of scrapping the workpiece in progress and prolonged production downtime.

Mitsubishi Electric is one of the main divisions of the Mitsubishi group, active in industrial automation, CNC systems and drives for over fifty years. The FA (Factory Automation) division produces integrated systems — CNCs, amplifiers and servo motors — widely regarded as a benchmark for reliability and high-speed performance. The MDS-B family in its older variants is to be considered legacy / discontinued: spare part availability is primarily ensured through the used market, reconditioning programmes and specialist repair services.

Main Technical Specifications

Dual-Axis Servo Drive – MITSUBISHI MDS-B-V2-1010

The MDS-B-V2-1010 is a dual-axis servo drive unit (“Dual-Axis Servo Drive Unit”) from the MDS-B series manufactured by Mitsubishi Electric. It is documented as a component of CNC systems with Mitsubishi M64, M65, M640, M650 controllers and other systems compatible with the SSCNET bus. It provides full digital control of torque, speed and position for two servo motor axes simultaneously, operating in conjunction with the MDS-B-CV converter unit which supplies the shared DC bus. The V2 suffix designates the two-axis configuration; the code 1010 indicates a rated current of 10 A per axis.

The dual-axis servo drive is the core of the machine’s axis control: it receives position references from the CNC via SSCNET, closes the current, speed and position loops on each motor, and ensures the synchronisation required for accurate interpolation. A failure of the MDS-B-V2-1010 renders both controlled axes inoperative, completely halting machining and triggering position or overcurrent alarms on the operator panel.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, servo motors and drives for machine tools. The MDS-B series was produced from the late 1990s to the early 2000s and is now legacy / discontinued, superseded by the MDS-C1, MDS-D and MDS-EJ series. Spare parts are available exclusively as used, surplus or through specialist repair centres.

Main Technical Specifications

Spindle Servo Drive – MITSUBISHI MDS-B-V1-70

The MDS-B-V1-70 is a spindle amplifier (“Spindle Amplifier”) from the MDS-B series (Motion Drive System – B series) by MITSUBISHI Electric, designed for closed-loop control of the spindle motor in MELDAS CNC systems. The V1 suffix identifies a single-spindle unit; the value 70 denotes the rated output current class (≈ 70 A, corresponding to approximately 7–14 kW depending on the coupled motor). The module is documented on vertical and horizontal machining centres, CNC lathes, and grinding machines from various OEM builders — including Mori Seiki, Mazak, and DMG — using the MELDAS M600 / M700 platform and related systems.

The MDS-B-V1-70 spindle servo drive closes the speed and current loop on the spindle motor: it receives the speed reference from the CNC via the proprietary MDS serial bus and regulates the output torque to maintain stable rotation under varying load during machining. A failure renders the spindle uncontrollable, prevents any machining cycle, and may trigger overcurrent or overtemperature alarms that halt the entire machine.

MITSUBISHI Electric is one of the world’s leading manufacturers of industrial automation systems, CNC controllers, and machine tool drives; its FA (Factory Automation) division has developed the MELDAS line since the 1970s across multiple product generations. The MDS-B series is an established generation now progressively superseded by the MDS-C1, MDS-D, and MDS-E series; MDS-B products are to be considered legacy / discontinued.

Main Technical Specifications

Single-Axis Servo Drive – Mitsubishi MDS-B-V1-45

The MDS-B-V1-45 is a single-axis AC servo amplifier (“Single-Axis AC Servo Amplifier”) from the MDS-B series by Mitsubishi Electric, designed for MELDAS CNC systems (600/700 series). It receives commands from the CNC controller via the proprietary SSCNET fiber-optic serial network and drives the AC servo motor of the interpolated axis. The “V1” designation indicates a single-axis drive; “45” denotes the rated output current (45 A). An external MDS-B-CV power supply unit is required for the DC bus voltage. Compatible with Mitsubishi HC-SF and HA-LF servo motors.

The servo drive is the core of each CNC axis: it receives position and speed references from the control unit and converts them into motor drive current, closing the position, speed, and current loops in real time. A fault in the MDS-B-V1-45 causes immediate axis shutdown with a CNC alarm; the machine cannot perform any machining operation until the drive is replaced or repaired.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems and motion control, with the MELDAS/MELSERVO product line active since the late 1970s. The MDS-B series was produced from the late 1990s to the early 2000s and is now considered legacy / discontinued, superseded by the MDS-C1, MDS-D, and MDS-E series; sourcing is possible only through used-parts channels, surplus stock, or specialist repair services.

Main Technical Specifications

Servo/Spindle Drive Amplifier – Mitsubishi MDS-B-V1-20

The MDS-B-V1-20 is a servo/spindle drive amplifier (“Spindle/Servo Drive Amplifier”) from Mitsubishi Electric’s MDS-B (Mitsubishi Drive System – B series) family. Designed to operate with MELDAS M64, M64S and M65 CNC controllers, it is documented on vertical machining centres and CNC lathes equipped with Mitsubishi systems. The unit implements vector control of motor current and speed, communicating with the CNC via SSCNET fibre-optic serial bus; the suffix 20 denotes the rated current class of the drive. It belongs to the V1 family, designed for variable-speed spindles with encoder feedback.

The servo/spindle drive amplifier is the power electronics unit that converts the CNC’s digital commands into precisely controlled motor current: it closes the speed and torque loops to ensure stable and accurate rotation during machining. A drive failure causes the immediate stoppage of the spindle or the axis it serves, rendering the machine completely inoperable; any attempt to run without precise regulation results in dimensional rejects, vibration and serious mechanical hazards.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation, CNC systems and servo drives, active in the electrical industry since 1921. The MDS-B series represents an established generation of CNC drives, now legacy / discontinued, superseded by the MDS-C1, MDS-D and MDS-EJ series; spare parts are available primarily as used stock, NOS from surplus inventory, or through specialist repair centres.

Main Technical Specifications

Single-Axis Servo Amplifier – MITSUBISHI MDS-B-V1-10

The MDS-B-V1-10 is a single-axis AC servo amplifier (“Single-Axis Servo Amplifier”) from the MDS-B series by Mitsubishi Electric, designed to drive AC servo motors in Meldas CNC systems (M64, M65, M66, M600 series and compatibles). The part number MDS-B-V1-10 identifies the single-axis variant (V1) with a 10 A rated current, three-phase 200–230 V AC supply, and optical fibre serial communication with the CNC unit. The drive manages the current, speed and position loops for a single axis (typically X, Y or Z) and is fully digital: regulation parameters are configured via the CNC with no analogue potentiometers.

The servo amplifier is the core of motion control for each linear or rotary axis of the machine tool: it receives position and speed references from the CNC via an optical fibre serial bus and closes the regulation loop on the motor, ensuring positioning accuracy, repeatability and dynamic response. A failure of the MDS-B-V1-10 causes complete loss of control of the corresponding axis, halting all machining operations and triggering a CNC “servo alarm” that brings the machine to a stop.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation systems, CNC controllers and servo drives. The MDS-B series was produced from the 1990s onward for Meldas CNC systems and is today legacy / discontinued: it has been superseded by the MDS-C1, MDS-D and MDS-R series. Availability is limited to the used and surplus market and to specialist repair services.

Main Technical Specifications

Spindle Drive Amplifier – MITSUBISHI MDS-B-SP-260

The MDS-B-SP-260 is a spindle drive amplifier (“Spindle Drive Amplifier”) belonging to the MDS-B series by Mitsubishi Electric, designed for speed and position control of the spindle motor in CNC machining centres and lathes equipped with Mitsubishi M700, M500 CNC controllers and compatible MDS-B systems. The unit belongs to the SP (Spindle) subfamily of the MDS-B series, with an rated output of approximately ~26 kW; it manages the current and speed regulation loops of the spindle motor via a high-speed serial bus to the CNC unit. Compatible with Mitsubishi SJ series spindle motors; accepts tachogenerator or motor-integrated encoder feedback.

The spindle drive amplifier is the power and regulation unit that receives the speed reference from the CNC and supplies the spindle motor with the current and voltage required to maintain stable rotation during machining operations. In the event of failure the spindle becomes uncontrollable: the machining cycle cannot be started and the machine stops completely. Its integrity is therefore a prerequisite for any milling, turning or drilling operation.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems and drives for machine tools, with a consolidated presence in the sector since the 1980s. The MDS-B series has been progressively superseded by the MDS-C1 series and subsequently by the MDS-D / MDS-EX series; MDS-B products are therefore to be considered legacy / discontinued, available only as used parts, NOS surplus or through specialist repair services.

Main Technical Specifications

Spindle Drive – MITSUBISHI MDS-B-SP-110

The MDS-B-SP-110 is an AC spindle drive amplifier (“Spindle Amplifier Unit”) manufactured by Mitsubishi Electric, belonging to the MDS-B family (Mitsubishi Drive System – Series B). The unit is documented for use in machining centres, milling machines, and CNC lathes equipped with MELDAS numerical control (series M64, M65, M70). The suffix SP identifies the spindle drive variant, while the number 110 denotes the 11 kW power class. Communication with the CNC unit is achieved via the MDS serial bus (fibre optic or dedicated shielded cable); the output is a three-phase variable-frequency voltage to a compatible spindle motor from the SJ or HA series.

The spindle drive is the component that converts mains electrical power into a variable-frequency, variable-voltage output to precisely regulate spindle motor speed and torque according to the CNC reference. Without it the spindle cannot operate in any mode (speed, orientation, C-axis): a failure causes immediate machine stop and makes any machining operation impossible, with severe impact on production.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation, CNC systems, and machine tool drives, headquartered in Tokyo. The MDS-B series has been progressively replaced by the MDS-C1, MDS-D, and MDS-EJ families. All MDS-B products are legacy / discontinued: available only as used parts, NOS (new old stock/surplus), or through specialist repair services.

Main Technical Specifications

Regenerative Converter Power Supply – MITSUBISHI MDS-B-CVE-185

The MDS-B-CVE-185 is a regenerative converter power supply (“Regenerative Converter Power Supply”) manufactured by Mitsubishi Electric, the central power unit of the MDS-B drive system for CNC machining centres and lathes. The unit converts three-phase mains voltage to a DC bus voltage, cascading power to the connected axis drive units (MDS-B-V) and spindle drive units (MDS-B-SP) on the same bus. The designation CVE identifies the converter function with regenerative energy recovery; the number 185 denotes the rated DC bus current in Amperes. The unit is documented in control architectures based on the Mitsubishi M64, M700 and C70 CNC controllers. No hardware revisions or standard included accessories are known.

The regenerative converter power supply is the primary power unit of the entire drive system: without it, no axis or spindle can receive power, bringing the machine to a complete standstill. The regenerative function also returns the kinetic energy accumulated during deceleration back to the mains, reducing peak current draw and protecting the DC bus from dangerous overvoltages.

Mitsubishi Electric is one of the leading divisions of the Mitsubishi group, active in CNC and industrial automation since the 1970s. The MDS-B series represents a well-established generation of digital drives, now technically superseded by the MDS-C1, MDS-D and MDS-EJ systems. All MDS-B products are legacy / discontinued: supply is exclusively through surplus, used stock, or specialist repair.

Main Technical Specifications

Dual-Axis Servo Drive – Mitsubishi MDS-A-V2-3535

The MDS-A-V2-3535 is a dual-axis digital AC servo amplifier (“Dual-Axis AC Servo Amplifier”) manufactured by MITSUBISHI Electric, belonging to the MDS-A series (Mitsubishi Drive System – Series A). The designation 3535 denotes a rated output current of 35 A per axis (2 axes). The unit is designed for Mitsubishi CNC systems of the M64, M65, M700 series and compatibles, communicating with the CNC controller via the proprietary SSCNET serial bus (Serial Servo Communication Network). It integrates two independent servo drive channels in a single rack, reducing cabinet space compared to two separate modules. Feedback is provided by serial/absolute encoders from Mitsubishi HF, HC and HA series servo motors.

The MDS-A-V2-3535 servo drive is the power module that converts position and speed commands from the CNC into three-phase current for the machine axis servo motors, closing the position, speed and current loops in real time. It ensures the positioning accuracy and dynamic response essential during machining operations. A failure of this module disables both served axes, completely halting the machine and requiring urgent replacement or repair to restore production.

MITSUBISHI Electric is one of the world’s leading manufacturers of CNC systems, servo drives and motors for machine tools, with over 50 years of experience in industrial automation and motion control. The MDS-A series has been progressively superseded by the newer MDS-B, MDS-C, MDS-D and MDS-EJ series; the MDS-A-V2-3535 is therefore legacy / discontinued, available only as used, surplus or through specialist repair services.

Main Technical Specifications

Dual-Axis Servo Drive – MITSUBISHI MDS-A-V2-1010

The MDS-A-V2-1010 is a dual-axis velocity servo amplifier (“Dual-Axis Servo Amplifier”) manufactured by Mitsubishi Electric, belonging to the MDS-A series for MELDAS CNC systems. It independently controls two servo axes at an output current of 10 A per axis (2 × 10 A), receiving position and velocity commands from the CNC unit via a proprietary high-speed serial bus. The designation V2 indicates the dual-axis type (“two-axis velocity”) while the suffix 1010 identifies the rated current capacity per axis. The unit is compatible with MELDAS M6, M50, M60, M64 CNC controllers and related systems, documented on CNC milling machines, vertical and horizontal machining centres, and CNC lathes from various OEM builders.

The dual-axis servo drive is the core of the machine axis motion system: it receives position and velocity references from the CNC via serial bus, closes the feedback loop through the encoder signals of the connected motors, and generates the current required to move linear or rotary axes with high precision and dynamics. A failure of the MDS-A-V2-1010 disables control of one or both managed axes, making the machine completely inoperable and causing an immediate production halt.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, servo drives, and inverters for industrial automation, with decades of presence in metal cutting and power electronics. Products in the MDS-A series were widely adopted by OEM machine tool builders from the 1990s through the early 2000s, progressively superseded by the MDS-B, MDS-C, and MDS-D series. This series is now legacy / discontinued: available exclusively as used, NOS, or through specialist repair workshops.

Main Technical Specifications

Spindle Drive Unit – Mitsubishi MDS-A-SP-110

The MDS-A-SP-110 is an AC spindle drive unit (“Spindle Drive Unit”) from Mitsubishi Electric’s MDS-A series, designed to drive AC spindle motors on machining centres and turning centres equipped with Mitsubishi CNC controllers (series M64, M65, M700). The “SP” designation identifies the spindle drive family within the MDS-A series, while “110” denotes the 11 kW rated output power class. Communication with the CNC is handled via SSCNET (Servo System Controller NETwork), Mitsubishi Electric’s proprietary high-speed serial network. This module belongs to the first generation of the Mitsubishi MDS drive family, now superseded by the MDS-B, MDS-C, MDS-D and MDS-E series.

The spindle drive is the heart of spindle control: it receives the speed reference from the CNC via SSCNET and regulates in real time the torque and speed of the AC spindle motor, managing both speed-mode operation (milling, turning) and angular positioning for spindle orientation and rigid tapping. A failure of the MDS-A-SP-110 renders the spindle completely uncontrollable, causing immediate machine downtime and making any machining operation impossible.

Mitsubishi Electric is one of Japan’s leading industrial electronics and automation multinationals, with an established CNC and drives division active since the 1970s. The MDS-A series is legacy / discontinued: direct manufacturer support has ended and spare parts are available exclusively as used, surplus, or through specialist repair services.

Main Technical Specifications

FREQROL-Z200 Variable Frequency Drive (Inverter) – Mitsubishi FR-Z220-3.7K

The FR-Z220-3.7K is a PWM variable frequency drive (“AC Inverter Drive” / “Variable Frequency Drive”) from the FREQROL-Z200 series, manufactured by MITSUBISHI Electric, rated at 3.7 kW in the 200–230 V AC three-phase voltage class. The unit is documented on CNC machining centres, milling machines and lathes equipped with Mitsubishi drives from the 1980s–1990s. It controls the connected three-phase induction motor via V/f (volts-per-hertz) regulation, varying output frequency and voltage to achieve continuous speed adjustment. Some variants within the Z200 series include a dynamic braking resistor terminal and analogue speed reference input on the control terminal block.

The variable frequency drive converts mains AC power into a three-phase, variable-frequency supply, enabling continuous speed control of the connected induction motor (spindle or feed axis). Without this unit the motor would run only at fixed mains frequency, making any CNC speed control impossible: failure typically presents as an immediate spindle stop, drive fault alarms on the operator panel, or failure to reach the programmed speed — halting production instantly.

MITSUBISHI Electric is one of the world’s leading manufacturers of industrial automation and motion control; its Factory Automation division has produced the FREQROL inverter family for over four decades across continuously evolving series (FR-A, FR-E, FR-F, FR-D, FR-CS). The FREQROL-Z200 series belongs to the 1980s–1990s generation and is legacy / discontinued: official support has ended and spare parts are available only as used, NOS surplus, or through specialist repair services.

Main Technical Specifications

Freqrol Inverter 0.75 kW – MITSUBISHI FR-Z024-0.75K

The FR-Z024-0.75K is a variable frequency drive (inverter) from the FREQROL FR-Z series (“Frequency Inverter” / “Variable Frequency Drive”) manufactured by Mitsubishi Electric, rated for 0.75 kW three-phase AC induction motors. The unit belongs to the 200–240 V voltage class and is documented for applications in CNC machine tools and industrial equipment requiring electronic speed control of AC motors. No accessory revisions or documented variants are known; the part number identifies a single nameplate configuration.

The inverter converts fixed-frequency mains power into a variable-frequency, variable-voltage three-phase output, enabling stepless speed control of an AC induction motor. On a CNC machine tool it typically drives auxiliary spindles, coolant pumps, hydraulic units, or other accessory drives. Inverter failure immediately stops the driven device, interrupting the machining cycle or disabling critical machine functions.

Mitsubishi Electric is a Japanese multinational of the Mitsubishi Group and one of the world’s leading industrial automation manufacturers. Its Factory Automation division produces FREQROL inverters, MELDAS / MELDASMAGIC CNC systems, and MELSERVO servo drives. The FR-Z series is legacy / discontinued, superseded by the more modern FR-E, FR-A, and FR-F series; spares are available only as used, NOS surplus, or through specialist repair.

Main Technical Specifications

FREQROL Variable Frequency Drive 7.5 kW – MITSUBISHI FR-SGJ-2-7.5K

The FR-SGJ-2-7.5K is a variable frequency drive (“AC Inverter Drive”) from the FREQROL SGJ series manufactured by Mitsubishi Electric, rated at 7.5 kW in the 200 V three-phase voltage class. Documented for use on CNC machine tools and industrial automation systems requiring variable-speed control of three-phase AC motors. The manufacturer’s part number encodes the series (“SGJ”), the voltage class (“2” = 200 V), and the power rating (“7.5K” = 7.5 kW). This product belongs to the legacy generation of Mitsubishi Electric’s FREQROL line, predecessor to the current FR-A, FR-F and FR-E series.

The variable frequency drive controls the speed of a three-phase AC motor by continuously modulating the output frequency and voltage according to the reference signal from the CNC or machine PLC. On a machining centre or CNC lathe it typically governs the spindle or auxiliary axes, providing controlled acceleration and deceleration, constant torque across the full speed range, and protection of the motor against overcurrent and overheating. A drive failure causes the immediate stop of the affected motor, rendering the machine completely inoperable until the unit is replaced or repaired.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation, motion control and electric drives. The FREQROL® line has been active since 1965 as one of the first industrial variable-frequency drive series for AC motors, spanning dozens of product families over the decades. All products in the FR-SGJ family are legacy / discontinued: available exclusively as used, NOS (new old stock), or through specialist repair centres.

Main Technical Specifications

AC Spindle Drive 18.5 kW – Mitsubishi FR-SF-2-18.5K

The FR-SF-2-18.5K is an AC spindle drive (“AC Spindle Drive”) rated at 18.5 kW, 200 V class, manufactured by Mitsubishi Electric in the FR-SF series (FREQROL-SF). Designed specifically for AC spindle motor control in CNC machine tools — machining centres, CNC lathes, milling machines — it handles spindle speed and torque regulation over a wide speed range with high precision. The unit is compatible with Mitsubishi MELDAS CNC systems and third-party controllers via analogue (±10 V) and serial interfaces; it also supports spindle orientation for automatic tool changes and drilling cycles.

The spindle drive converts fixed-frequency three-phase mains power into variable voltage and frequency to drive the spindle motor at the speed commanded by the CNC: it interprets the analogue or digital speed reference and maintains stable, precise rotation under varying cutting loads. If the unit fails, the spindle stops or loses speed control, making any cutting operation impossible and risking damage to the workpiece or the machine itself.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation systems, inverters and CNC controllers, with roots in the Mitsubishi group dating back to 1921; the FREQROL inverter line is globally distributed and is a recognised standard in machine tool automation. The FR-SF series is legacy / discontinued: superseded by newer series (FR-SF-4R, FR-A800 etc.), it is available on the market only as used, NOS surplus or through specialist repair services.

Main Technical Specifications

CNC Spindle Inverter Drive – MITSUBISHI FR-SF-2-11KP

The FR-SF-2-11KP is an 11 kW variable-frequency spindle inverter drive (“Spindle Inverter Drive”) manufactured by Mitsubishi Electric, belonging to the FR-SF2 series (Freqrol Spindle, second generation). It is a variable-frequency drive designed specifically for vector control of spindle motors in CNC machine tools: vertical and horizontal machining centres, CNC milling machines and CNC lathes. It supports three-phase input voltage in the 200 V or 400 V class (depending on variant) and delivers three-phase variable-frequency output up to 400 Hz, providing the wide speed range demanded by high-speed spindle applications.

The spindle inverter is the heart of the spindle drive system: it receives the speed reference from the CNC controller and precisely regulates the frequency and voltage applied to the motor, ensuring stable rotation, constant torque and dynamic response during machining. A failure of the FR-SF-2-11KP renders the spindle completely inoperative — no rotation is possible — causing an immediate machine stop and total production shutdown.

Mitsubishi Electric Corporation is one of Japan’s leading industrial groups in industrial automation, power electronics and motion control. The FR (Freqrol) range covers the company’s flagship inverter family; the FR-SF and FR-SF2 series were developed specifically for high-performance CNC spindle applications. Models in this generation are considered legacy / discontinued: superseded by newer series (FR-A800, FR-F800), they are available only as used, surplus or through specialist repair services.

Main Technical Specifications

Spindle Drive Inverter 15 kW – MITSUBISHI FR-SE-2-15K

The FR-SE-2-15K is a 15 kW, 200 V class spindle drive inverter (“Spindle Drive Inverter”) from the FR-SE series of Mitsubishi Electric’s Freqrol® range. The part designation FR-SE-2-15K identifies the SE family (Spindle Edition), the 200 V three-phase supply class (digit “2”), and the 15 kW rated output power. The unit is documented as a spindle control component for machining centres, milling machines, and CNC lathes equipped with the Mitsubishi MELDAS control system or compatible CNC platforms. It converts the three-phase mains supply into variable-frequency three-phase output to drive the spindle motor, accepts an analogue speed reference from the CNC, and manages encoder or tachogenerator feedback to close the speed loop.

The spindle drive inverter is the electronic regulator that imposes and maintains the tool rotation speed throughout the machining cycle: it receives the speed setpoint from the CNC, processes the spindle encoder feedback, and generates the PWM-modulated three-phase voltage that powers the motor. Without it the spindle cannot start, hold cutting speed under load, or decelerate in a controlled manner; any failure causes an immediate machine stop and makes all cutting operations impossible.

Mitsubishi Electric is one of the world’s largest electrical engineering and industrial automation groups, founded in 1921. Its FA (Factory Automation) division manufactures Freqrol® inverters, MELSERVO® servo drives, and MELDAS® CNC systems widely used across the machine tool industry. Products in the FR-SE spindle drive series are legacy / discontinued, superseded by the FR-A700, FR-A800 generations and by the integrated spindle amplifier modules of current-generation CNC systems; available only as used, new-old-stock, or through specialist repair services.

Main Technical Specifications

Three-Phase Vector Inverter 5.5 kW – MITSUBISHI FR-A520-5.5K

The FR-A520-5.5K is a three-phase 5.5 kW vector frequency inverter (“Variable Frequency Drive”, 200 V voltage class) manufactured by Mitsubishi Electric, belonging to the FREQROL-A500 series (FR-A520 line). Designed for industrial applications and CNC machine tools, it converts three-phase mains voltage into variable-frequency AC output (0.5–400 Hz) using advanced magnetic flux vector control. It supports V/f and vector control modes (sensorless and encoder-feedback); it features analogue reference inputs for speed control and a serial interface for communication with the CNC system.

The frequency inverter is the core of the AC induction motor drive system: it converts fixed-frequency mains voltage into variable voltage and frequency, enabling precise control of motor speed and torque. In the event of failure, the controlled motor becomes unmanageable, causing the immediate shutdown of the axis or spindle and rendering the machine completely inoperable until the component is replaced or repaired.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation systems, renowned for the reliability and longevity of its FREQROL® inverter range. The A500 series is legacy / discontinued, superseded by the A700 and A800 series; spare parts are available exclusively as used, surplus, or through specialist repair services.

Main Technical Specifications

FREQROL-A200 AC Inverter Drive 7.5 kW – Mitsubishi FR-A220E-7.5K

The FR-A220E-7.5K is a three-phase AC variable frequency drive (“AC Variable Frequency Drive”) rated at 7.5 kW, belonging to the FREQROL-A200 series by Mitsubishi Electric. Designed for speed control of three-phase asynchronous motors in industrial and CNC machine tool applications, the FR-A220E-7.5K belongs to the 200 V voltage class (input 3~ 200–240 V AC, 50/60 Hz) and delivers a three-phase output at variable frequency and amplitude, typically between 0.5 and 400 Hz. The unit integrates V/f control logic and features digital and analogue I/O for interfacing with the CNC or machine PLC. It is available in multiple hardware revisions; some versions support the vector control option with encoder feedback (PG option).

The inverter converts the mains supply into a three-phase voltage with variable frequency and amplitude, enabling precise motor speed control. On a machine tool it manages spindle or auxiliary axis acceleration and deceleration ramps, provides thermal and overcurrent motor protection, and maintains stable rotation under varying load. A drive failure causes the immediate stop of the controlled spindle or axis, rendering the machine inoperable until the unit is replaced or repaired.

Mitsubishi Electric is one of the world’s leading manufacturers of industrial automation, motion control and power electronics. The FREQROL brand covers Mitsubishi’s inverter range, in production since the 1980s and continuously updated with the current FR-F800, FR-E800 and FR-A800 series. The FREQROL-A200 series (“FR-A220E”) is legacy / discontinued: no longer manufactured or officially supported, it is available only as used/surplus stock or through specialist repair services.

Main Technical Specifications

Single-Axis Digital AC Servo Amplifier – MITSUBISHI MDS-B-V1-35

The MDS-B-V1-35 is a single-axis digital AC servo amplifier (“Single Axis AC Servo Amplifier”) manufactured by Mitsubishi Electric, belonging to the MDS-B series. It is documented as a component of Mitsubishi CNC systems equipped with MELDAS 500/600 control units, installed in vertical machining centres and CNC lathes. It manages the position, speed and torque regulation loops of a single servo axis, communicating with the CNC unit via the high-speed serial bus SSCNET. Compatible with HC and HA series AC brushless servo motors from Mitsubishi Electric; peak output current is 35 A.

The servo amplifier is the core of axis control: it receives position and speed commands from the CNC unit and, comparing them with the motor encoder feedback, generates the current required to move the axis with maximum precision and repeatability. A drive failure renders the affected axis inoperable and triggers a machine alarm: production stops until the drive is repaired or replaced with a working equivalent unit.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, servo amplifiers and motors for machine tools, with decades of experience in industrial motion control. The MDS-B series has been superseded by the later generations MDS-C, MDS-D and MDS-E; all MDS-B family products are therefore legacy / discontinued and available only as used stock, NOS (New Old Stock) or through specialist repair services.

Main Technical Specifications

DC Bus Converter / Power Supply Unit – MITSUBISHI MDS-B-CV-300

The MDS-B-CV-300 is a DC bus converter unit (“Converter Unit”) from the MDS-B series by Mitsubishi Electric, used in Mitsubishi CNC drive systems (series M64, M700, M70, E60, E68 and associated machines). The unit rectifies and filters the three-phase mains input voltage to generate the DC bus that simultaneously powers all MDS-B servo and spindle modules installed in the cabinet. The suffix 300 indicates a rated capacity of approximately 30 kVA, placing this unit in the upper-mid range of the product line. No standard additional accessories are included; hardware revisions may differ in signal connector layout.

The DC bus converter is the backbone of the entire drive system power supply: without a stable bus voltage, neither the servo axes nor the spindle can be controlled. A failure of this unit completely shuts down the machine tool; incorrect or unstable bus voltages cause following errors, over/under-voltage alarms on the axes and, in the worst cases, cascading damage to the connected servo modules.

Mitsubishi Electric is the electrical and industrial automation division of the Japanese Mitsubishi conglomerate, active in the CNC sector with the MELSERVO and Mitsubishi CNC systems (M, E, C series). The MDS-B series is a previous-generation servo/spindle drive platform, now legacy / discontinued and superseded by the MDS-C1, MDS-D and MDS-EJ series; official support is limited and sourcing relies mainly on used stock or specialist repair services.

Main Technical Specifications

Power Supply Converter Module – MITSUBISHI MDS-C1-CV-150

The MDS-C1-CV-150 is a power supply converter module (“Power Supply Converter Unit”) manufactured by Mitsubishi Electric, belonging to the MDS-C1 servo drive family for MELDAS CNC systems (series M64, M65, M66). The module operates as an AC–DC rectifier/converter: it receives three-phase AC mains power and generates a shared DC bus voltage for the MDS-C1-V axis servo drives and MDS-C1-SP spindle drives connected in cascade on the same bus. It incorporates regenerative braking circuits to return energy to the supply during deceleration phases. The numeric suffix 150 denotes the nominal power class of the converter.

The power supply converter unit is the heart of the drive system power architecture: without it, no servo axis or spindle controlled by the MDS-C1 family can be energised. A converter failure causes the immediate and total shutdown of the machine tool: all axes and the spindle lose DC bus power and the CNC immediately raises a power supply alarm. Its functional integrity is therefore an absolute prerequisite for commissioning and normal machining operation.

Mitsubishi Electric is one of the world’s leading manufacturers of CNC systems, servo drives, and industrial automation components, present in the sector for over half a century through its MELDAS product line. The MDS-C1 series is a legacy / discontinued family: it has been progressively replaced by the MDS-D, MDS-EJ, and MDS-E series, which remain in active production and support.

Main Technical Specifications

Variable Frequency Drive 11 kW – Mitsubishi FR-SE-2-11K-A

The FR-SE-2-11K-A is an 11 kW variable frequency drive (“Variable Frequency Drive / Inverter”) manufactured by Mitsubishi Electric, belonging to the FREQROL FR-SE series. The voltage class is 200 V three-phase, with a rated output power of 11 kW; the suffix “A” denotes the product revision. This drive is used for AC motor speed control on CNC machine tools, machining centres, and industrial automation systems; it may control the main spindle or auxiliary axes depending on the machine configuration.

The variable frequency drive converts fixed-frequency mains voltage into a three-phase output with variable frequency and amplitude, enabling precise speed and torque control of AC motors. In a CNC machine tool, failure of this component results in the immediate stoppage of the spindle or controlled axis, making it impossible to continue machining and potentially resulting in loss of the workpiece in progress; it is therefore a critical component for production continuity.

Mitsubishi Electric is a Japanese multinational corporation founded in 1921, a world leader in the production of industrial automation systems, inverters, servo drives, and CNC systems. The FREQROL FR-SE series is a general-purpose inverter line produced during the 1990s–2000s; all models in this family are legacy / discontinued and available exclusively as used, surplus, or through specialist repair services.

Main Technical Specifications

PC-98 Industrial Computer – NEC PC-9801UF

The PC-9801UF is an industrial personal computer with PC-98 architecture (“PC-9801 series industrial computer”) manufactured by NEC (Nippon Electric Company), belonging to the PC-9800 family — the dominant PC platform in Japan from 1982 to 1997. The unit is based on NEC’s proprietary C-bus expansion bus (incompatible with ISA/IBM standards) and is documented as a control unit in numerous CNC systems and machine tools of Japanese manufacture from the 1980s–90s. It operates under MS-DOS for PC-98 (or NEC-DOS), running the machine tool’s proprietary software directly on this dedicated hardware platform.

The PC-9801UF acts as the central processing unit of the CNC control system: it executes the axis management software, interprets the ISO part program, and coordinates all machine subsystems (drives, internal PLC, I/O interfaces). In the event of failure the entire production line stops; replacement requires an identical or compatible unit, as the application software is bound to the PC-98 architecture and cannot be ported to standard personal computers.

NEC (Nippon Electric Company), founded in 1899, is one of Japan’s leading groups in electronics and computing. The PC-9800 line was introduced in 1982 and dominated the Japanese computer market for over a decade, becoming the de facto standard in industrial applications and CNC systems in Japan. All models in the PC-9801 series are legacy / discontinued: available exclusively as used units, NOS surplus, or through specialist repair services.

Main Technical Specifications

Switching Power Supply 24 VDC 150 W – NEMIC-LAMBDA RWS-150A-24/A

The RWS-150A-24/A is an industrial switching power supply (“Switching Power Supply”) rated at 150 W with a 24 VDC output, manufactured by NEMIC-LAMBDA (now TDK-Lambda). Designed for industrial applications, the module is documented as a component of CNC systems and industrial automation equipment requiring stable 24 V power for logic circuits, digital I/O and actuators. It accepts universal AC input (typically 85–264 V AC, 47–63 Hz) and provides regulated DC output with integrated overvoltage, overcurrent and short-circuit protection. The “/A” suffix denotes a specific model revision.

The switching power supply is the component that converts mains AC voltage into the stable DC voltage used by all logic circuits, I/O modules and CNC controllers in the system. Its uninterrupted operation is critical: a failure or out-of-tolerance output causes anomalies in control modules, axis position loss, uncontrolled CNC resets or damage to downstream 24 V components. The quality of its regulation directly determines the noise immunity of the entire machine.

NEMIC-LAMBDA was a Japanese manufacturer of high-quality industrial switching power supplies, formed by the merger of NEMIC Corporation and Lambda Electronics. The brand was acquired and integrated into the TDK Corporation group, and products continue today under the TDK-Lambda brand. Modules of the RWS series are legacy / discontinued: still widely available as used and NOS (New Old Stock) on the industrial spare parts market.

Main Technical Specifications

Switching Power Supply 24 V / 50 W – NEMIC-LAMBDA RWS-50A-24

The RWS-50A-24 is an industrial 24 V / 50 W switching power supply (“Switching Power Supply”) manufactured by NEMIC-LAMBDA, belonging to the RWS50A series. It delivers a regulated 24 V DC output with a maximum current of 2.1 A from a universal AC input (85–264 V AC, 47–63 Hz). Designed for DIN-rail or panel mounting; equipped with integrated protections against overvoltage, overcurrent, and short circuit. Widely documented as an auxiliary power supply in CNC systems, machining centers, and industrial equipment from the 1990s–2000s.

The switching power supply is the component that converts mains voltage into a stable, regulated DC voltage to power the control logic, I/O modules, operator panels, and auxiliary circuits of the CNC system. A power supply failure immediately cuts power to the control board or I/O subsystem, causing a machine stop and system alarm; rapid replacement is essential to restore productivity.

NEMIC-LAMBDA was a Japanese industrial power supply manufacturer, formed from the merger of NEMIC Corporation and Lambda Electronics Japan. Acquired by TDK Corporation, it now operates as TDK-Lambda, one of the world’s leading manufacturers of industrial and medical power supplies. Products in the RWS50A series are to be considered legacy / discontinued under the NEMIC-LAMBDA brand; equivalent or replacement units are available in the TDK-Lambda catalogue.

Main Technical Specifications

Switching Power Supply – NEMIC-LAMBDA PM11A

The PM11A is an industrial switching power supply module (“Switching Power Supply Module”) manufactured by NEMIC-LAMBDA, used in CNC machine tool control systems. The unit provides regulated and stabilised DC voltages to the logic and control boards of the CNC system, supplying both the digital and analogue circuitry of the control panel. The PM11A belongs to the “PM” (Power Module) series by NEMIC-LAMBDA, designed for industrial environments with high stability and filtering requirements. The product may exist in multiple hardware revisions; original versions feature screw terminal blocks with direct cabinet wiring.

The power supply is the critical component that delivers stable power to all electronic boards of the CNC system: CPU, I/O, operator panel, and communication interfaces. A power supply failure causes the immediate shutdown of all control circuits, rendering the machine completely inoperable; out-of-tolerance output voltages may also cause cascade damage to the powered boards, significantly multiplying the overall restoration costs.

NEMIC-LAMBDA was formed from the merger of Nemic Electric Co. (Japan) and Lambda Electronics (USA), two established manufacturers of high-reliability industrial power supplies. The group was subsequently acquired by TDK Corporation to form TDK-Lambda, today one of the world’s leading manufacturers of power supplies for industrial and medical applications. All products in the PM series are legacy / discontinued: available exclusively as used components, surplus stock, or through specialist repair services.

Main Technical Specifications
